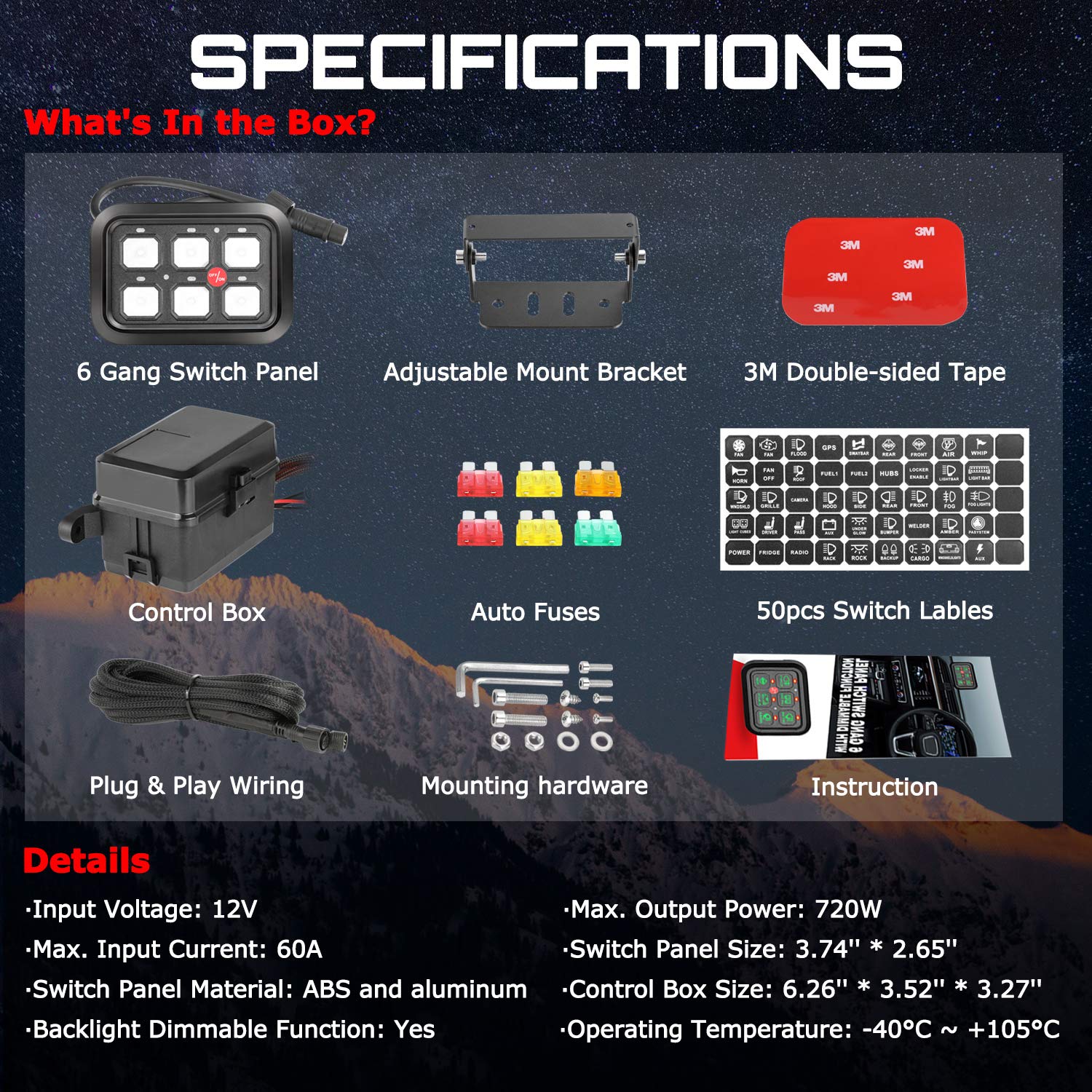

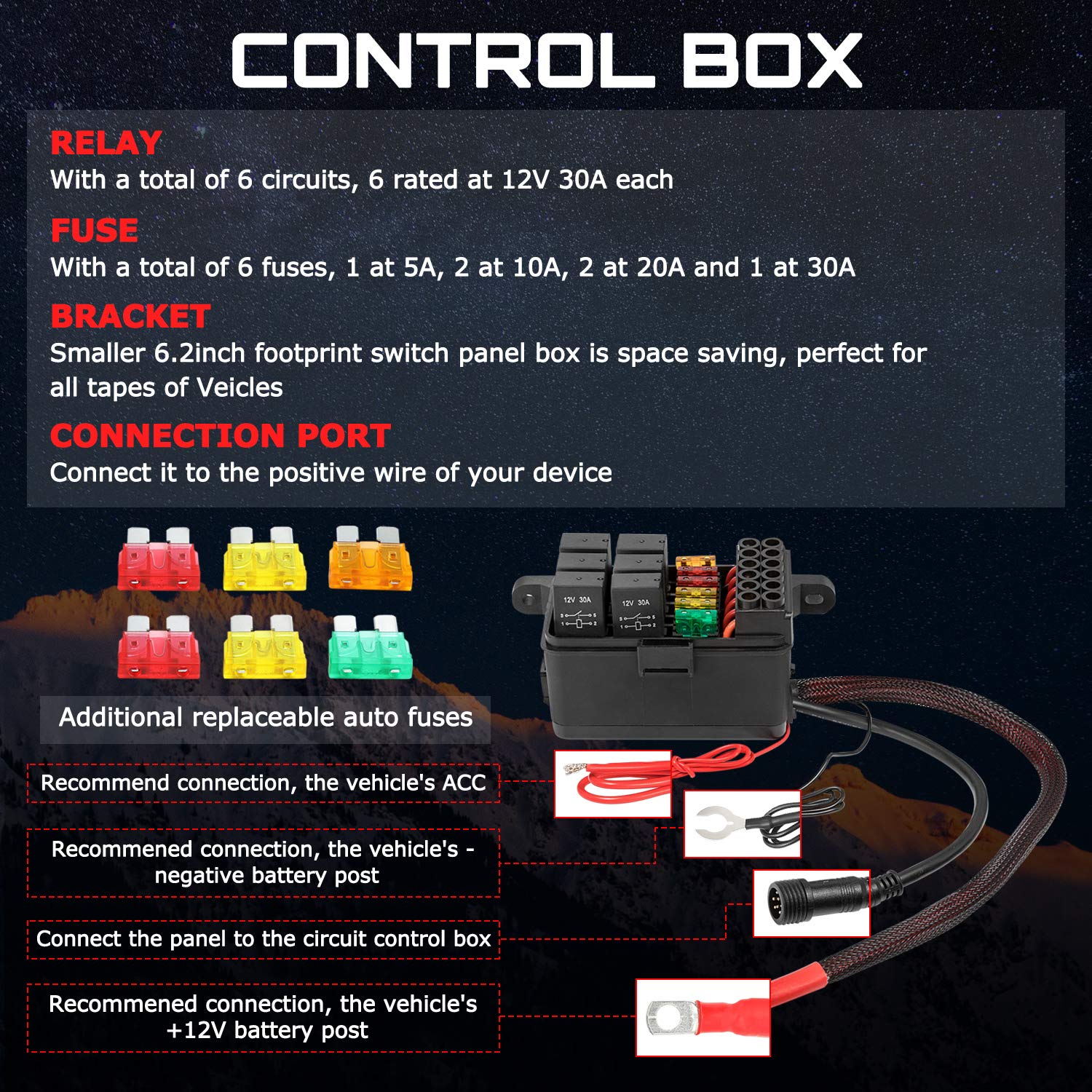

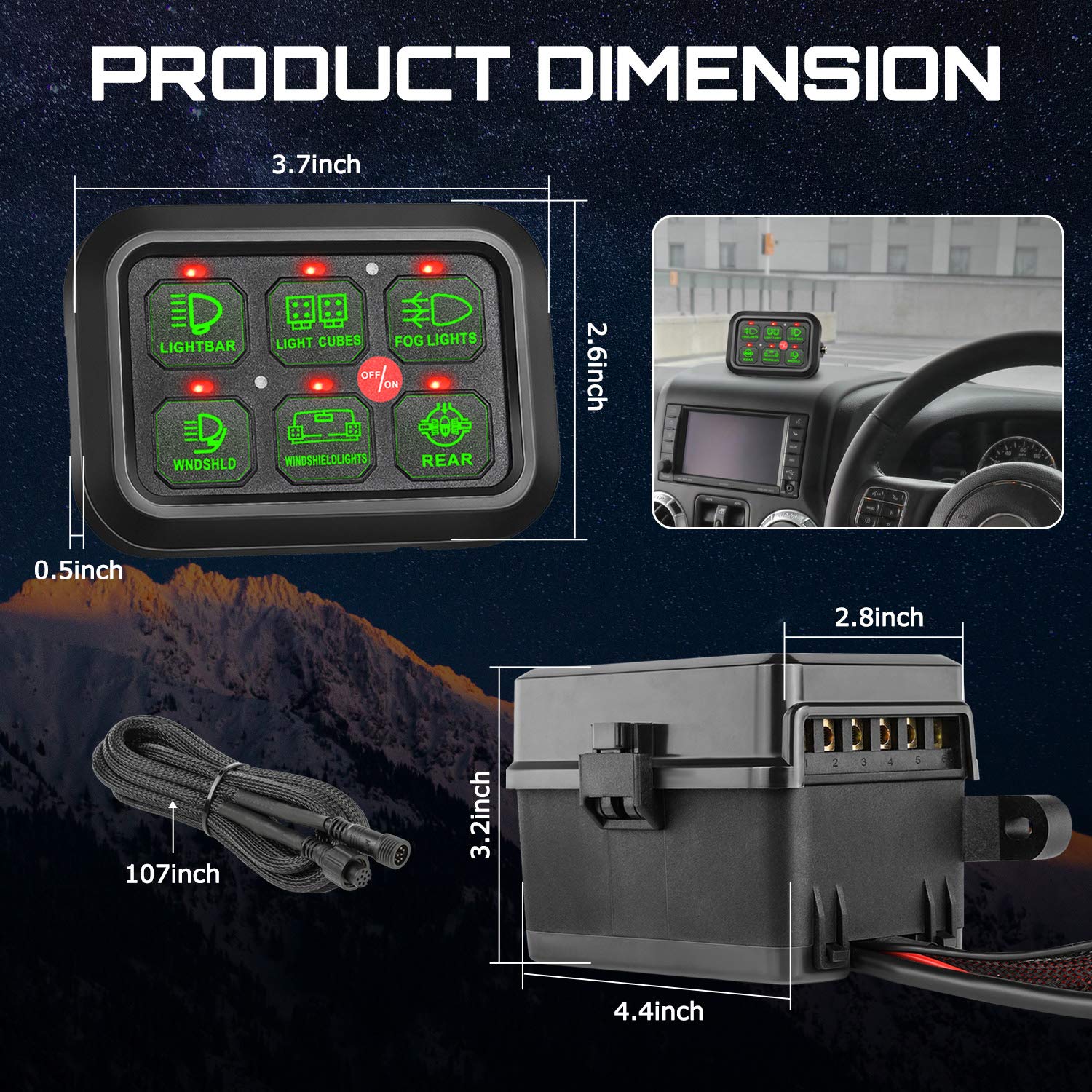

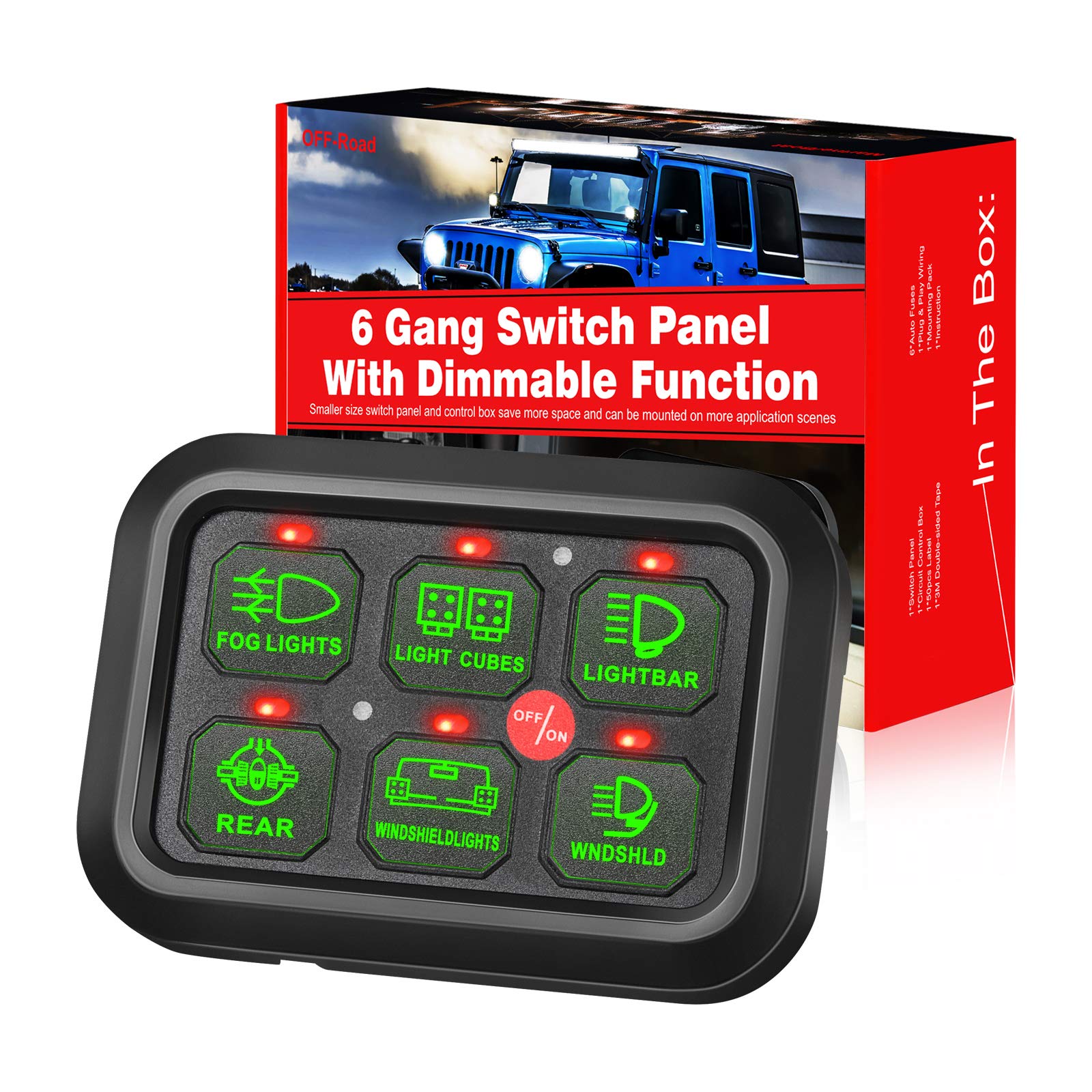

About us OFFROADTOWN is dedicated to enable the best user experience by providing high efficient and easy-to install LED lghting solutions. Universal 6 Gang Switch Panel System Backlit Brightness Dimmable / Memory Setting Automatic Dimmable 6 gang switch panel given the massive space saving with smaller control box. Universal fit for Off-road, Powersports, Marine, Trucks, SUV, UTV, ATV, Boat, Yachat, Trailers, Heavy-duty Machines, etc. This is the best way to control all wiring under your hood, just add a single panel to control all the LED light and device (light bar, pods, strobes, cargo lights, ect) at the same time. Input Voltage: DC 12V Maximum Power: 720W Maximum Current: 60A Panel Size: 3.74*2.65 inch Control Box Size: 6.26*3.52*3.27 inch Panel Material: High quality ABS and aluminum Operating Temperature: - 40° C ~ + 105° C 6 Circuits: 1 rated at 5A max each, 2 rated at 10A max each, 2 rated at 20A max each, 1 rated at 30A max each PRODUCT FEATURE Automatic Dimmable Function The super compact automatic dimmable switch panel built with IC encapsulation, stable and solid power on/off backlight color. Backlight color in green, power-on indicate light color in red. Definitely the best solution to manage all the wiring cables which make your cab look super clean and tidy. DIY Lables 50pcs standard switch reusable labels fulfill all of your needs. sticker customization is acceptable on 5pcs blank label. Good sealing performance of the panel buttons, dust and dirt resistance, it can be attached easily and will not fall off. 2 Easy Mounting Ways Two different mounting options provided for switch panel. Adjustable mounting brackets and 3M double-sided tape. No need to cut a big hole to install the panel. INSTALLATION GUIDE Allowing you control up to 6 LED lights & devices at the same time. The MAX Current Per CircuIt - Circuit 1: 30A, Circuit 2: 20A , Circuit 3: 20A, Circuit 4: 10A, Circuit 5: 10A, Circuit 6: 5A (Please refer instruction for details) 18 AWG Wire(A) - Recommend connection, vehicle's ACC. 18 AWG Wire(B) - Recommend connection, vehicle's negativa battery post. 22 AWG Plug & Play Wire(C) - Connect the panel to the circuit control box. Wire Harness(D) - Recommend connection, vehicle's +12V battery post. SPECIAL DESIGN 1. Backlit Automatic Dimmable Function -This Automatic Dimmable backlit brightness dimmer function is designed for better user experience and to ensure driving safety · On the road or other bright places, switch panel will be brighter, so you can easily control it. · In the tunnel or other dark places, switch panel will dim, it will not blind you. 2. Memory Settings - Start from your last settings. Backlit Automatic Dimmable Function WIDE APPLICATION INSTALLATION STEPS · Park the vehicle on a smooth level surface · Mount the switch panel screen with brackets onto the chosen position of the driver's cab · Open the vehicle front cover and mount with the Control Box · Connect LED lights or any other electrical needed devices to the Control Box · Connect Control Box with Switch Panel Screen · Connect the Control Box with power source / battery of the vehicle BOX COME WITH 1· 6 Gang Switch Panel Automatic Dimmable 2· Circuit control box (6pcs fuses inside) 3· 50pcs reusable switch labels 4· Long and durable nylon wiring harnes 5· 3M double-sided tape and 6pcs replaceable auto fuses 6· Switch panel adjustable mounting brackets 7· Screw sets and User manual LED Pods Round Offroad Lights Flush Round Offroad Lights LED Chase Light Bar LED Chase Light Bar Buying Options Buying Options Buying Options Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 819 3.2 out of 5 stars 4 1.0 out of 5 stars 1 4.0 out of 5 stars 75 4.0 out of 5 stars 75 Price $31.49$31.49 — no data — no data $79.99$79.99 $99.99$99.99 SIZE 3 Inch 5 Inch 5 Inch 20 Inch 37 Inch FEATURE Spot Beam Combo Beam Flood Beam 8 Strobes,1 Solid light 8 Strobes,1 Solid light MATERIAL Aluminum Aluminum Aluminum Aluminum Aluminum WATERPROOF IP68 IP68 IP68 IP68 IP68
