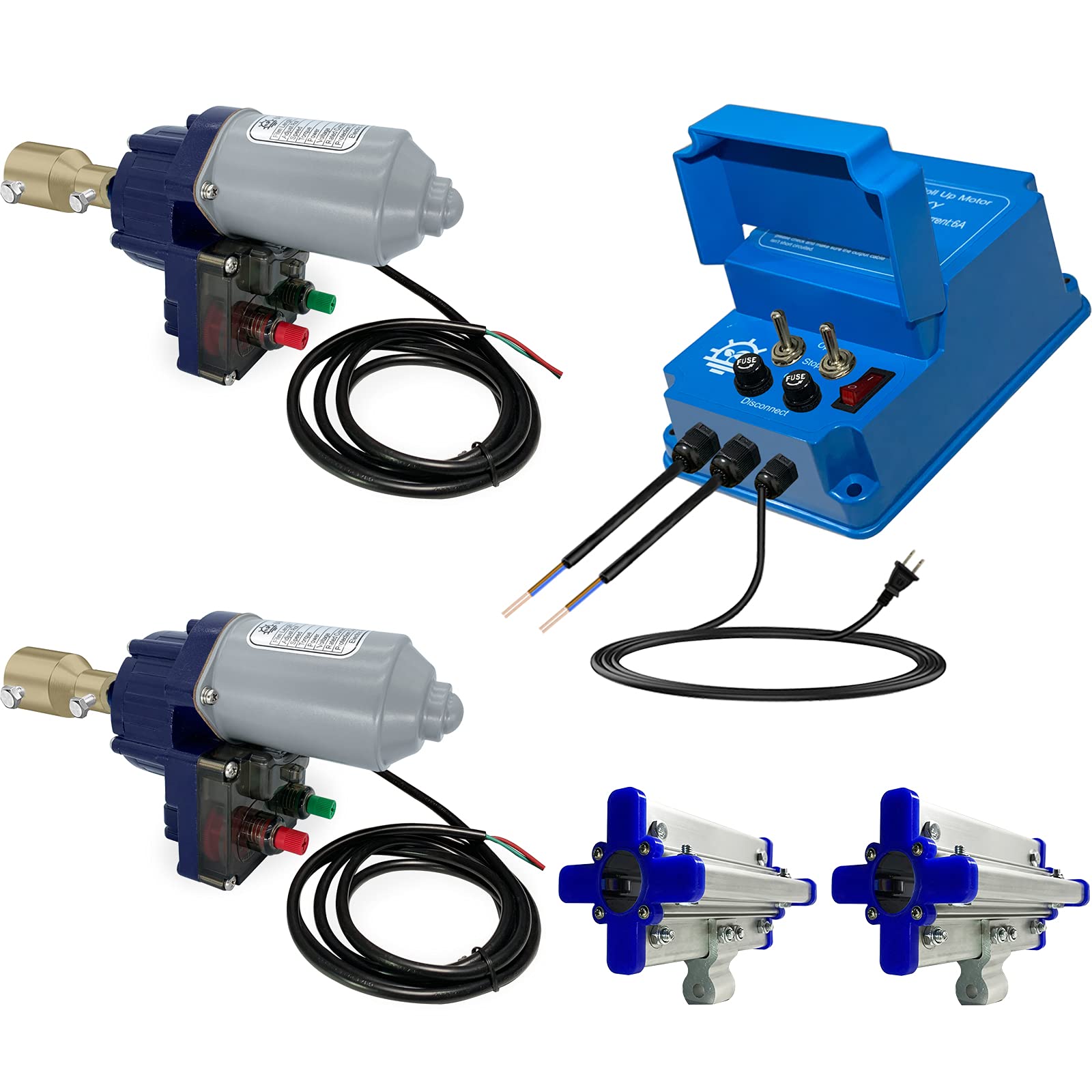

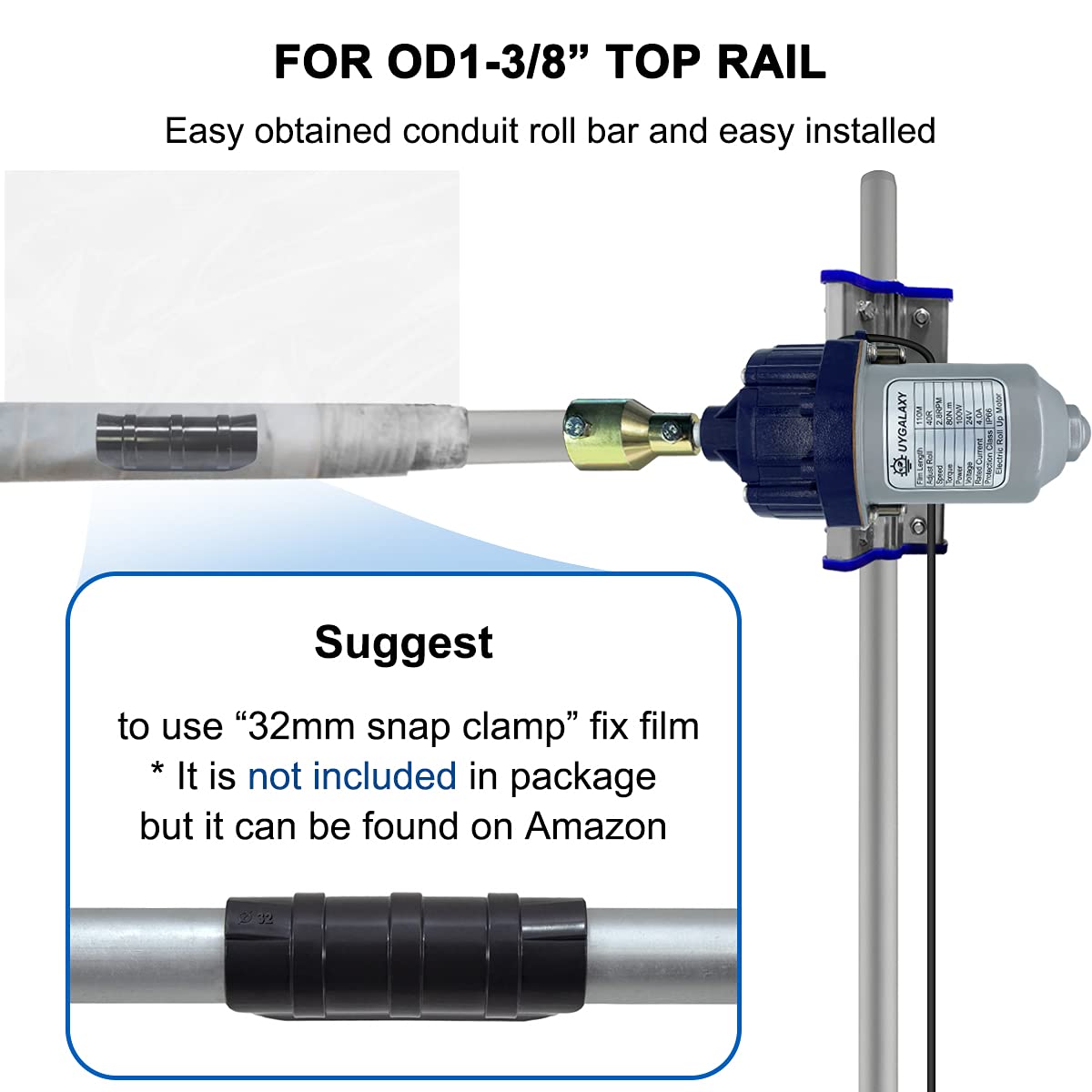

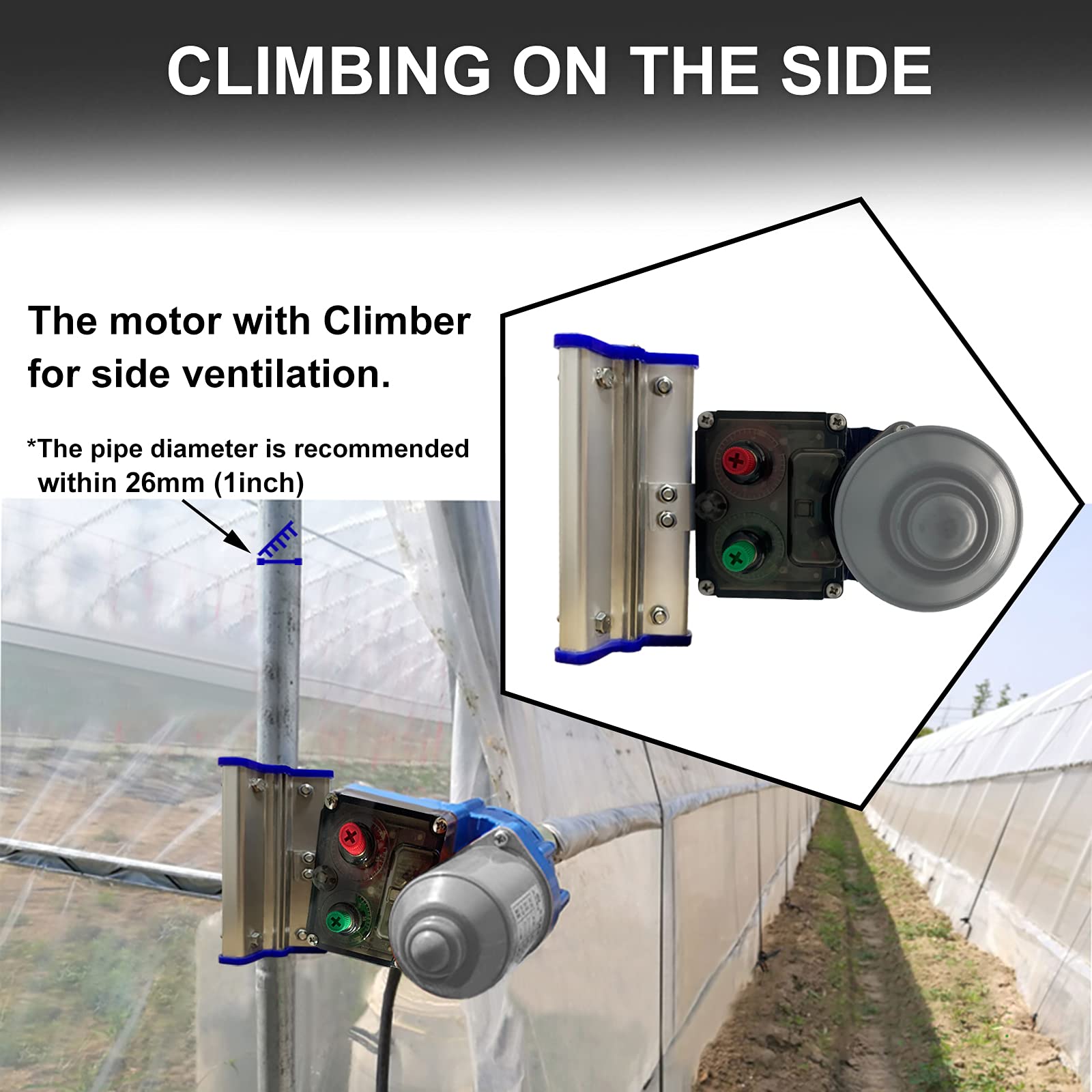

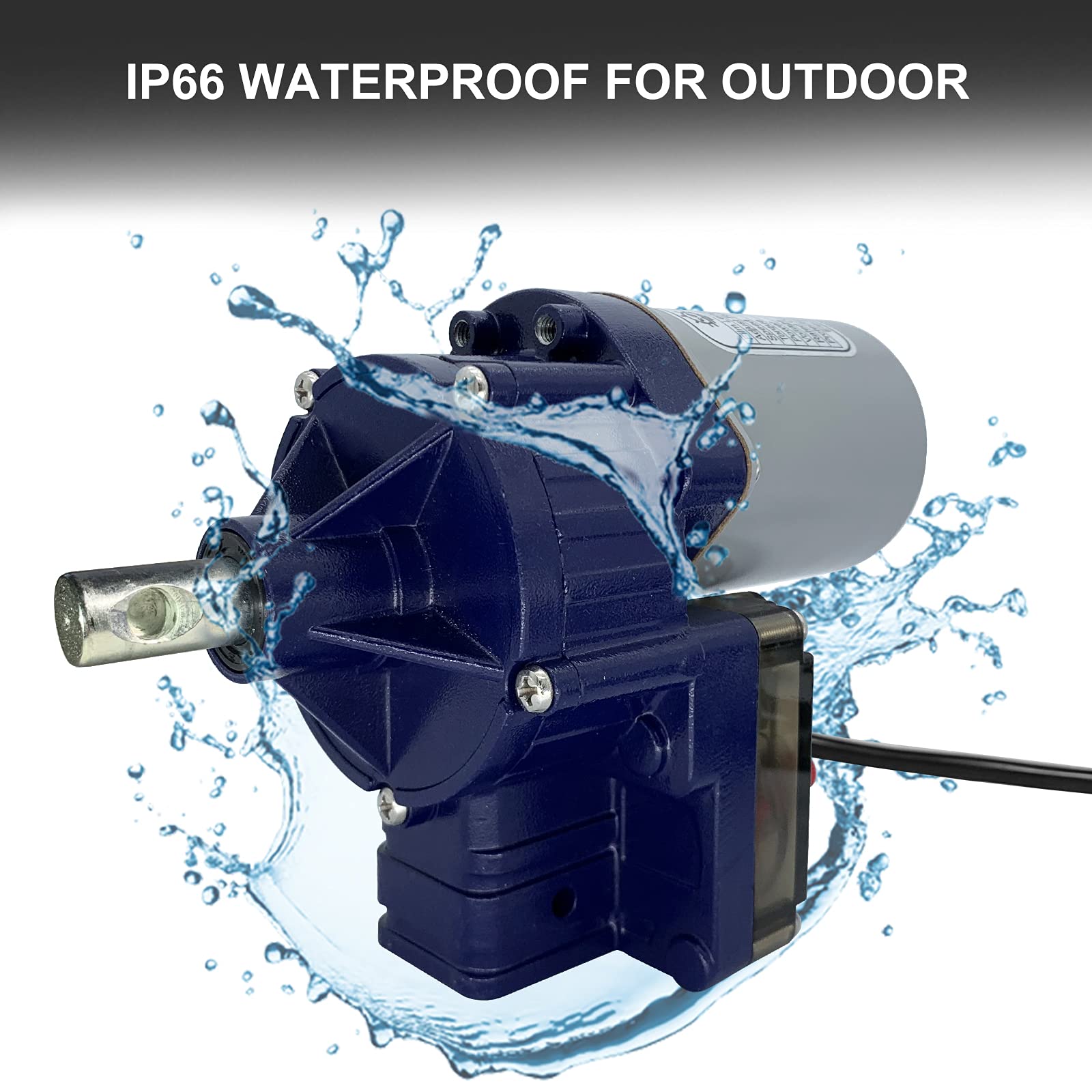

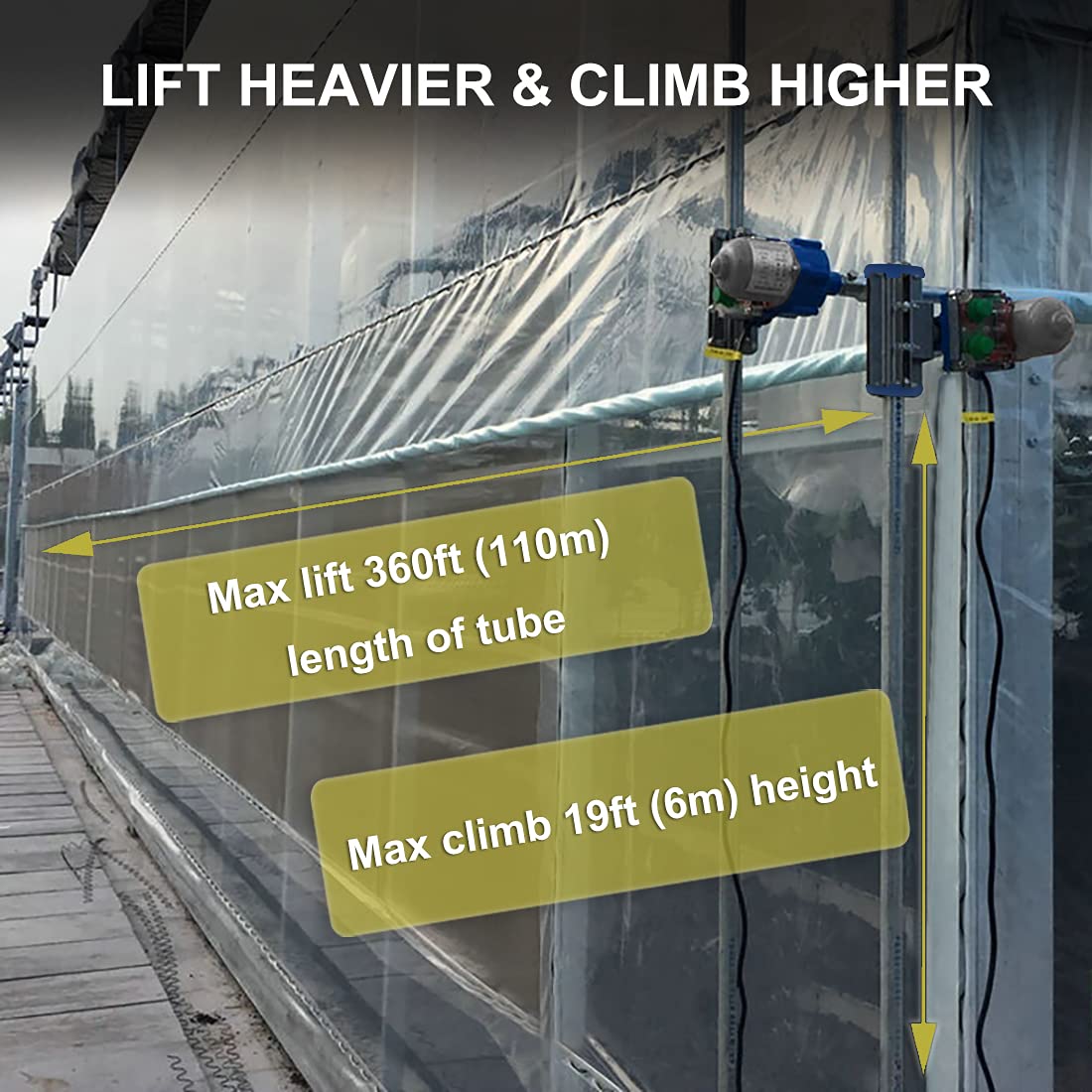

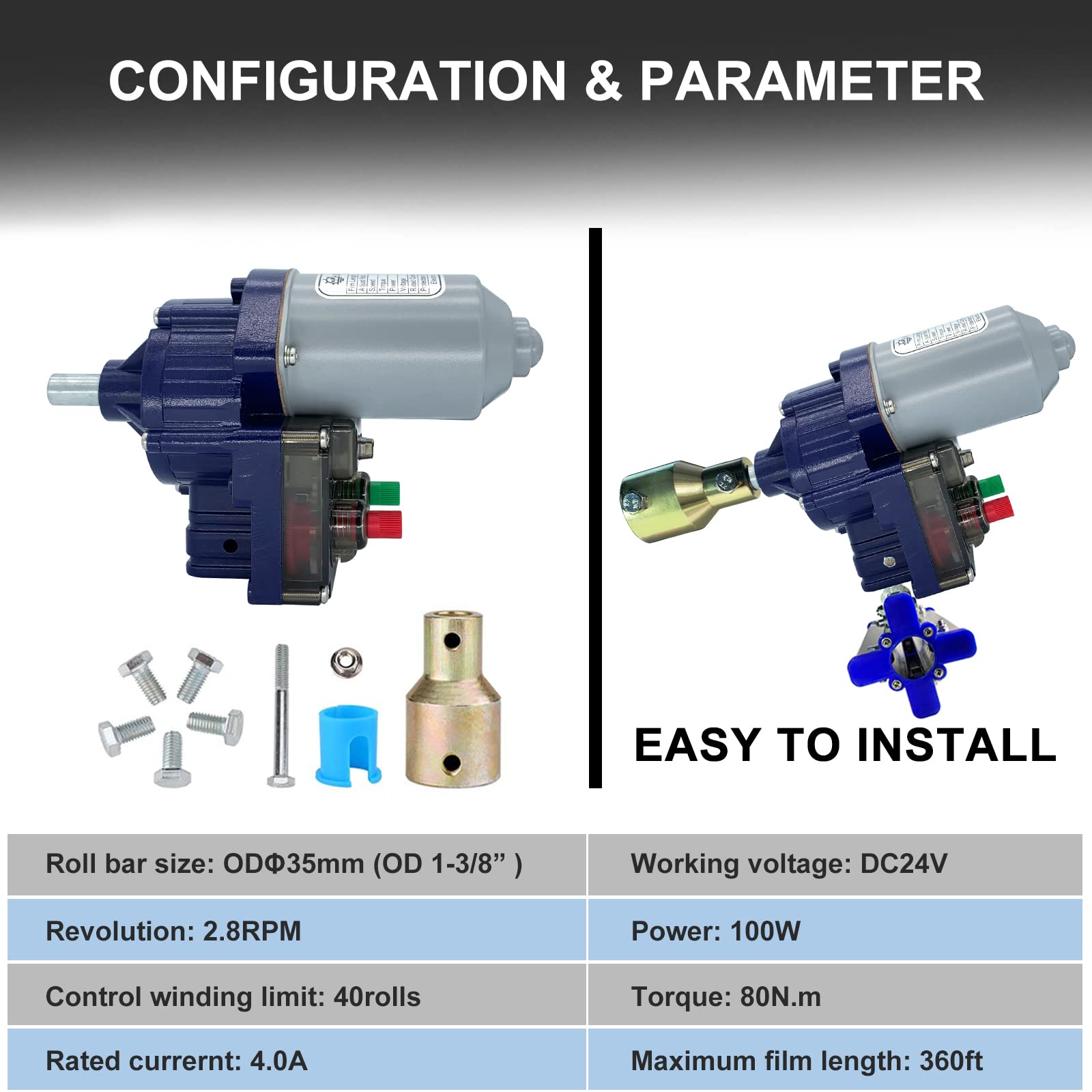

Useful in Your Greenhouse Package Include: 1* Controller Box2* Roll Up Motors2* Creepers The electric roll-up motor for ventilation, which is used extensively in the greenhouse. Such as the solar greenhouse, vegetable greenhouse, cultivation greenhouse, multi-span film greenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the roll of film. Accessories 2*Roll bar adaptors5*Screws of M8x251*Bolt of M6x551*Nut of M6 Suggest OD35mm roll tube and climbing tube Suggest OD25mm tube for creeper OD: Outside Diameter Roll Up Machine Side Curtain Ventilation of Greenhouse Roll Tube Size: 5ft~360ftPower: 100 wattAdjust Roll: 40 limitsVoltage: DC 24vSpeed: 2.8 rpmRated Current: 4.0ATorque: 80 N.mProtection Class: IP66 Max roll tube length: 360ft(110m) Climb 19ft height when OD 35mm roll bar OD 1 3/8inch Top rail for roll bar is suitable Roll Bar Adapter Fits for OD 1-3/8" top rail galvanized tubing.19ft travel, which decided by the outer diameter of tubing.It's bronze color. Access to the Creeper Fits for OD 1" galvanized tubing for creeper hole.The creeper will help the roll up motor work in a straight line. Updated Sealing Method The new version roller adapts new design, instead of the waterproof lid ( both ok for upper water resistance ).Press the knob and rotate it for setting limits, it's invalid without press down. Knob: FusesSwith1: ON/OFFSwith2: Open/Stop/Close Window Switch Style: Maintained (switch the toggles, the motors will keep running until the limit is reached.) Roll Up Motor Controller Input: AC 110VOutput: DC 24VPlug wire (input) length: 4.75ftBare wire (output) length: 1.6ftJoint box: Transformer + controlSize: 9 x 6 x 3.8 inches 1.The motor with limit switch would stop once hitting the limit. 2.Two 10A fuses for two channel of outputs. 3.The product is without timer, it's main for transforming the voltage and controlling the motors. 4.Please install it inside the house. Wide Use in your Greenhouse Vegetable & Herb Fruit & Flower Chicken & Livestock Save Labor UYGALAXY Greenhouse Roll Up Motor IP66 waterproof protection class.Compact size and low noise, easy installation.Can side of the roll, also can top roll.Roll up tube length from 5~360ft, climb 19ft height when (Outside Diameter) OD 35mm roll tube.Setting the limit switches on hoop house roll up ventilation motors, roll up motor and creeper work perfectly together Tips: It's suggested OD25mm(1inch) tube is suitable for creeperAfter the installation of the roll up motor, be sure to the roll film bar is at a right angle to the pivot support bar.It's suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included. UYGALAXY Greenhouse Roll Up Motor IP66 waterproof protection class.Compact size and low noise, easy installation.Can side of the roll, also can top roll.Roll up tube length from 5~360ft, climb 19ft height when (Outside Diameter) OD 35mm roll tube.Setting the limit switches on hoop house roll up ventilation motors, roll up motor and creeper work perfectly together Tips: It's suggested OD25mm(1inch) tube is suitable for creeperAfter the installation of the roll up motor, be sure to the roll film bar is at a right angle to the pivot support bar.It's suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included.
