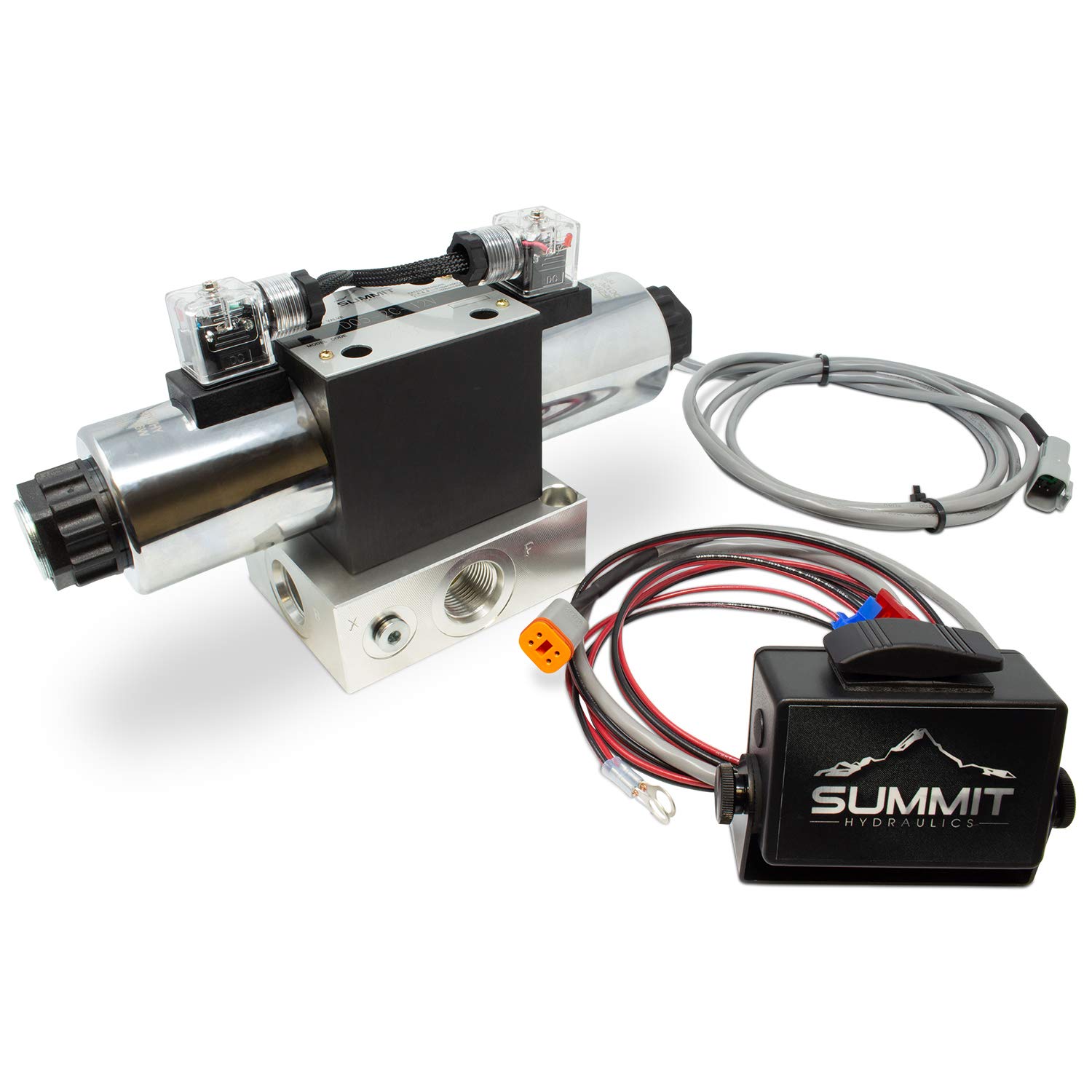

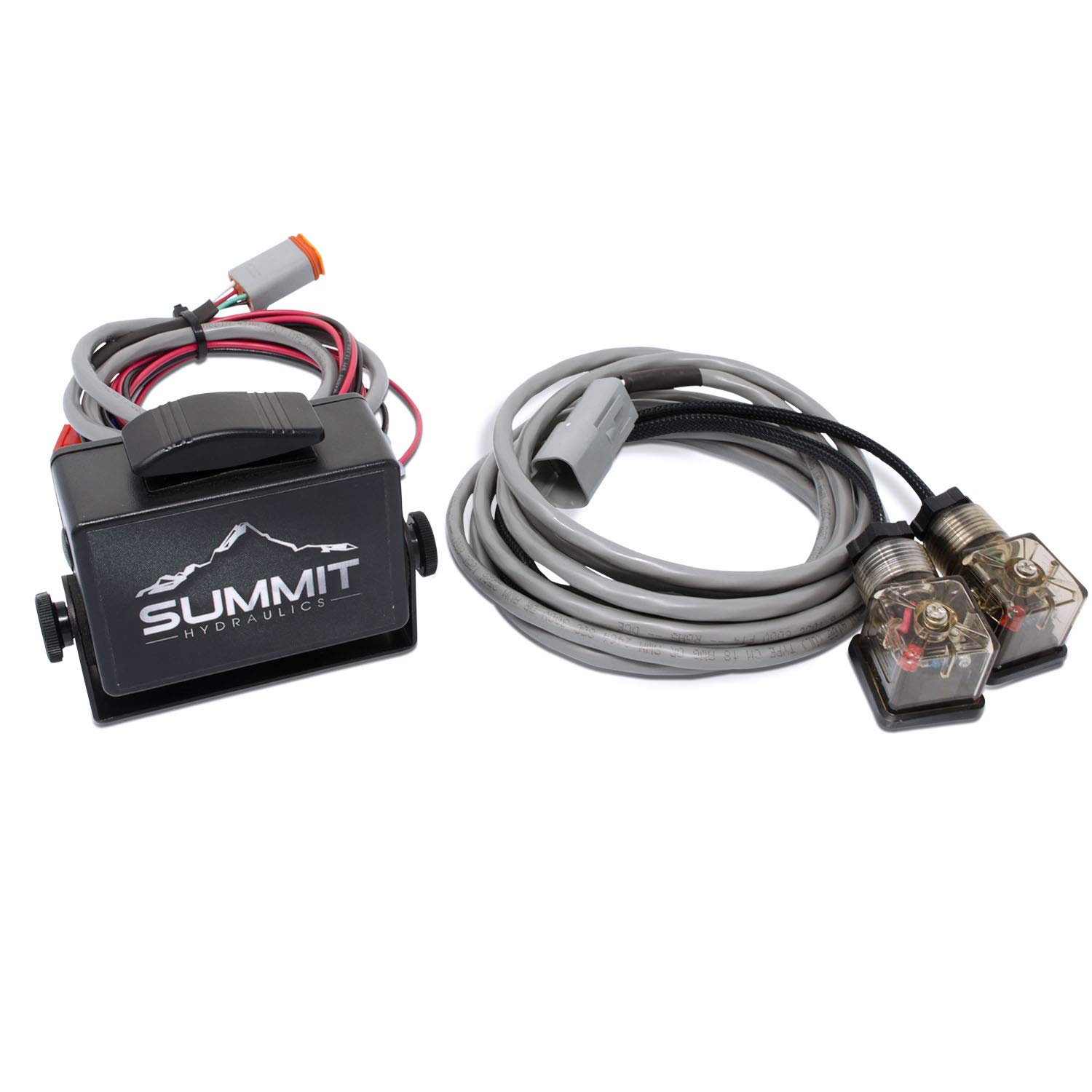

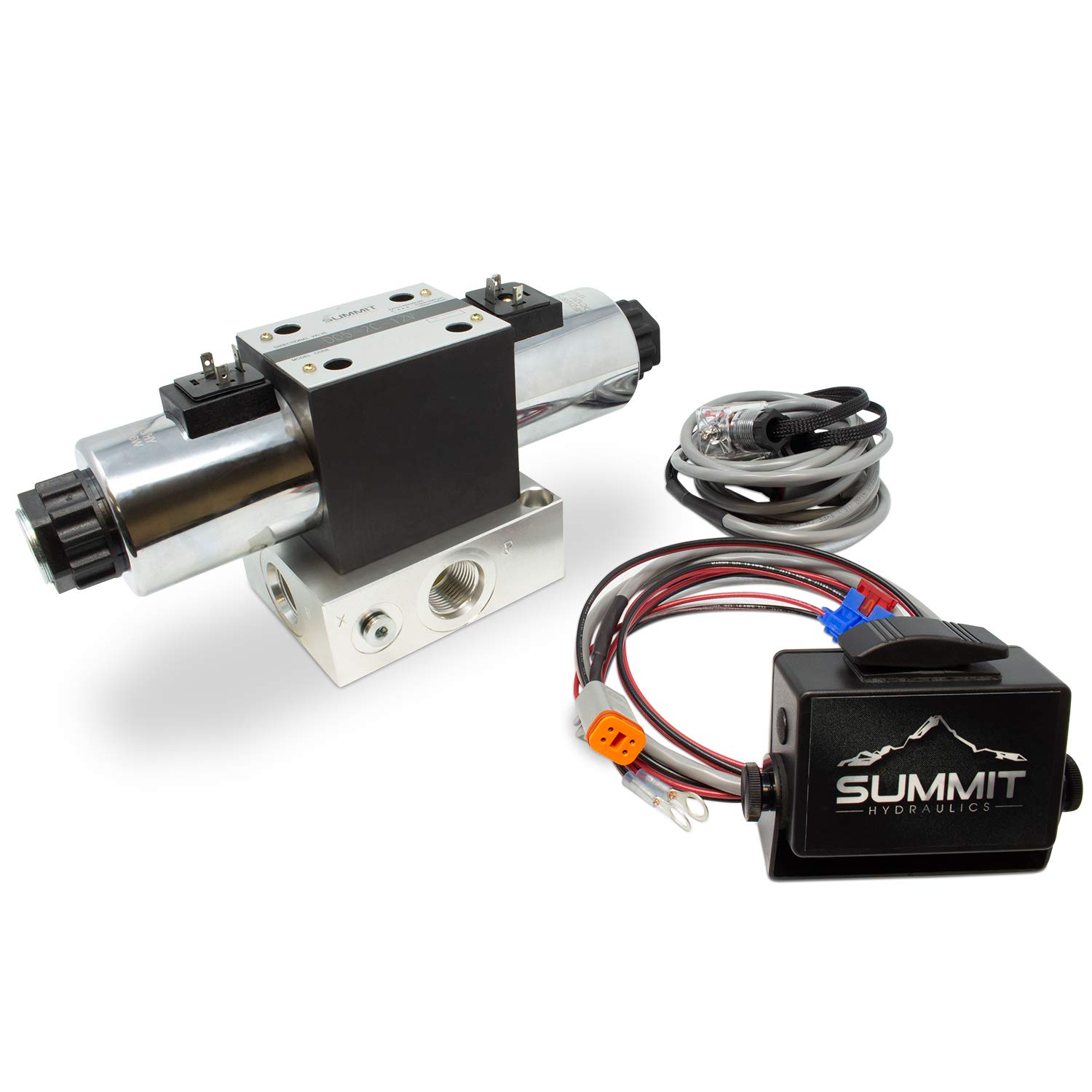

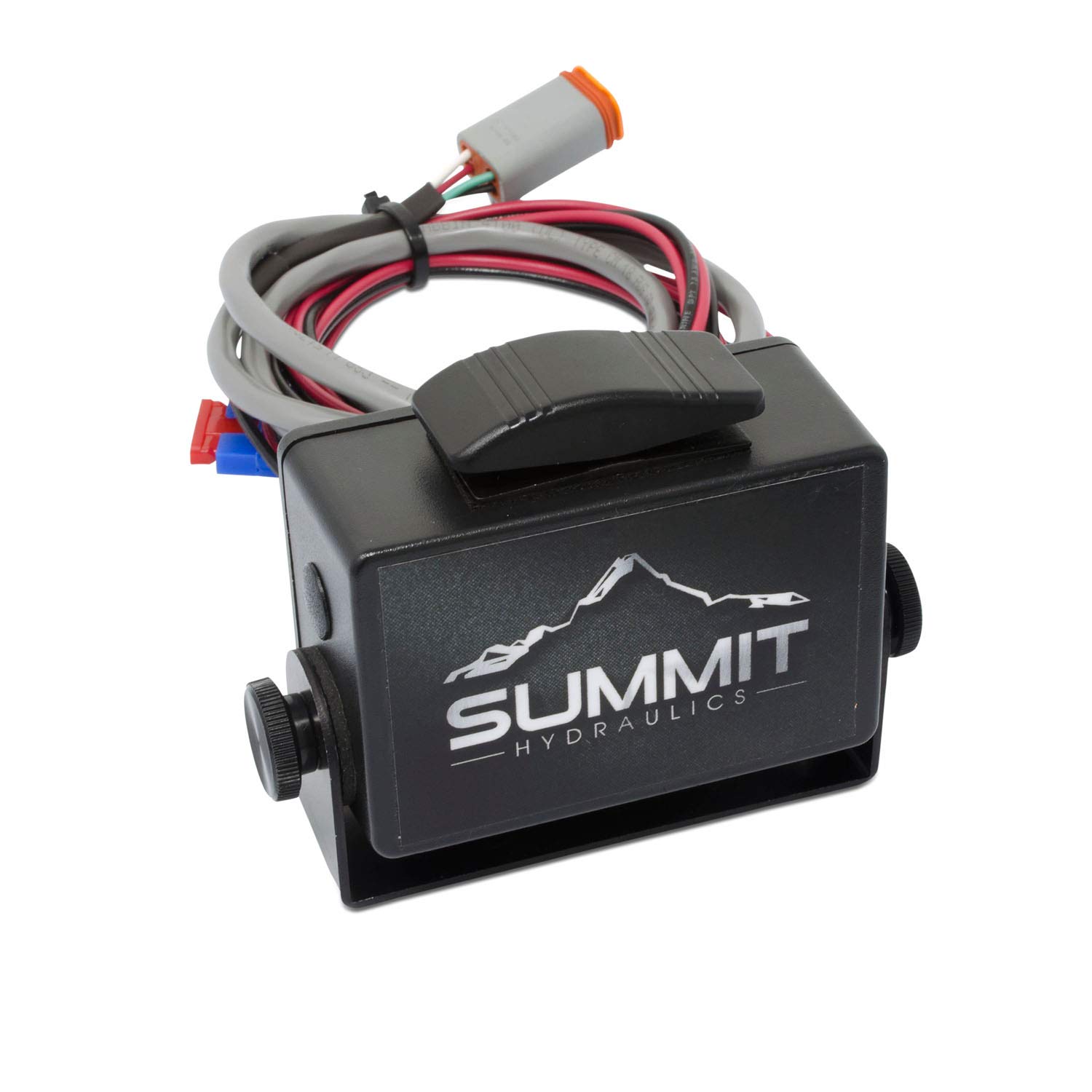

Electric Hydraulic Double Acting Directional Control Valve, 1 Spool, 25 GPMThis double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic motor. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This is a single station, open-center, series configuration setup.D Spool (Motor Control)All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylindersA and B ports are closed to Tank in neutral positionIntended for Closed Center SystemsValve Body Features: Solid aluminum housing designed for rugged useMax Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSIFlow Rating: 25 GPMAluminum Body3000 PSI Rated#12 SAE (1 1⁄16 – 12 ORB) female thread Work Ports#16 SAE (1 5/16 -12 ORB) female thread Outlet (Tank) Port#12 SAE (1 1⁄16 – 12 ORB) female thread Inlet (Pressure) PortSwitch Features:Switch includes a 3′ switch harness and 10′ extension valve harness for a total of 13′ between switch and valveMomentary push button rocker switch box allows for easy controlMountable Switch BracketSolenoid Specifications:Nominal Voltage Tolerance +/- 10%Power Rating: 37 WattsAmps: 3.08100% Duty Cycle.24 volt
