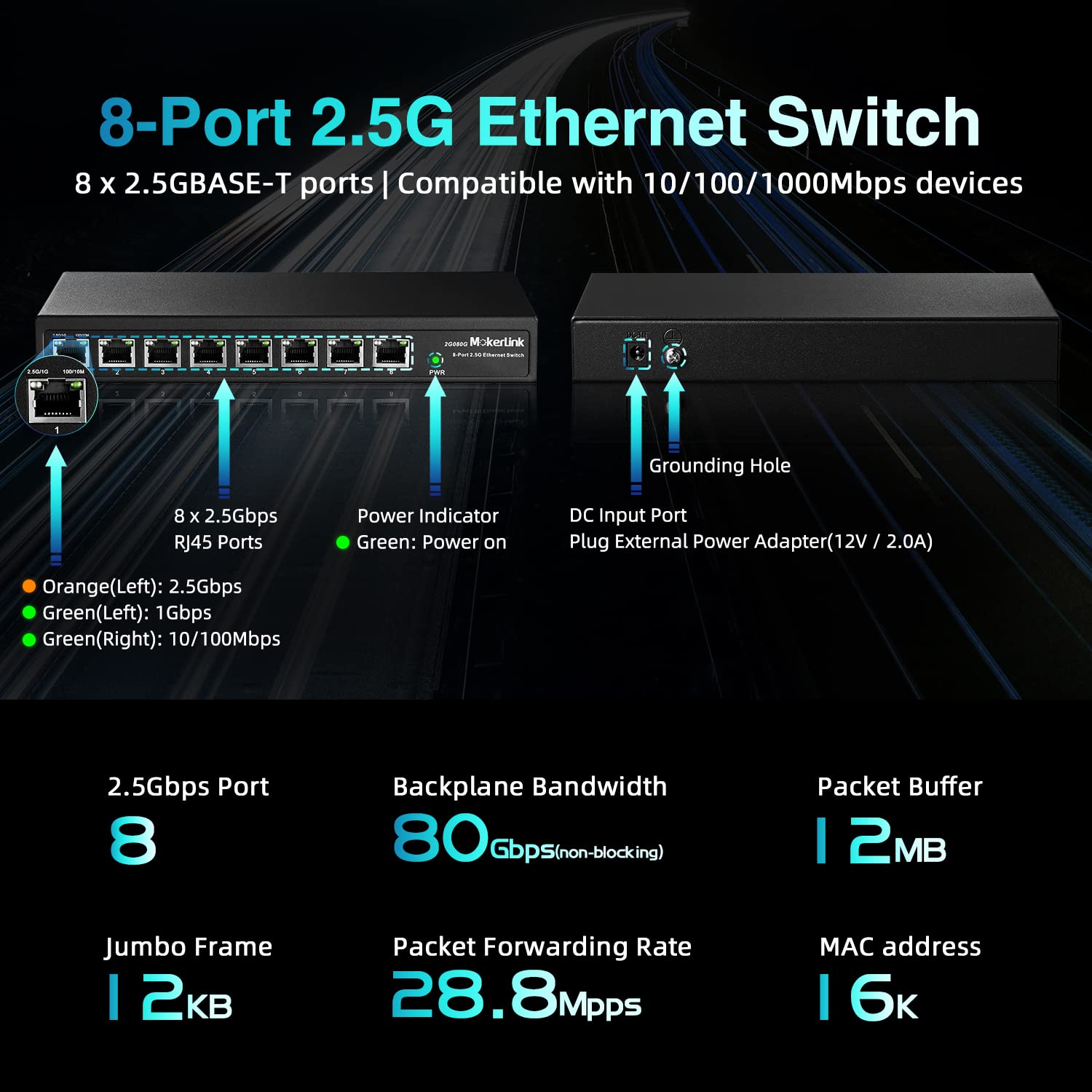

Key Features: MokerLink 8 port 2.5G ehternet switch upgrading networks by providing a more reliable, stable, seamless network and easily multiplying the network speed by 2.5 times. It provides 8*10M/100M/1G/2.5G RJ45 ports with line speed forwarding capability per port. Up to 80G backplane bandwidth, 12M cache, 28.8M packet forwarding rate, and support 12K giant frame transmission.Provide 8 10M/100M/1G/2.5Gbps RJ45 ports for high-speed transmission.Each port supports MDI/MDIX automatic flip and duplex/rate self negotiation.Support IEEE 802.3x full duplex flow control and backpressure half duplex flow control. With 2.5 Gigabit speed, the 2G080G brings high-flexibility and high-bandwidth connectivity to WIFI6 AP, router, servers, workstations and other attached devices. It enables you to save time when transferring large files. 12K jumbo frames are also supported to improve network utilization in large files transfer. Full 2.5G Port The 2G080G features non-blocking wire-speed architecture with 80Gbps switching capacity for maximum data throughput. It supports IEEE 802.3x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. An 8K MAC address table provides scalability for even the largest networks. Plug and Play This 8 port 2.5G switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10/100/1000Mbps) and intelligently adjusts for compatibility and optimal performance. Work with Existing Cabling It can be deployed where extra bandwidth is demanded without costly, time-consuming re-cabling or equipment replacement costs. Lighting Protection The 8 port 2.5g switch fetures with 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system. Fanless Quiet Design Fanless design improve energy efficiency and lower financial cost. Passive cooling achieves high levels of natural convection and heat dissipation by utilizing a heat spreader or a heat sink to maximize the radiation and convection heat transfer modes, It is a solution for switches to maintain optimal operating temperatures without causing much noise. Compact Size The compact design makes these sensors interesting for room critical applications. Product Specifications Model 2G080G Product Name 8 port 2.5G ethernet switch Ethernet port 8*10M/100M/1G/2.5Gbps RJ45 port Switching Capacity 80Gbps Throughput 28.8Mpps Packet Buffer 12MB MAC Address 16K Jumbo Frame 9216bytes Network protocol IEEE 802.3u, IEEE 802.3bz, IEEE 802.3x Working Environment Working Temperature: -10~55°C; Working Humidity: 5%~90%，non-condensing Transmission Distance 10BASE-T: Cat3,4,5 UTP(=250m) 100BASE-T: Cat5 ór later UTP(150m) 1000BASE-T: Cat6 or later UTP(150m) 2500BASE-T: Cat6 or later UTP(150m) Product Dimension (L*W*H) 223mm*103mm*28mm Product Weight 0.7kg Power Input External power supply AC: 100～240V 50-60Hz 8 Port 2.5G Ethernet Switch 5 Port 2.5G Ethernet Switch 8 Port 10G Ethernet Switch 28 Port Gigabit Managed Switch with 4*10G SFP+ UpLink Port 28 Porg Gigabit Managed Switch Add to Cart Buying Options Buying Options Add to Cart Buying Options Customer Reviews 4.4 out of 5 stars 71 4.3 out of 5 stars 91 3.2 out of 5 stars 20 4.4 out of 5 stars 8 3.7 out of 5 stars 6 Price $139.17$139.17 — no data — no data $339.82$339.82 — no data Ethernet 8*10/100/1G/2.5Gbps RJ45 Ports 5*10/100/1G/2.5Gbps RJ45 Ports 8*1G/2.5G/10Gbps SFP+ Ports 24*10/100/1000Mbps RJ45 Ports + 4* 10G SFP+ UpLink Ports + 1*Console Port 24*10/100/1000Mbps RJ45 Ports + 4*Gigabit SFP UpLink Ports + 1*Console Port Managed Support No No No Yes Yes Switching Capacity 80Gbps 80Gbps 160Gbps 56Gbps 128Gbps Throughput 28.8Mpps 28.8Mpps 119.04Mpps 41.66Mpps 95.23Mpps Jumbo Frame Support ✓ ✓ ✓ ✓ ✓ Size 223*103*28mm 160*115*33mm 223*103*28mm 440*224*44mm 440*224*44mm Weight 0.7kg 0.6kg 0.71kg 2.4kg 2.0kg Extend Function Full 2.5G RJ45 Port Full 2.5G RJ45 Port Full 10G SFP+ Port L3 Software Function L2+ Software Function
