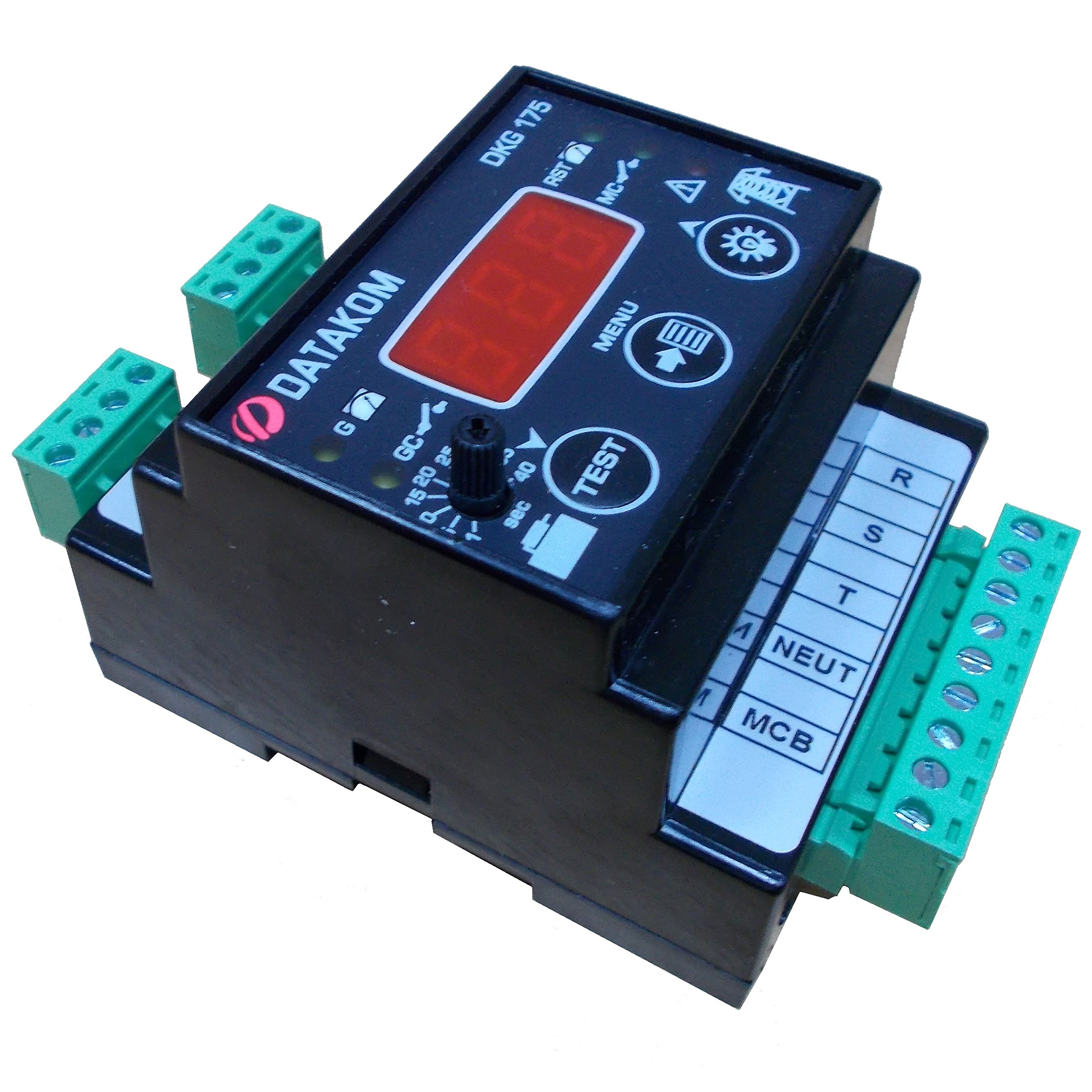

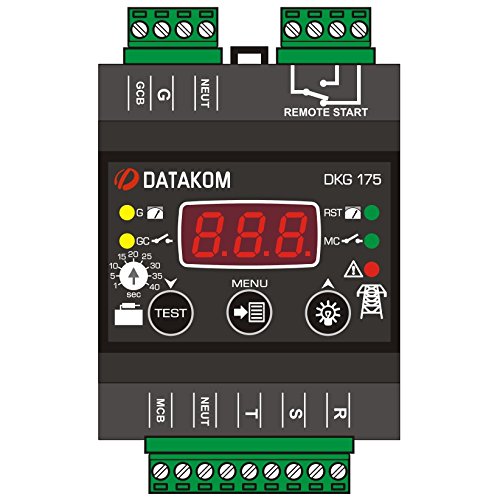

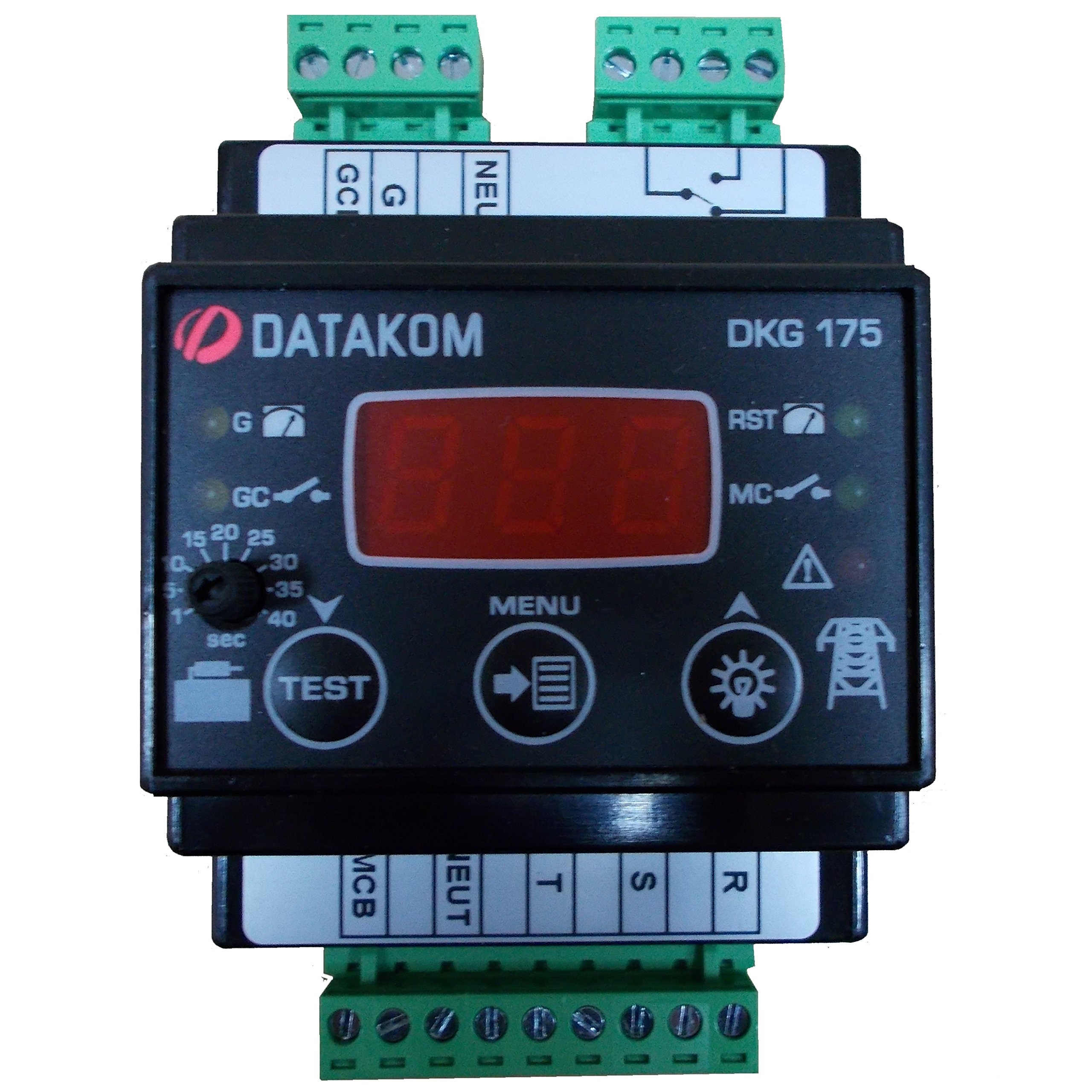

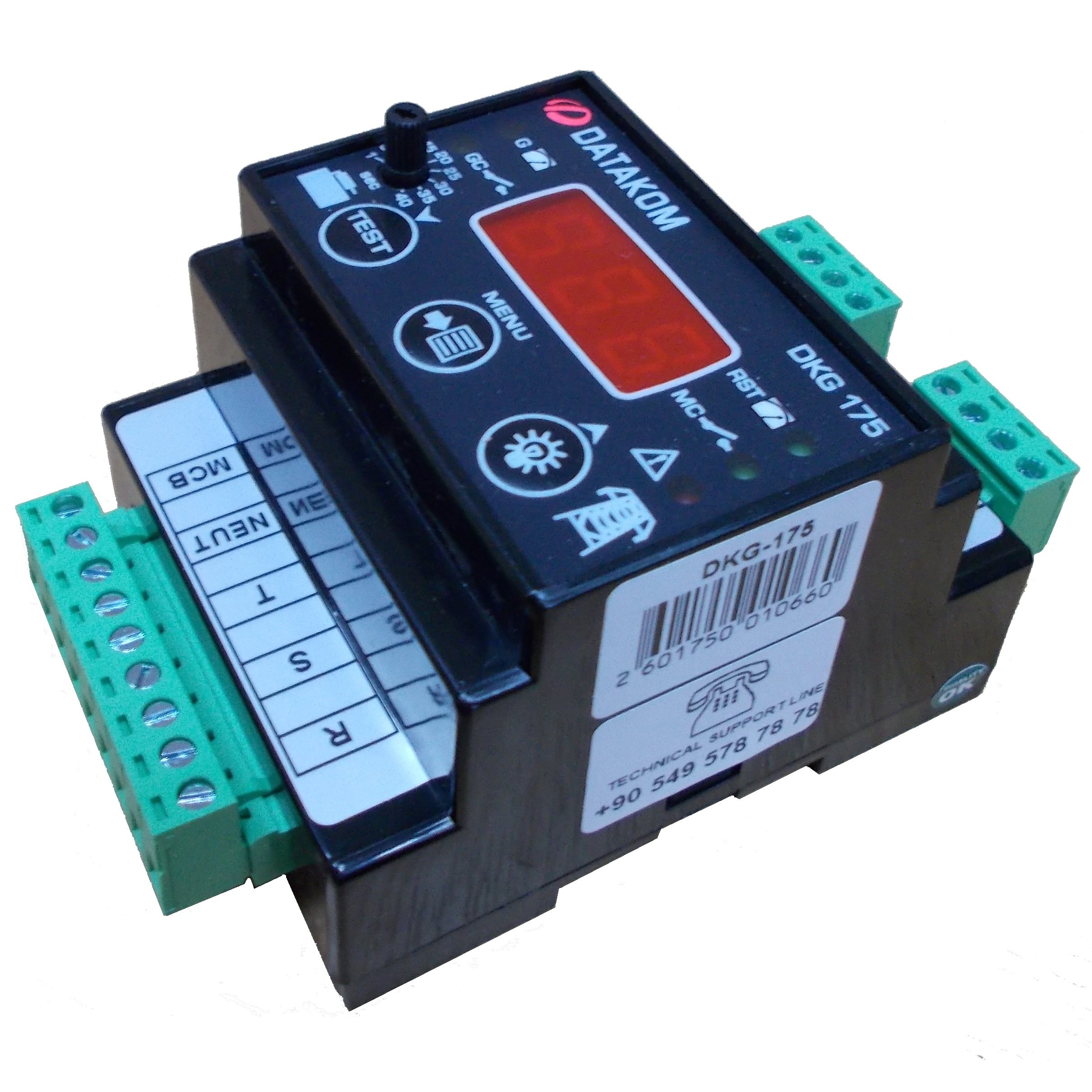

WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA DESCRIPTION DATAKOM DKG-175 DIN RAIL MOUNTED ATS CONTROLLER WITHOUT DC SUPPLY The DATAKOM model DKG-175 is a DIN Rail mounted ATS controller not requiring DC supply. The unit monitors 3-phase mains voltages, sends remote start command to the generating set and performs changeover of both generator and mains contactors. The unit is microprocessor controlled and offers flexible of use thanks to adjustable parameters. The front panel leds provide information about mains and generator power availability as well as contactor positions. The TEST mode allows generator testing while mains is present. FEATURES: DIN Rail mounted No DC supply required Microprocessor controlled Adjustable parameters 10A/250VAC MCB and GCB outputs 10A/28VDC/250VAC remote start output Isolated mains and genset inputs TEST mode available TECHNICAL SPECIFICATIONS: Alternator voltage: 170-300 V-AC (Phase-Neutral) Mains voltage: 170-300 V-AC configurable (Phase- Neutral) Mains frequency: 30 – 70 Hz configurable Generator contactor timer: 1 - 40 sec. configurable Mains contactor timer: 0 - 999 sec configurable Mains waiting timer: 0 - 999 sec configurable Mains fail timer: 0 - 999 sec configurable Cooldown timer: 0 - 999 sec configurable Remote start delay: 0 - 999 sec configurable Mains contactor output: 10A @ 250V-AC Generator contactor output: 10A @ 250V-AC Remote start output: 10A @ 250V-AC/28V-DC Operating temperature: -30C to 70 C Storage temperature: -30C to 80 C Maximum humidity: 95% non-condensing. Dimensions: 70x115x66mm (WxHxD) Weight: 180g (approx.) More on controllers4generators.com
