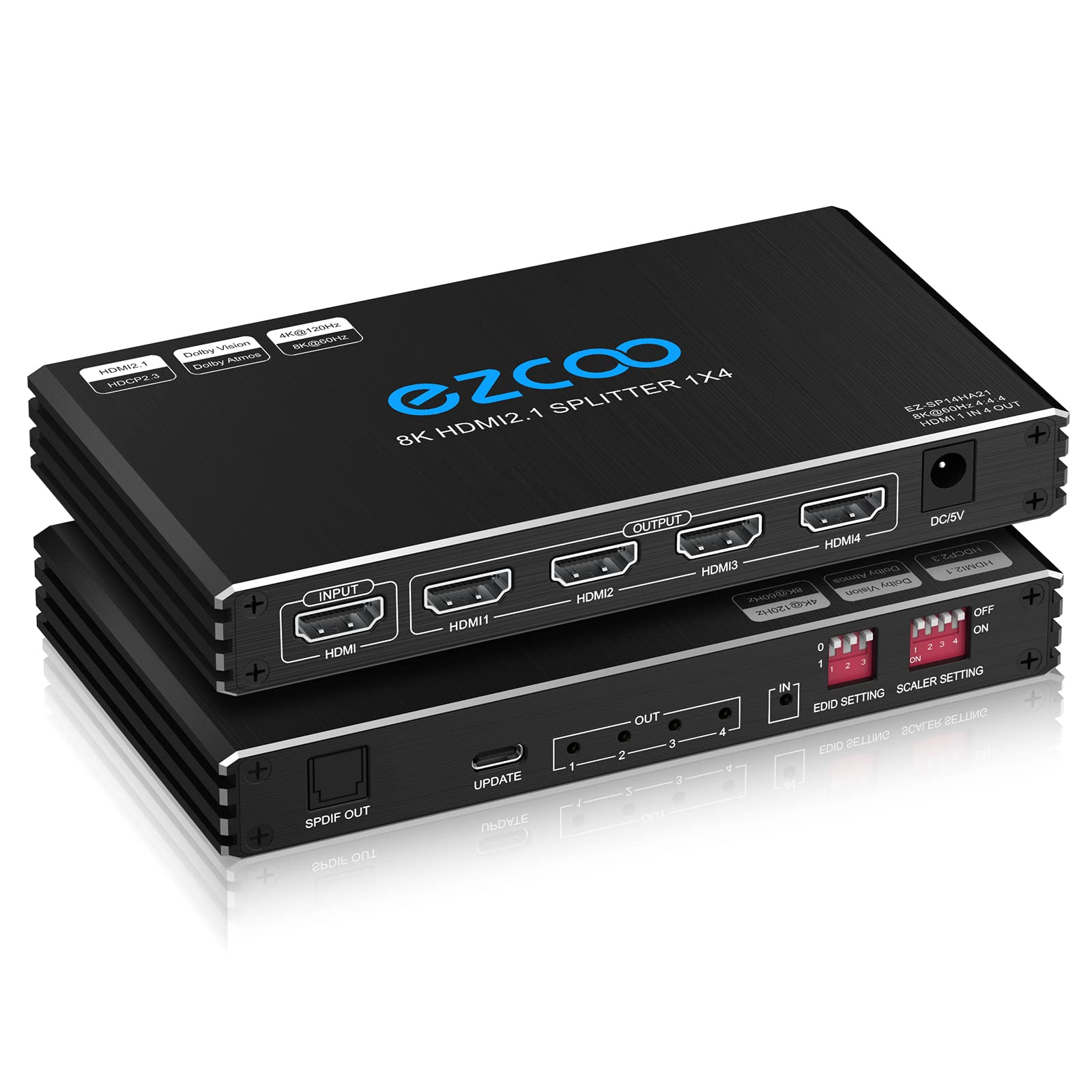

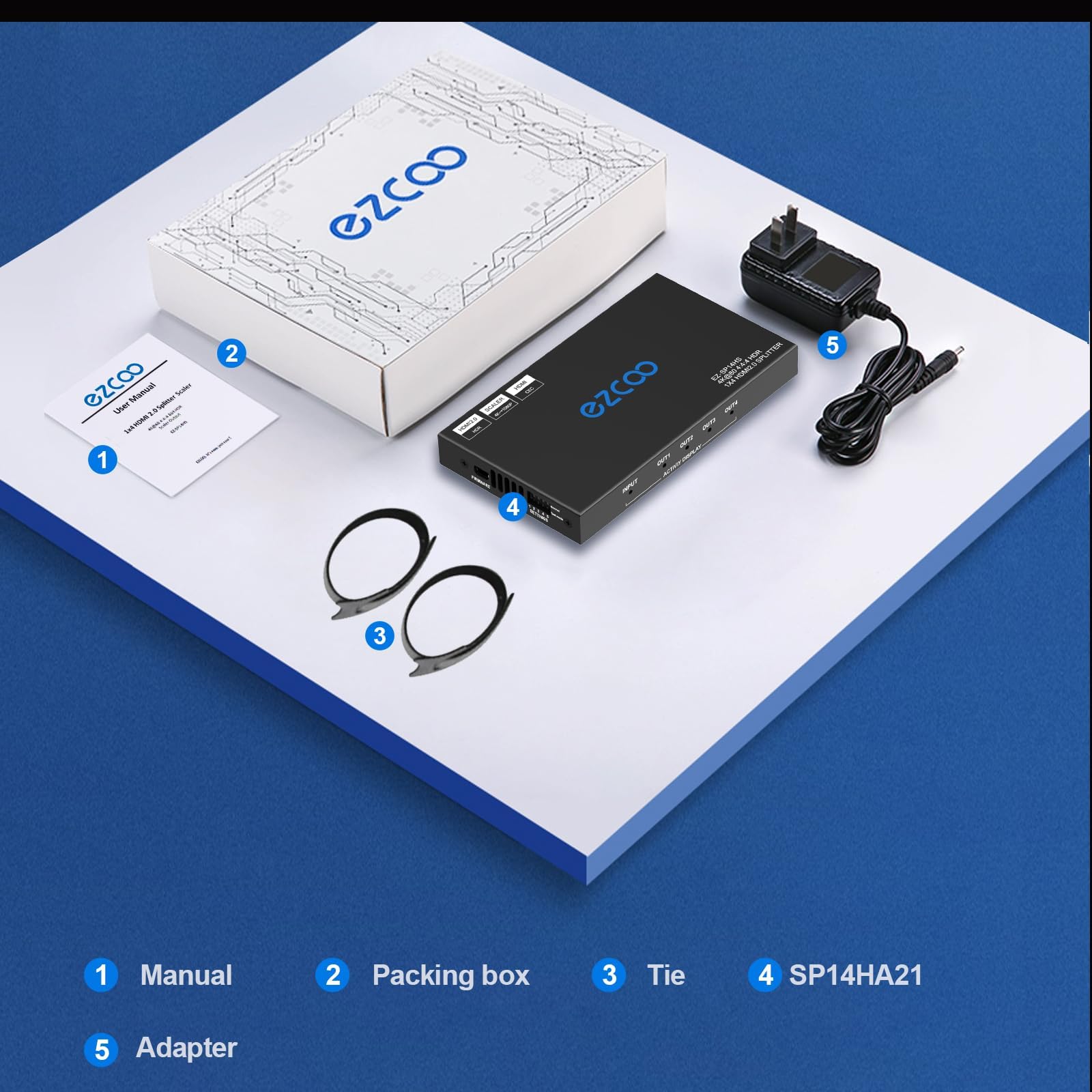

Previous page Next page Previous page Next page 1 EDID & Scaler 2 EDID SETTING 3 SCALER SETTING 4 4K120Hz &1080P 120Hz 5 Optical SPDIF HDMI 2.1 Spltter 1 IN 4 OUT 4K 120Hz VRR ALLM supports 4K120Hz and 1080P 120Hz output simultaneously.Supports HDMI2.1 4K@120Hz 8K60Hz HDCP 2.3 HDR10 VRR ALLMSupports EDID management, Down scaler function. HDMI Cable less than 3mSupports Dolby Atmos, DTS X,Dolby True HD, DTS-HD PCM7.1HDMI Splitter Audio Extractor SPDIF Audio DE-embed, audio out Package Accessories HDMI Splitter x1Power adapter x1Packing box x1Reusable Cable Tiex2User manual x1 Previous page Next page 1 4K120HZ 2 VRR ALLM 4 HDCP2.3 5 DOBLY ATOMS How to get 4K 120HZ Dobly Vision or No sound or image 1.Check that the HDMI 2.1 cable is less than 3 m long. 2.The display and source support HDMI 2.1 4K 120HZ. 3.Set the correct EDID 4.Check the corresponding settings of the signal source and monitor. How the HDMI 2.1 Splitter Connect to the elgato HD6OX 1.Connect elgato HD6OX to splitter ouT1 2.Connect Display to splitter OUT1 3.EDID set to COPY 4.Signal source power on Here are the solutions for 4K 120Hz TVs or monitor that do not support 4K 120hz 1.Go to Nvidia Settings, scroll down to PC Settings under Resolution Settings and select the 4K Resolution option. select the 120hz option. Click Apply. Select colour 4:2:0, 8Bpc and 120Hz with G-sync. 2. TV Set to 4K 120HZ. Here are the solutions for 4K 120Hz PS5 Select "Settings" in the upper right corner of the screen;Select "Screen and Video" - Enable 120 Hz output - Automatic;select "Performance Mode or Resolution Mode" and set it to "Performance Mode". Here are the solutions for 4K 120Hz XBOX Press the Home button (XBOX button) on your XBOX controller. Select Profile & System and go to Settings. In the General category, select TV & Display. Set the resolution to 4K UHD.set the refresh rate to 120 Hz.
