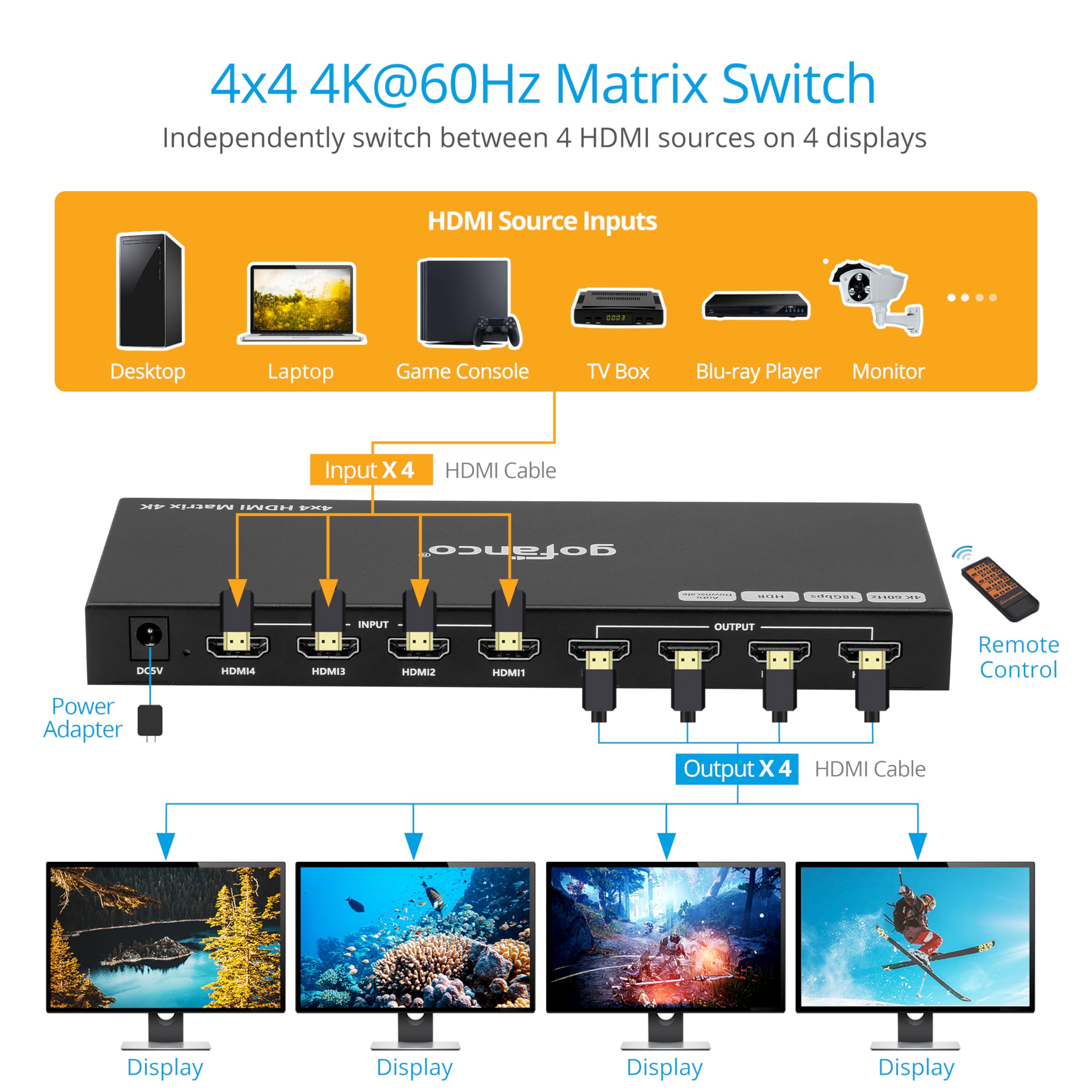

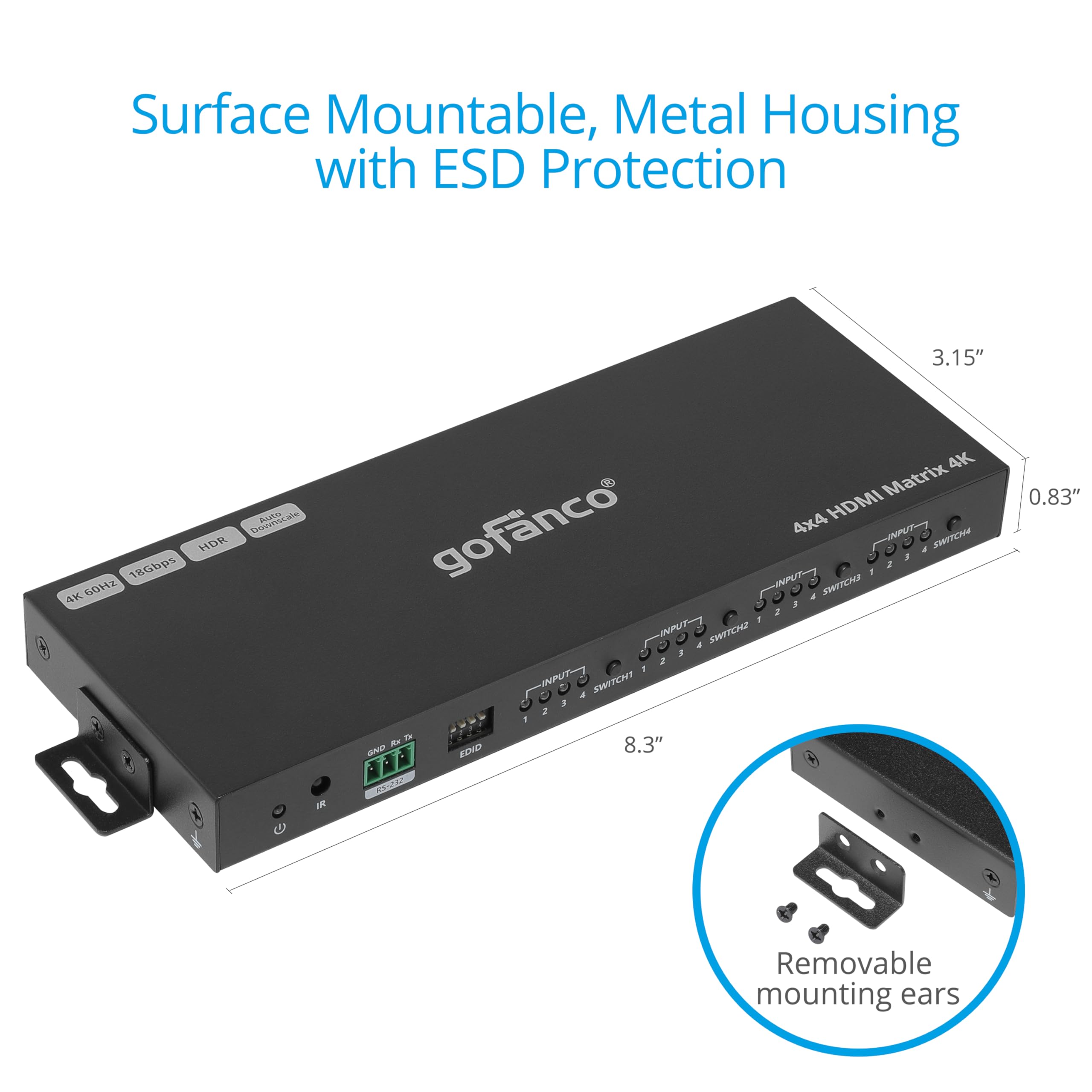

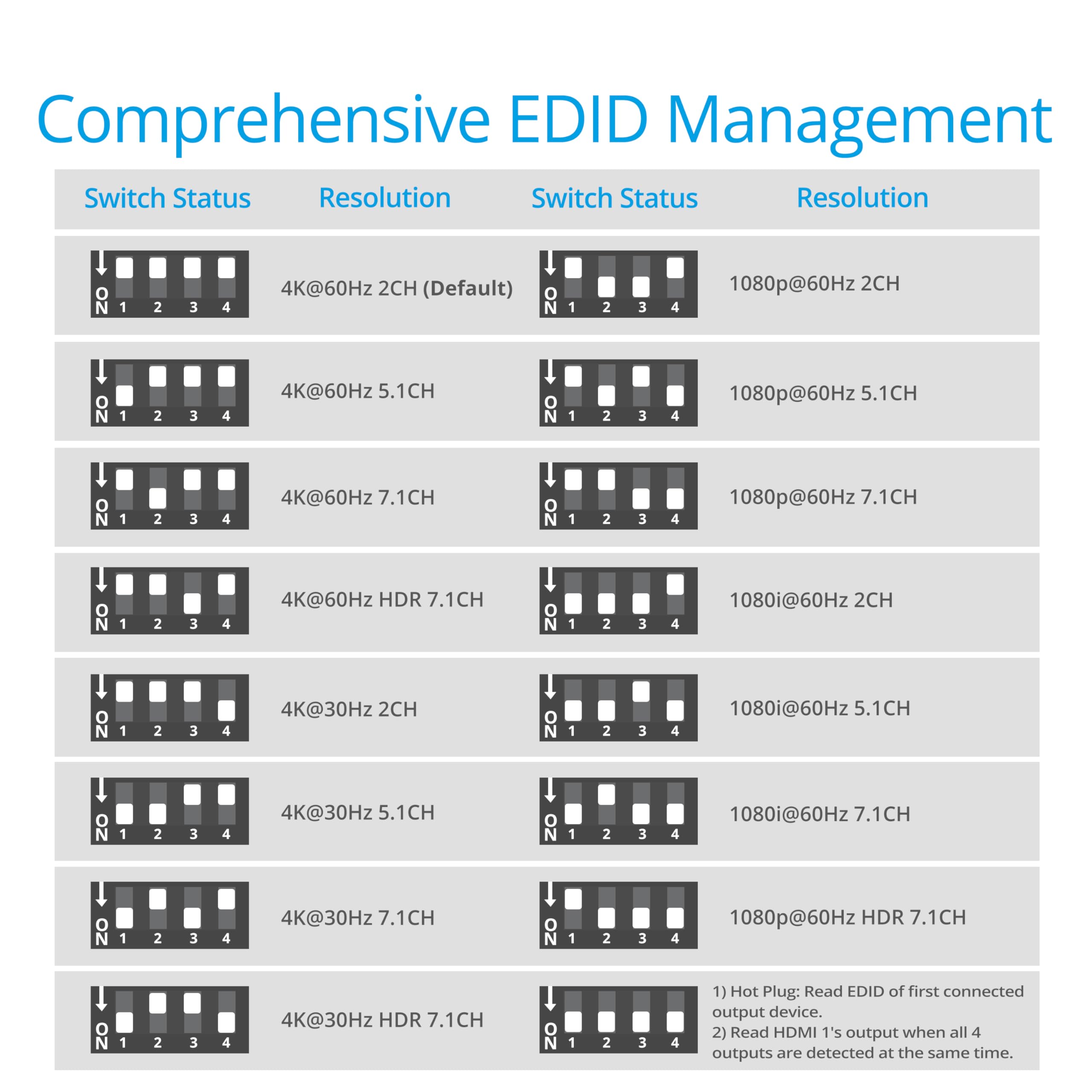

4K 4x4 HDMI Matrix Switch Connect up to four HDMI source devices and independently distribute any source to any of the four HDMI displays. Supports up to 4K @60Hz YUV 4:4:4 8-bit, HDR, HDCP 2.2, 18Gbps. Supports up to 7.1 digital HDMI audio, including Atmos Important Note HDR10+ and Dolby Vision are NOT supportedARC and CEC are NOT supported Specifications Video resolutions: Up to 4K @60Hz YUV 4:4:4, 18GbpsSupports HDR. *Note: HDR10+ and Dolby Vision are not supportedHDCP 2.2/1.4 compliantSupports LPCM 7.1/5.1, DTS/DTS-Audio, Dolby Digital Plus/Dolby TrueHD 7.1/Dolby Digital 7.1/Dolby AtmosSupports 4K to 1080p auto downscaling on any two outputs. A 4K video source device can simultaneously display 4K content to 4K monitor(s) and 1080p content to 1080p monitor(s) via downscaling - Comprehensive EDID managementControl options: 1) Push buttons, 2) IR remote, 3) RS232 commandsLightning/Surge/ESD ProtectionHousing: Surface mountable metal enclosureCountry of origin: ChinaRegulatory approvals: FCC, CE, RoH Auto Downscaling 4K to 1080p auto downscaling on any two outputs. A 4K video source device can simultaneously display 4K content to 4K monitor(s) and 1080p content to 1080p monitor(s) via downscaling. *Note: HDR10+ and Dolby Vision are NOT supported SIMPLE INSTALLATION No software is required F r e e L i f e t i m e S u p p o r t All gofanco products include lifetime technical s upport from our team in the Silicon Valley. Click on our name in the buy box and select " A s k a Q u e s t i o n " What's in the Package 4x4 HDMI Matrix 4K 60Hz Power adapter IR remote control Grounding screws - Terminal block - Surface mount accessories User’s guide PRO-Matrix44-SC Matrix44HD2-BSC Matrix44HD2-LT Matrix88HD2 Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews 3.9 out of 5 stars 47 4.0 out of 5 stars 90 4.0 out of 5 stars 90 4.0 out of 5 stars 90 Price — no data $99.88$99.88 $112.41$112.41 $559.88$559.88 Roles 4x4 HDMI Matrix 4x4 HDMI Matrix 4x4 HDMI Matrix 8x8 HDMI Matrix Resolution (Max) 4K 60Hz 4K 60Hz 4K 60Hz 4K 60Hz HDMI 2.0 2.0 2.0 2.0 HDCP 2.2 2.2 2.2 2.2 Connector Type HDMI HDMI HDMI HDMI Number of Ports 4 Inputs / 4 Outputs 4 Inputs / 4 Outputs 4 Inputs / 4 Outputs 8 Inputs / 8 Outputs TAA Compliant ✓ - no data - no data - no data Controls Buttons / Remote / RS232 / IP / Control4 Buttons / Remote / RS232 Buttons / Remote Buttons / Remote / RS232 / IP / Web GUI Resolution Downscale ✓ ✓ ✓ ✓ Surface Mounting ✓ ✓ ✓ ✓ 1U
