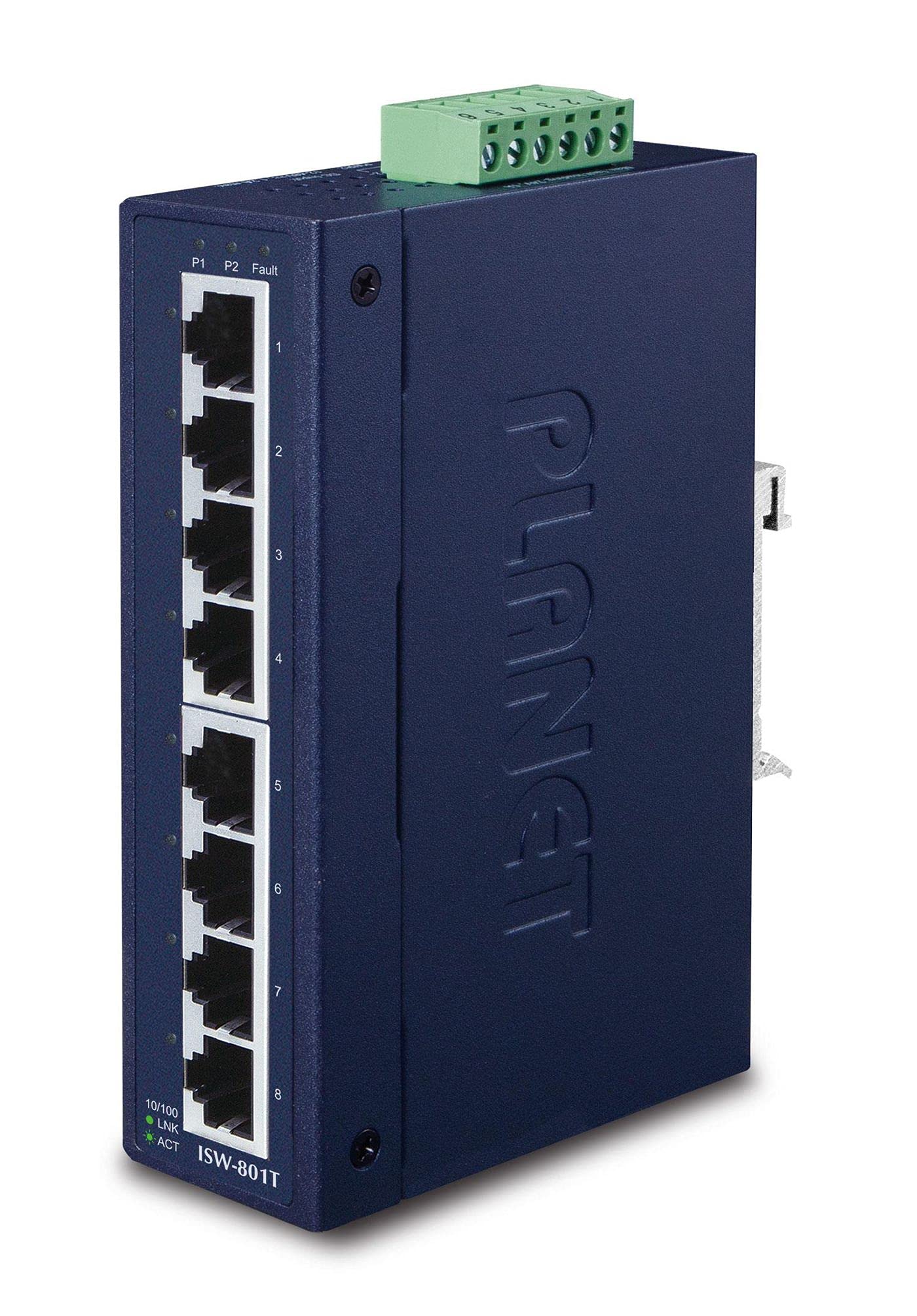

The ISW-801T is an industrial grade, 8-Port 10/100Mbps Industrial Faster Ethernet Switch designed to withstand the steep environmental conditions typical of industrial environments. The ISW-801T features a slim, compact IP-30 encasement that allows DIN rail or wall mounting. The Wide-Operating Temperature model operates in temperatures ranging between -40 to 75°C. The ISW-801T features a flexible power supply source that supports various voltages ranging between (12 to 48 V DC) to support to applications that need dual or backup power inputs.The ISW-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of plant floors or curb side traffic control cabinets. With the ability to operate in temperatures ranging from -40 to 75° C, the ISW-801T can be placed in almost any difficult environment. The ISW-801T is a power supply source that supports a wide range of voltages (12 to 48V DC) to support applications requiring dual or backup power inputs.The ISW-801T offers a high-performing switch architecture. With 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps and the 2K MAC Address table, the ISW-801T can transfer packets at wire-speeds. The flow control function enables the ISW-801T to regulate data transfer. All RJ-45 copper interfaces in the ISW-801T support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard auto-MDI / MDI-X support can detect type of connection required regardless if special straight or crossover cables are used.
