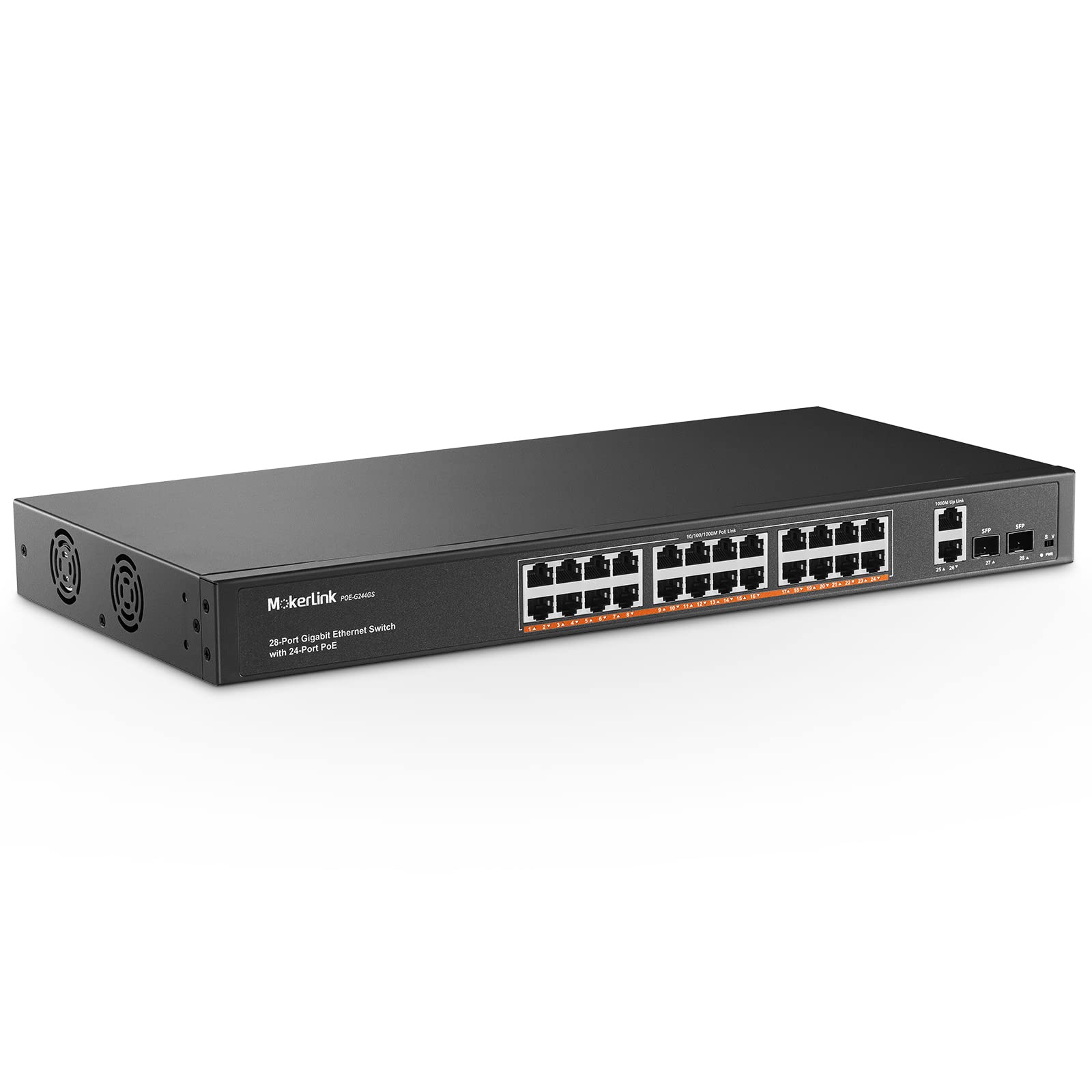

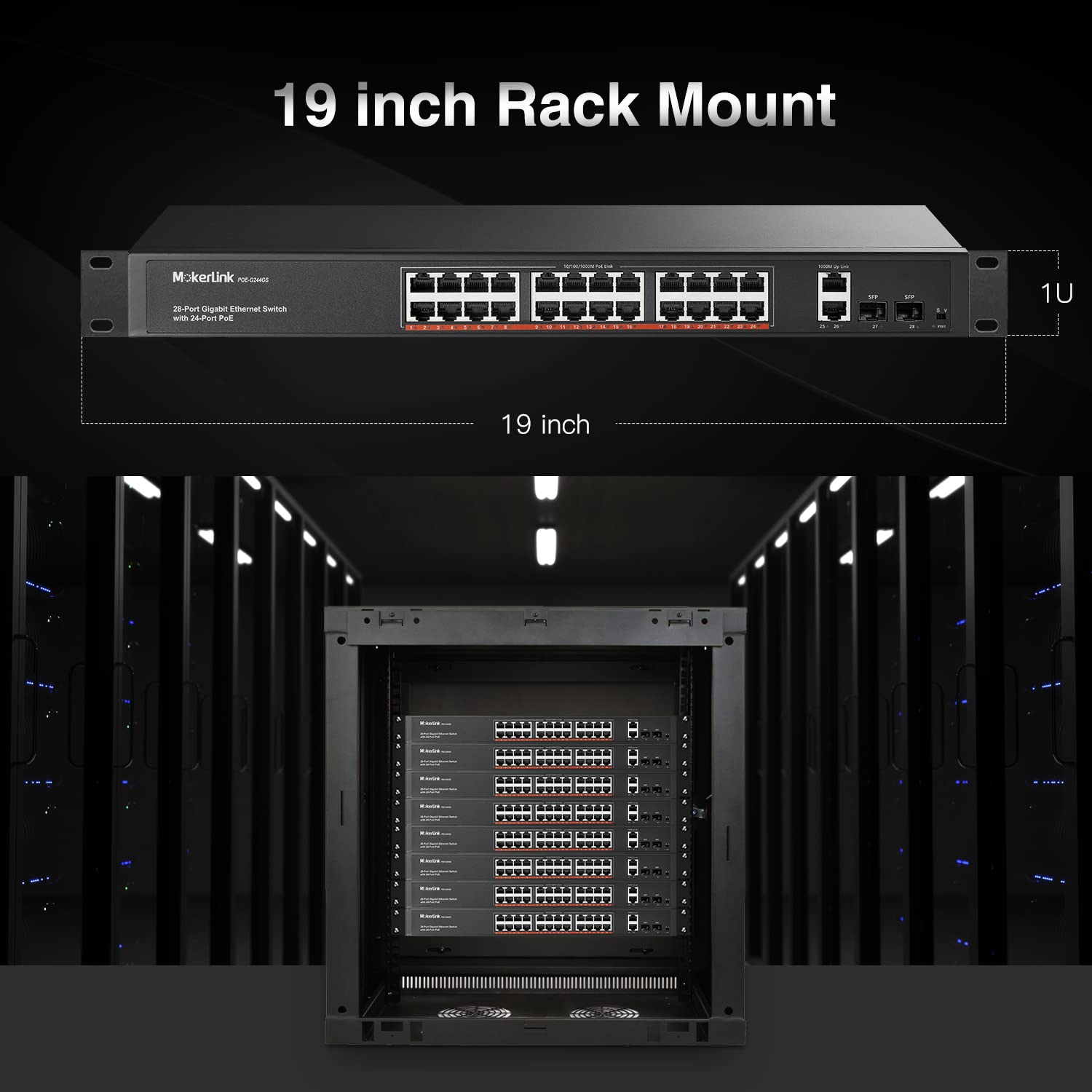

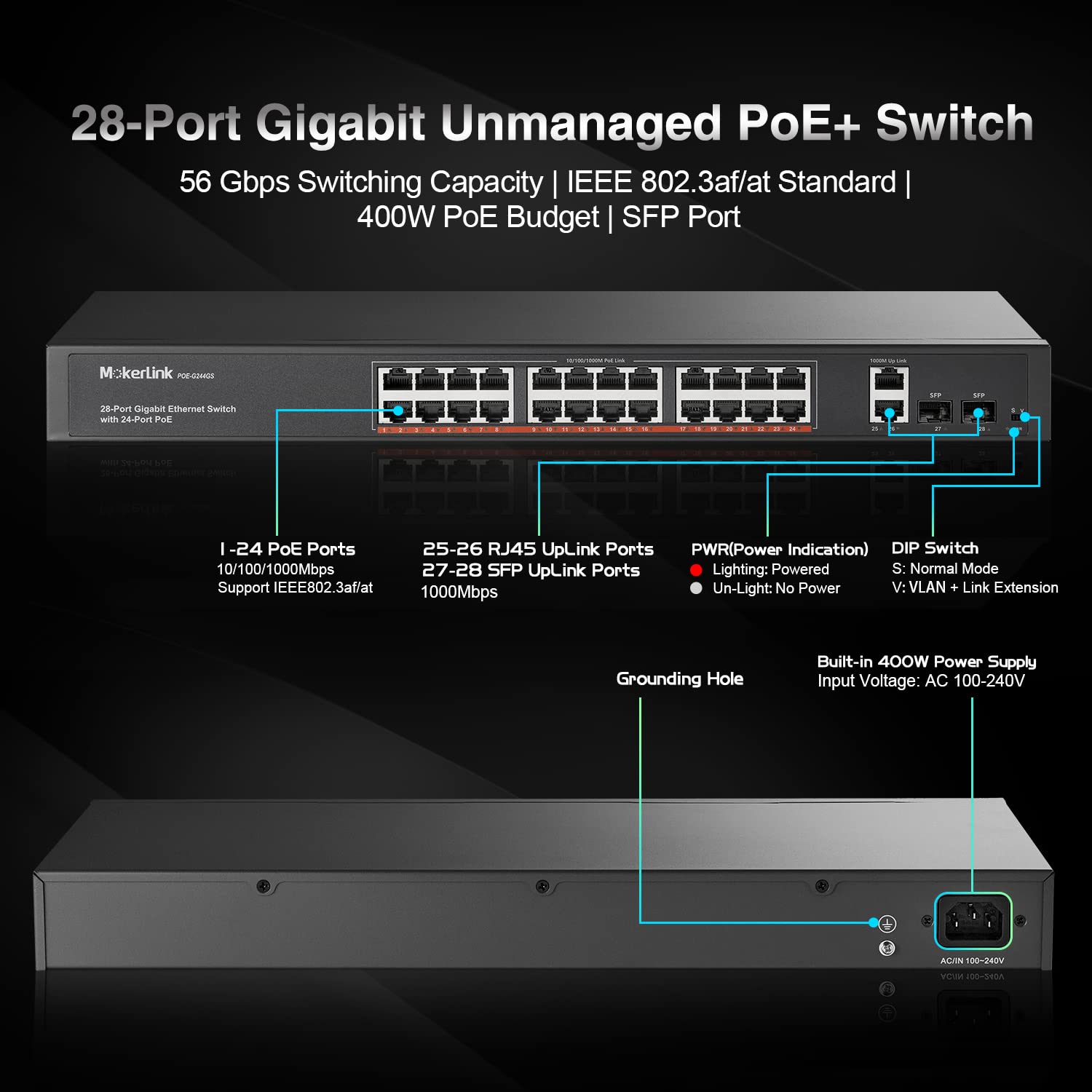

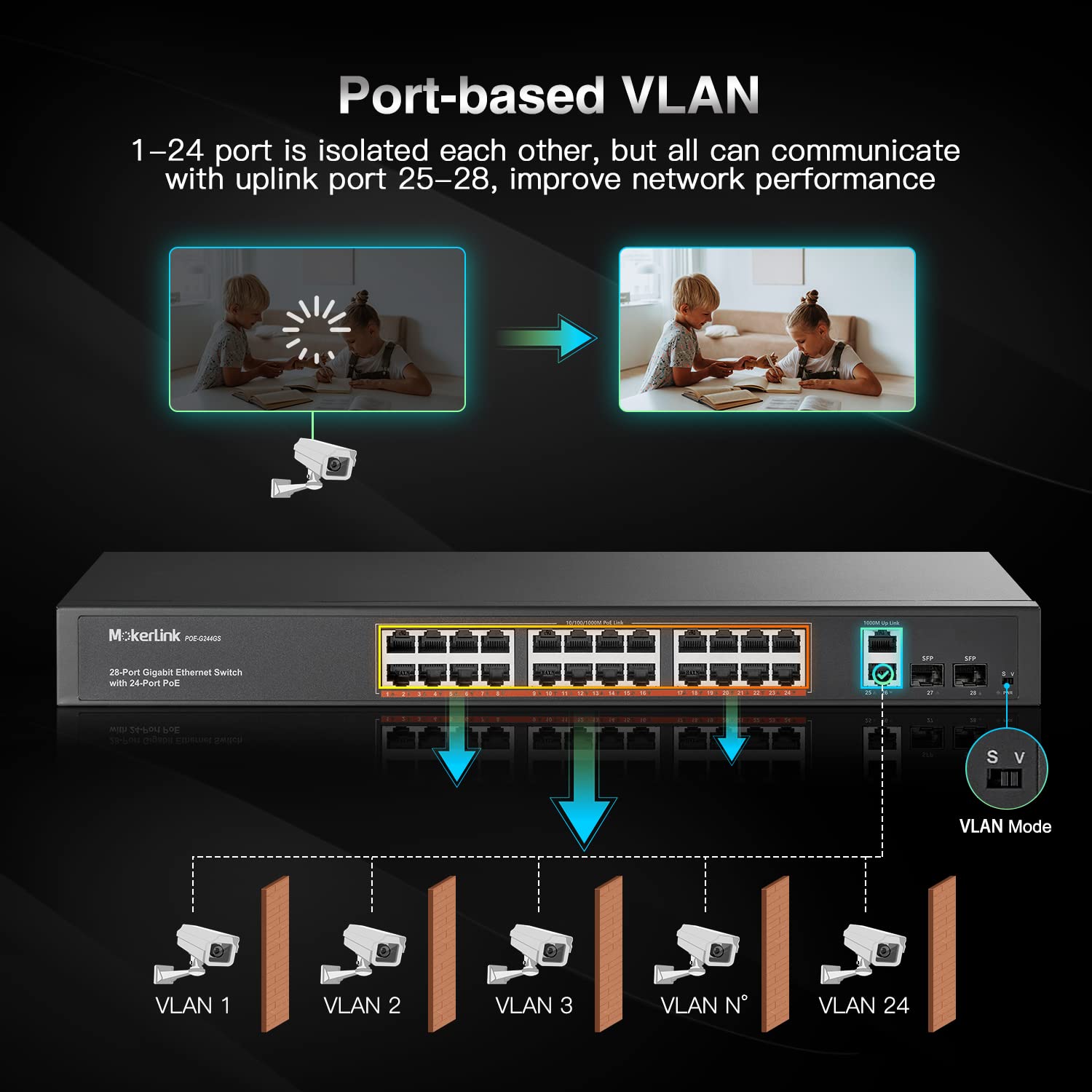

Key Features: 28-port gigabit PoE switch with 24 port gigabit PoE + 2 port gigabit RJ45 uplink + 2 port gigabit SFP uplink, using high-quality high-speed network IC and the most stable PoE chip, PoE port meets IEEE802.3af/at standard, The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af/IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data. 24* 10/100/1000M PoE Ports + 2* Gigabit RJ45 Uplink Port + 2* Gigabit SFP Uplink Port Support IEEE802.3、IEEE802.3u、IEEE802.3x、IEEE802.3ab、IEEE802.3zCompatible with IEEE802.3at (30W) and IEEE802.3af (15.4W)Ethernet port supports 10/100/1000Mbps adaptive and PoE functionsFlow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standardSupport port auto flip (Auto MDI/MDIX)All ports support wire-speed switchingAutomatically supplied to adaptive devices1-24 port support port-based VLANSupport 19'' 1U rack mount PoE Devices Auto Detection MokerLink 24 port gigabit PoE switch compatible with IEEE 802.3af/at protocol, it determines and delivers the exact power supply to your devices with up to 30W power output on one PoE port. If a device not IEEE802.3af/at compliant, only network data will be transmitted through the LAN cable to avoid from being damaged by incorrect power sending. PoE Wathdog(PD Lifeguard) The PoE switch uses intelligent technology to monitor in real time the status of PoE devices. Once the poe devices stops working and does not respond to the switch, the switch will automatically reboot the PoE power to reboot the PoE devices, making managment easier. Port-based VLAN When you enable the extend mode with DIP switch(chiange to V), switch divides traffic for ports 1-24 to prevent PoE devices muliticast or broadcast storm from affecting each other. Full Gigabit Ports 24 port PoE switch includes 24 gigabit ports and 4 gigabit uplink port, it is use for applications that also require high data throughput due to the use of high-resolution camera. Furthermore, the devices support jumbo frames, which enables an additional increase in efficiency in networks with high data volumes. Opation Over Wide Temperature Ranges Unique design make sure PoE switch long-term stable operation over temperature spans of -10 and +55°C. SFP Modual Support 24 port gigabit PoE switch support up-link SFP ports, The switch's port 27-28 use fiber cable to connect wired network segments throughout buildings or across campuses extending beyond the limitations of Ethernet cabling. Good Heat Dissipation The 24 port gigaibt poe switch fetures with cooling fan, Through the fan cooling technology, the flow rate of the fluid in the convection process increases, greatly increasing the rate of heat emission. An external device integrated into a switch to bring in forced air when natural convection is insufficient to dissipate heat. Support 19'' Rack Mount Support rack-mount in 19'' cabinet, and includes all the necessary mounting hardware in the box .Save your space and easy to manage. Lighting Protection The PoE switch fetures with 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system. Product Specifications Ports 24*10/100/1000Mbps PoE Port + 2*Gigabit RJ45 Uplink Port + 2*Gigabit SFP Uplink Port LED Indicators PWR (power supply), ACT (Link&Data) DIP Switch V(VLAN Mode): 1-24 port is isolated each other, but all downlink ports can communicate with uplink port 25-28, S(Default Mode):All ports communicate freely Power Input AC 100-240V, 50/60Hz Total Power Supply 400W Mounting Desktop / Rack-Mount Fan Included cooling fan Product Dimension (L*W*H) 440mm*210mm*44mm Weight 2.4kg Switching Capacity 56Gbps Throughput 38.7Mpps Packet Buffer 4M MAC Address 8K PoE Protocol IEEE802.3af (15.4W) IEEE802.3at (30W) Pin Assignment 1/2(+), 3/6(-) Working Environment Working Temperature：-10~55°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet 28-Port Gigabit Managed PoE Switch 28-Port Gigabit Managed Ethernet Switch 26-Port Gigabit Unmanaged PoE Switch 28-Port Gigabit Unmanaged PoE Switch 48-Port Gigabit Unmanaged PoE Switch 26-Port Gigabit Unmanaged Ethernet Switch Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 445 3.7 out of 5 stars 7 4.4 out of 5 stars 713 4.3 out of 5 stars 445 4.4 out of 5 stars 711 4.4 out of 5 stars 711 Price $215.98$215.98 — no data $149.99$149.99 $145.89$145.89 $299.67$299.67 $179.67$179.67 Ethernet 24*10/100/1000M POE Ports + 4*Gigabit SFP/TP Combo Ports + 1*Console Port 24*10/100/1000M RJ45 Ports + 4*Gigabit SFP UpLink Ports + 1*Console Port 24*10/100/1000M PoE Ports + 2*Gigabit SFP UpLink Ports 24*10/100/1000M PoE Ports + 2*Gigabit RJ45 UpLink Ports + 2*Gigabit SFP UpLink Ports 48*10/100/1000M PoE Ports 48*10/100/1000M RJ45Ports PoE Support Yes No Yes Yes Yes No Managed Support Yes Yes No No No No PoE Protocol IEEE802.3af (15.4W) IEEE802.3at (30W) / IEEE802.3af (15.4W) IEEE802.3at (30W) IEEE802.3af (15.4W) IEEE802.3at (30W) IEEE802.3af (15.4W) IEEE802.3at (30W) / Total Power Budget 300W 36W 300W 400W 400W 400W Switching Capacity 56Gbps 56Gbps 52Gbps 56Gbps 112Gbps 112Gbps Packet Buffer Memory 4M 4M 4M 4M 4M 4M Size 440*204*44mm 440*204*44mm 440*204*44mm 440*210*44mm 440*200*45mm 440*200*45mm Weight 3.9kg 2kg 3.2kg 2.4kg 2.5kg 3.0kg Extend Function L2+ Software Function L2+ Software Function Port-based VLAN 250m PoE Extend Port-based VLAN / Dual Redundacy Power Supply
