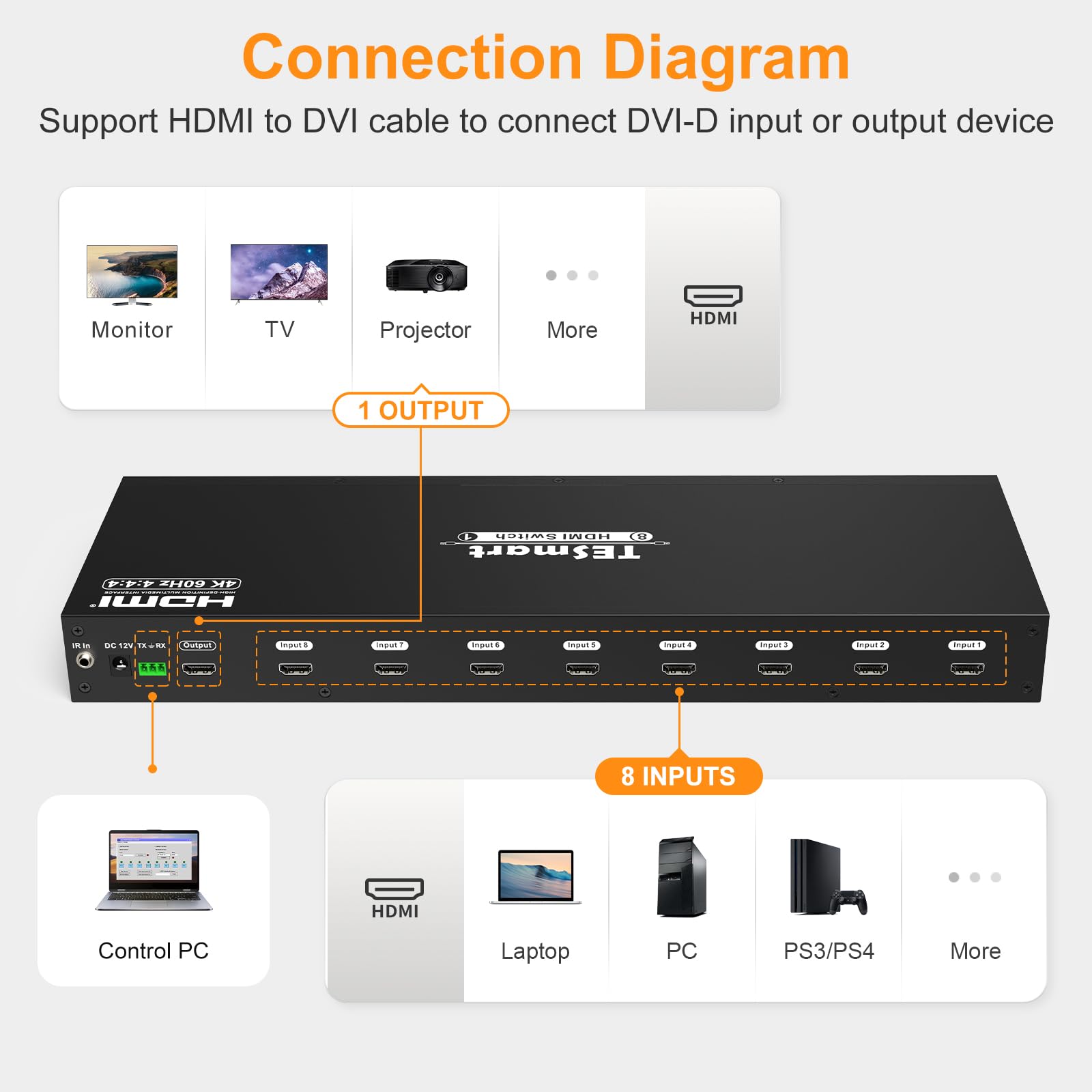

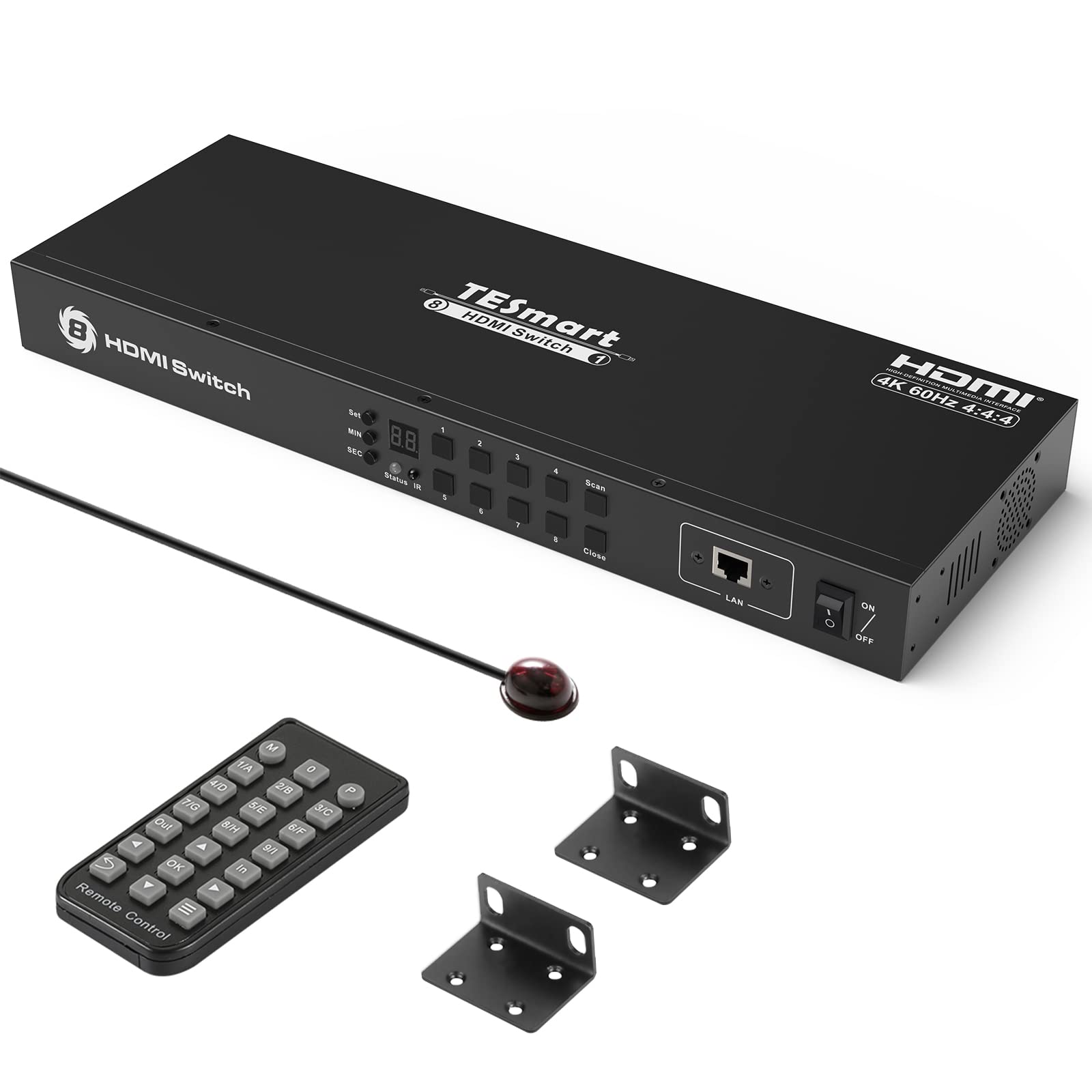

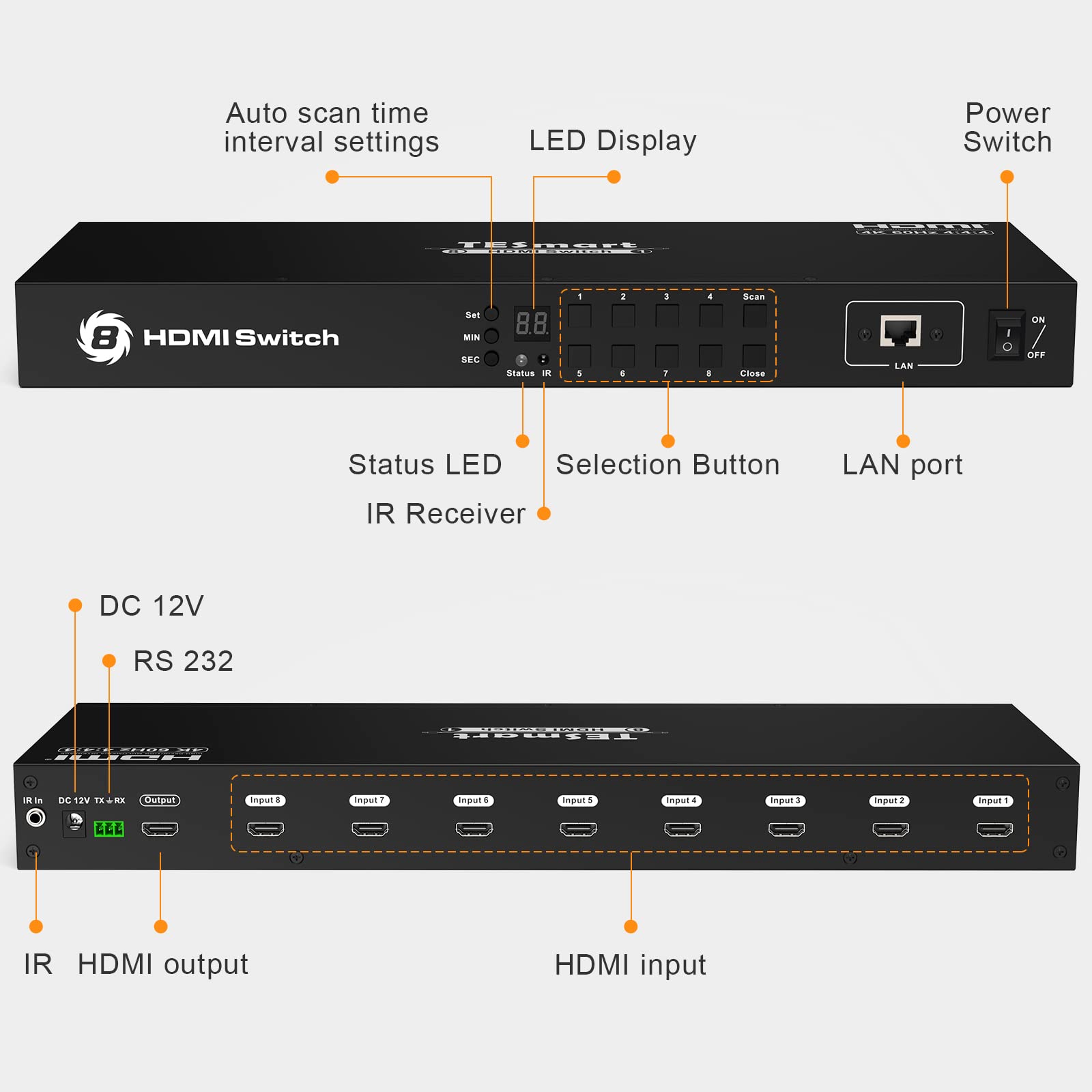

TESmart 8x1 HDMI switch 4K@60Hz 4:4:4 The HSW0801A1U 8-port HDMI switch allows up to 8 Ultra HD sources to be routed to an Ultra HD screen. Supports resolutions up to 4K@60Hz. Supports multiple control methods, front panel buttons, IR signals, RS232 serial commands or IP commands. With EDID emulators in each input port, you can ensure that PCs always have correct display information and prevent display settings from being changed when input ports are switched. With EDID emulators in each input port, you can ensure that PCs always have correct display information.Supports hot plugging, connecting or disconnecting devices to the HDMI switch at any time without turning off devicesSupport of automatic switching to monitor computers in a certain time intervalSupports front panel buttons, IR signals, RS232 serial commands or IP commands to control the HDMI switchSupports resolutions up to 3840*2160@60HzAutomatic input detection and switching (You can press button "M" on remote control to stop this function, or via the RS232 application to turn off Automatic input detection and switching)Supports DVI-D single-link sources and displays using HDMI-to-DVI adaptersHDCP2.2 compliant RS232/LAN control Connect the RS232/LAN port to any control termination, then it is able to select the input sources by sending RS232/LAN commands.You can download the commands from our website: te-smart.com Settings for the automatic switching of time intervals [Scan]: Press this button to start or stop automatic scanning between input 1 to input 8.[MIN]: Press [MIN] to scan a loop between 0~59 minutes.[SEC]: Press [SEC] to scan a loop between 0~59 seconds.[Set]: After setting the minutes and seconds, press [Set] to enter the setting of the final scan time interval. IR extension interface Connect the IR extension cable to the IR connector and place the infrared signal receiver in a highly visible location that can be easily controlled with the remote control. Support of HDCP 2.2 HDCP stands for High-Bandwidth Digital Content Protection, a copy protection method that eliminates the possibility of intercepting digital data in the middle of the data stream between the source and the display.It can be used without hesitation for products that are compatible with the HDCP scheme, such as DVD players, satellite and cable HDTV set-top boxes, etc. Mounting the switch on a rack It is very well suited for technical requirements, as it can be accommodated in 19-inch racks / cabinets.The package comes with two earhooks and some screws. Package list 1 * 8x1 HDMI switch1 * DC 12V 2A Power supply1 * IR remote control (Without battery, battery model is CR2025)1 * IR receiver cable1 * 3-pin connector (for RS232)2 * Rack ears1 * Quick Start Guide
