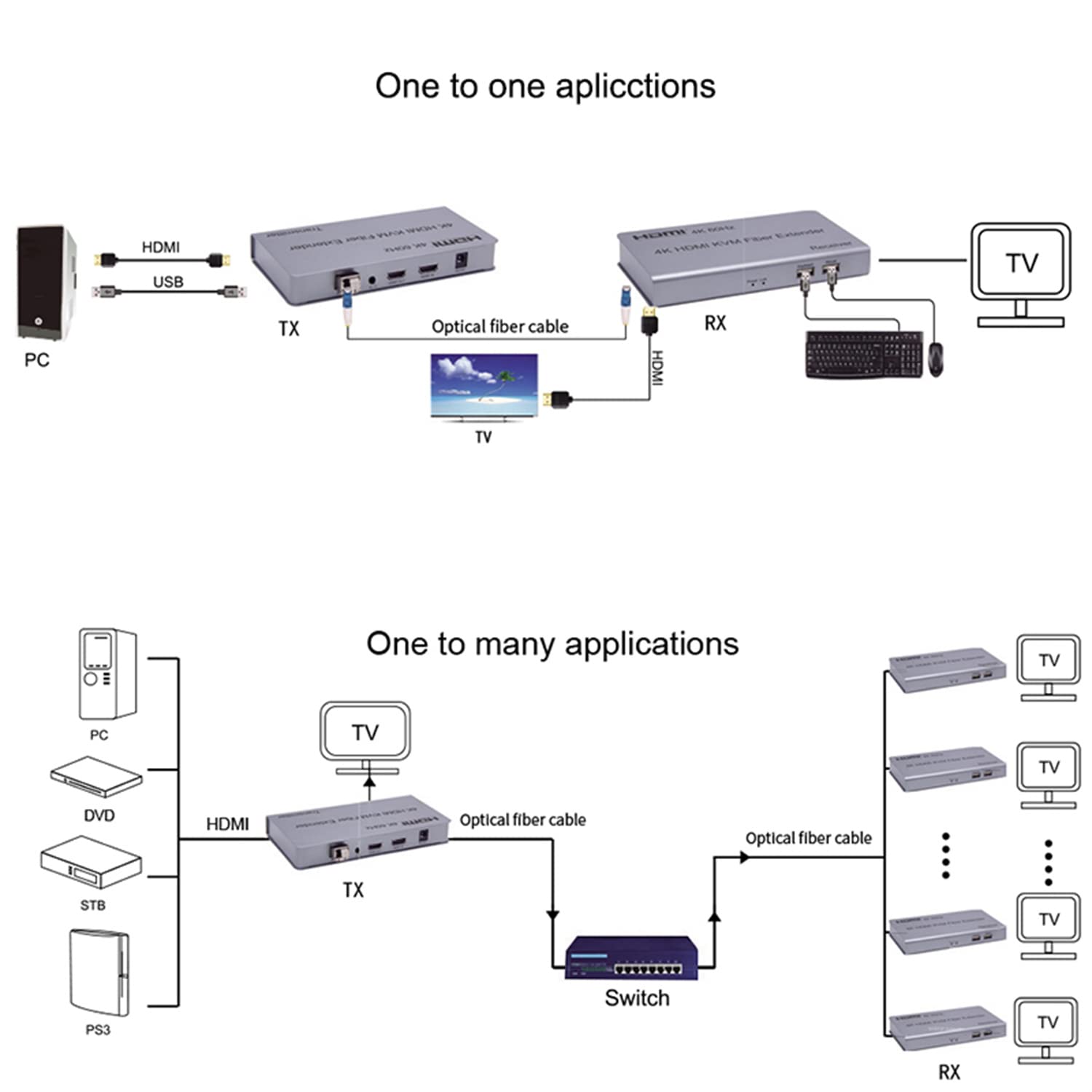

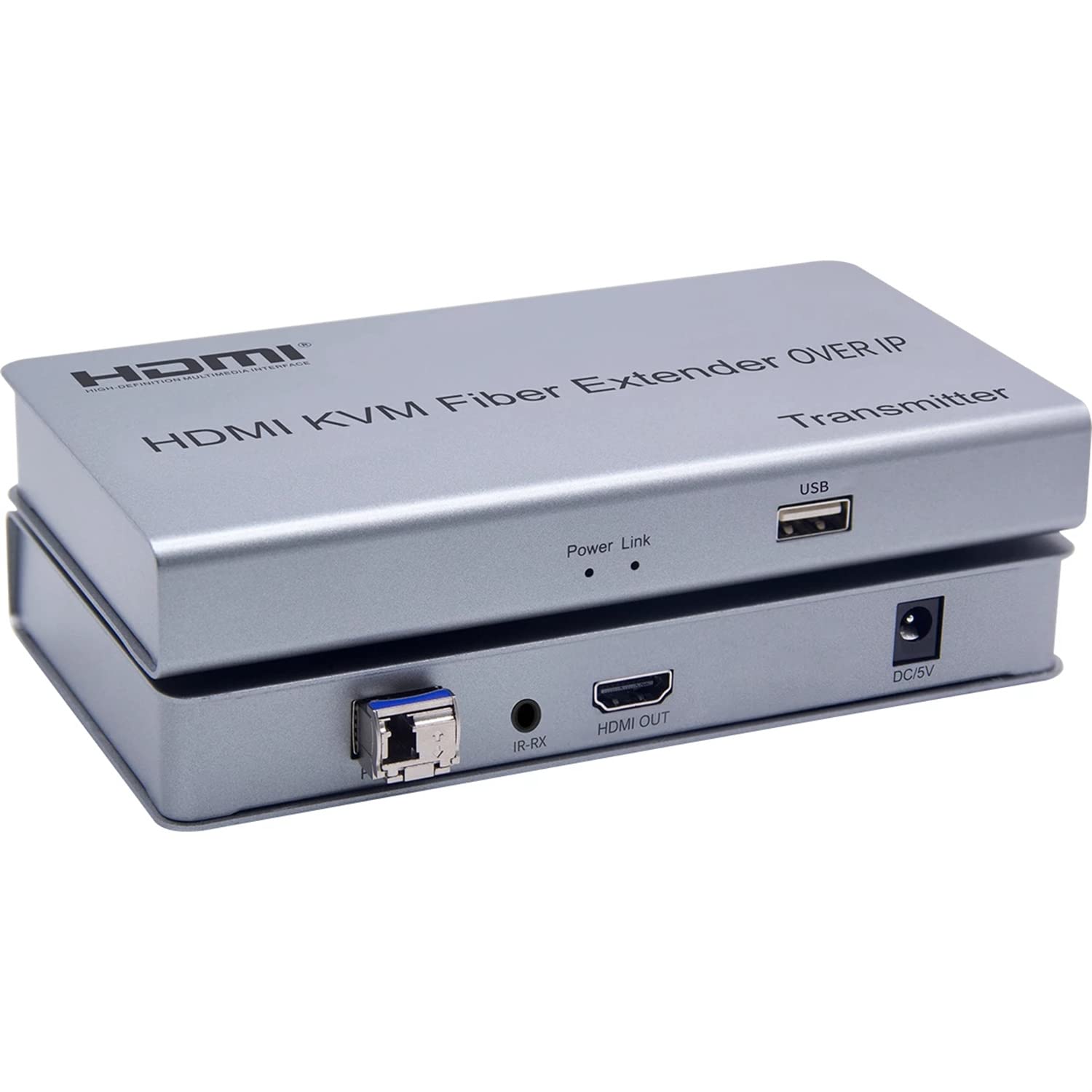

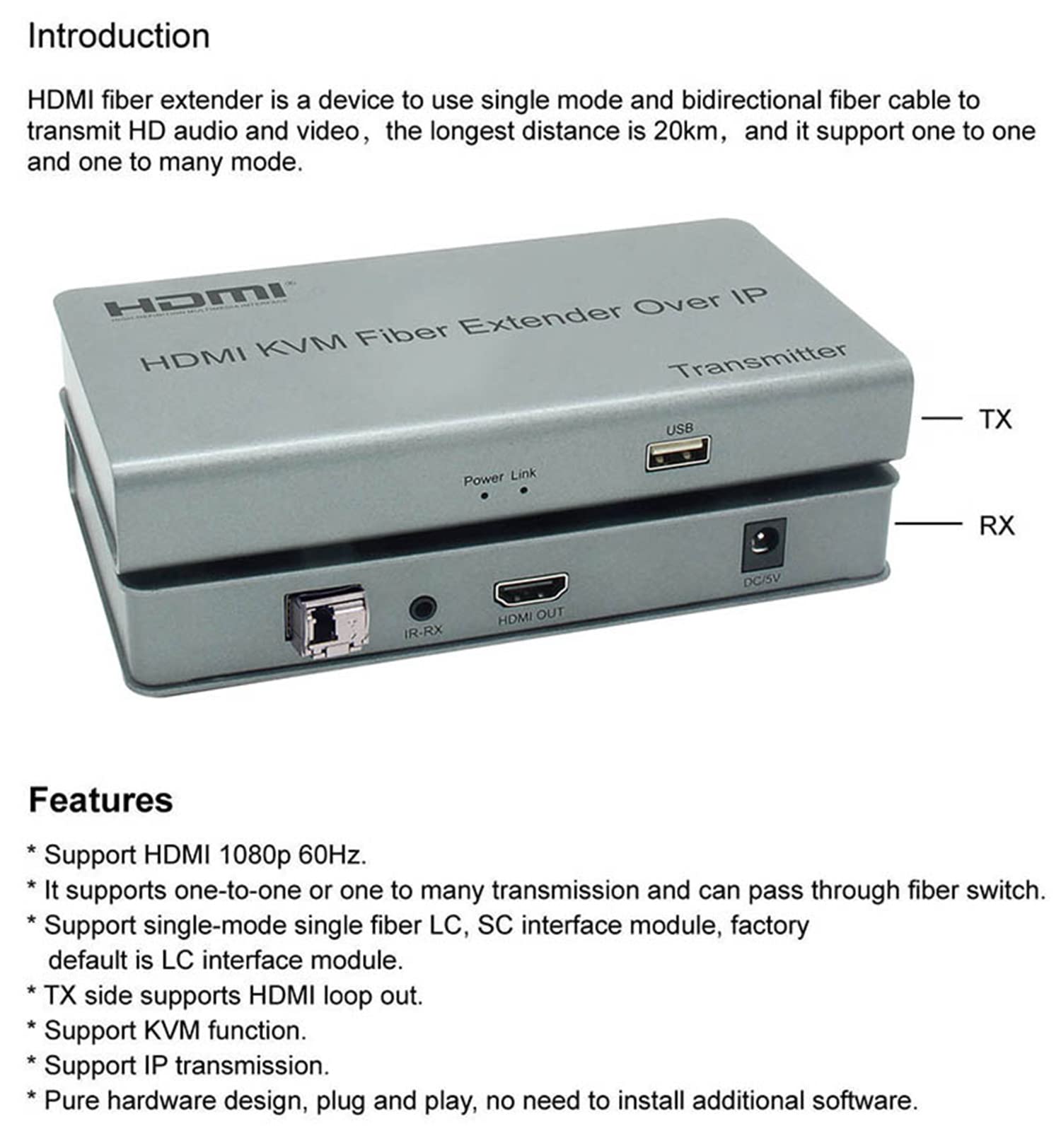

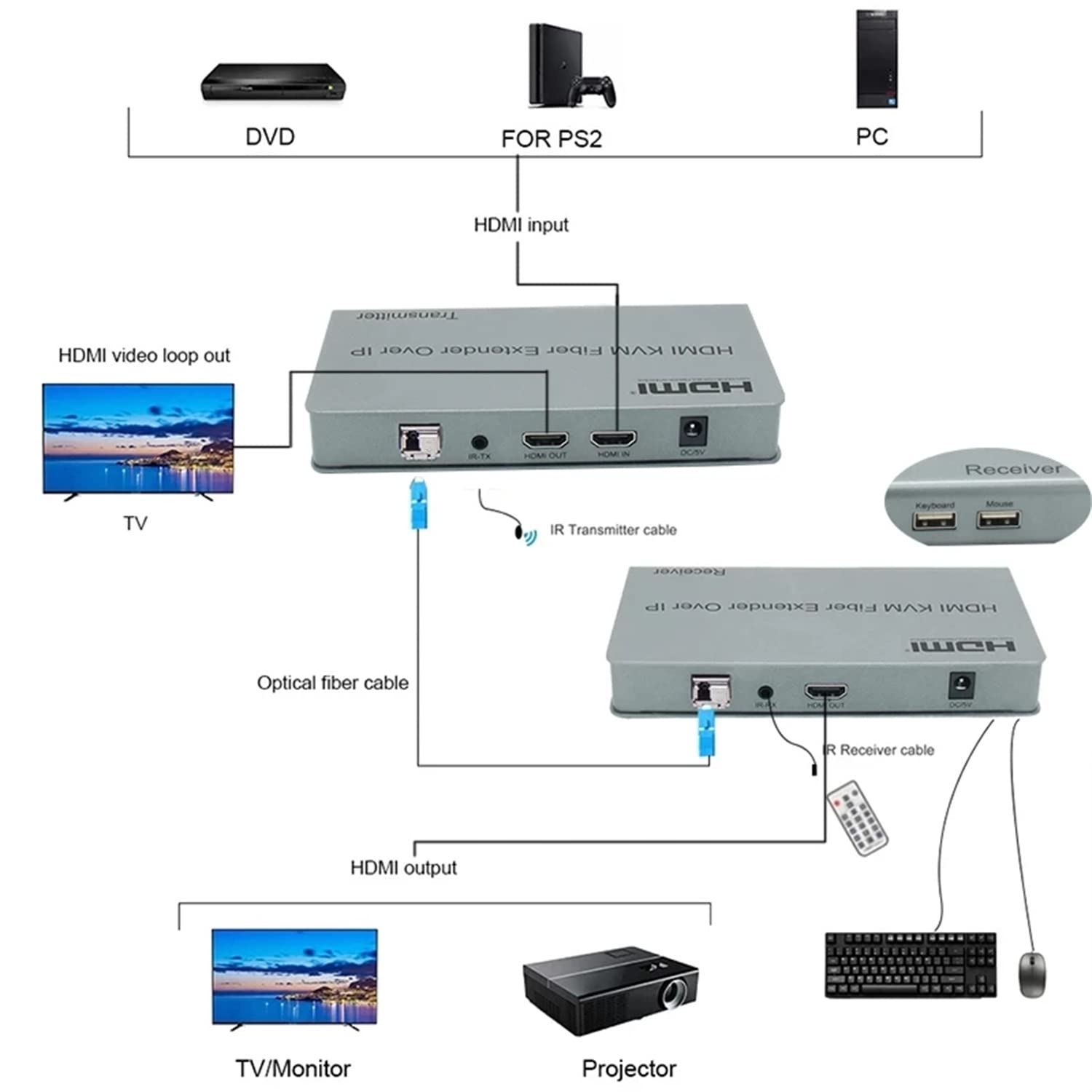

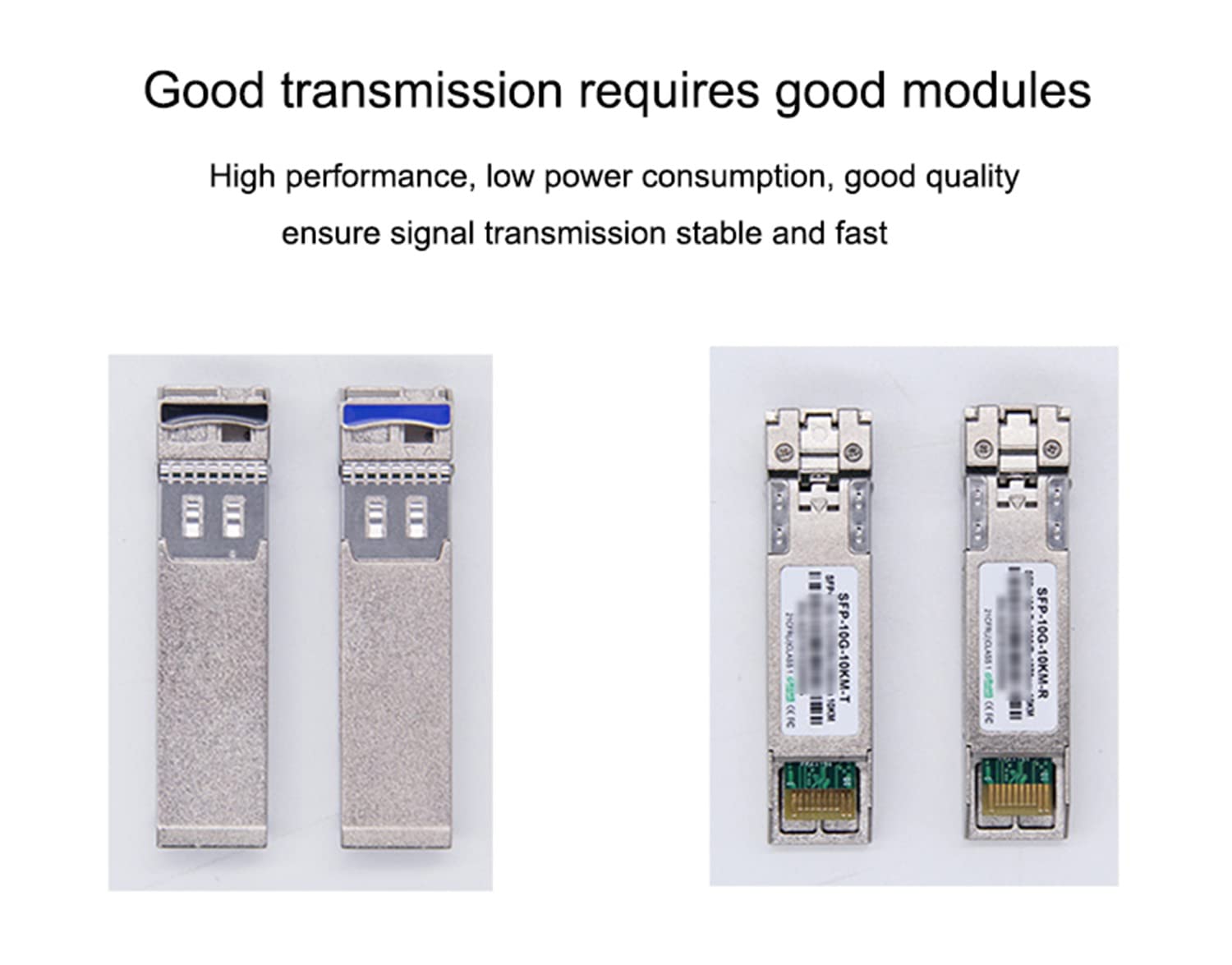

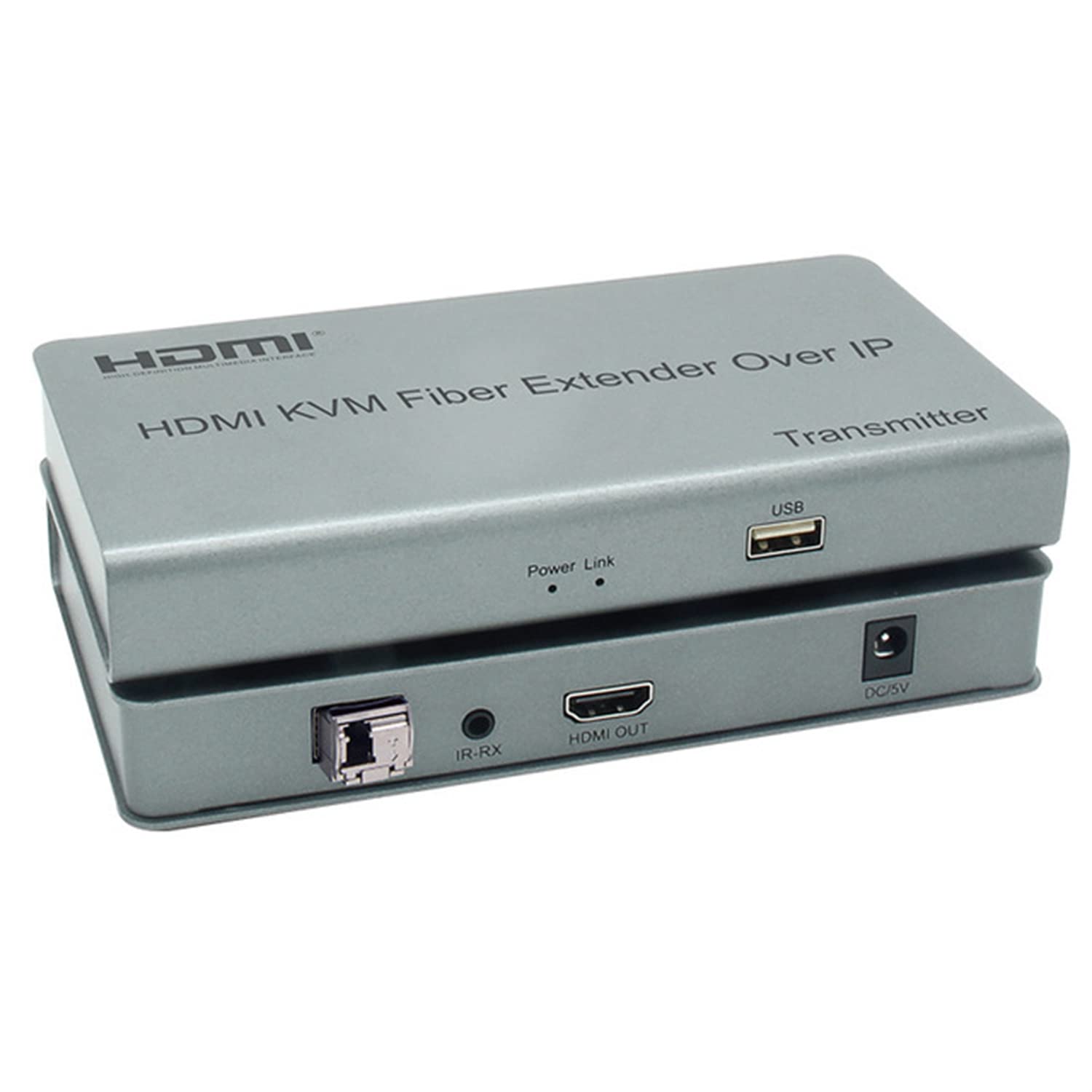

Introduction HDMI fiber extender is a device to use single mode and bidirectional fiber cable to transmit HD audio and video，the longest distance is 20km，and it support one to one and one to many mode * Support HDMI 1080p 60Hz. * It supports one-to-one or one to many transmission and can pass through fiber switch. * Support single-mode single fiber LC, SC interface module, factory default is LC interface module. * TX side supports HDMI loop out. * Support KVM function. * Support IP transmission. Description HDMI input resolution:1080p/720p/480p HDMI output resolution:1080p/720p/480p Power consumption:HDMI Sender:3W HDMI receiver:3W Power adapter specifications:input AC (50HZ, 60HZ) 100V-240V Output 5VDC/1A Support HDMI 1080 60Hz/HDCP1.4; Support point-to-point mode; Support signal mode and LC single core fiber transmission; Connection and operation 1. Connect the HDMI signal to the HDMI Transmitter with HDMI cable 2. Connect the HDMI receiver to the HDTV display with HDMI cable 3. Use one fiber cable up to 20km to connect the Fiber-LC type port of Transmitter and Fiber-LC type port of Receiver. 4. Connect two pieces of 5V power supply to the transmitter and receiver, power supply for the equipment and the LED indicator light on. When Link lamp on, equipment starts normal Packing list HDMI fiber extender transmitter X1PCS HDMI fiber extender receiver X1PCS DC 5V power supply X2PCS User’s Manual X1PCS
