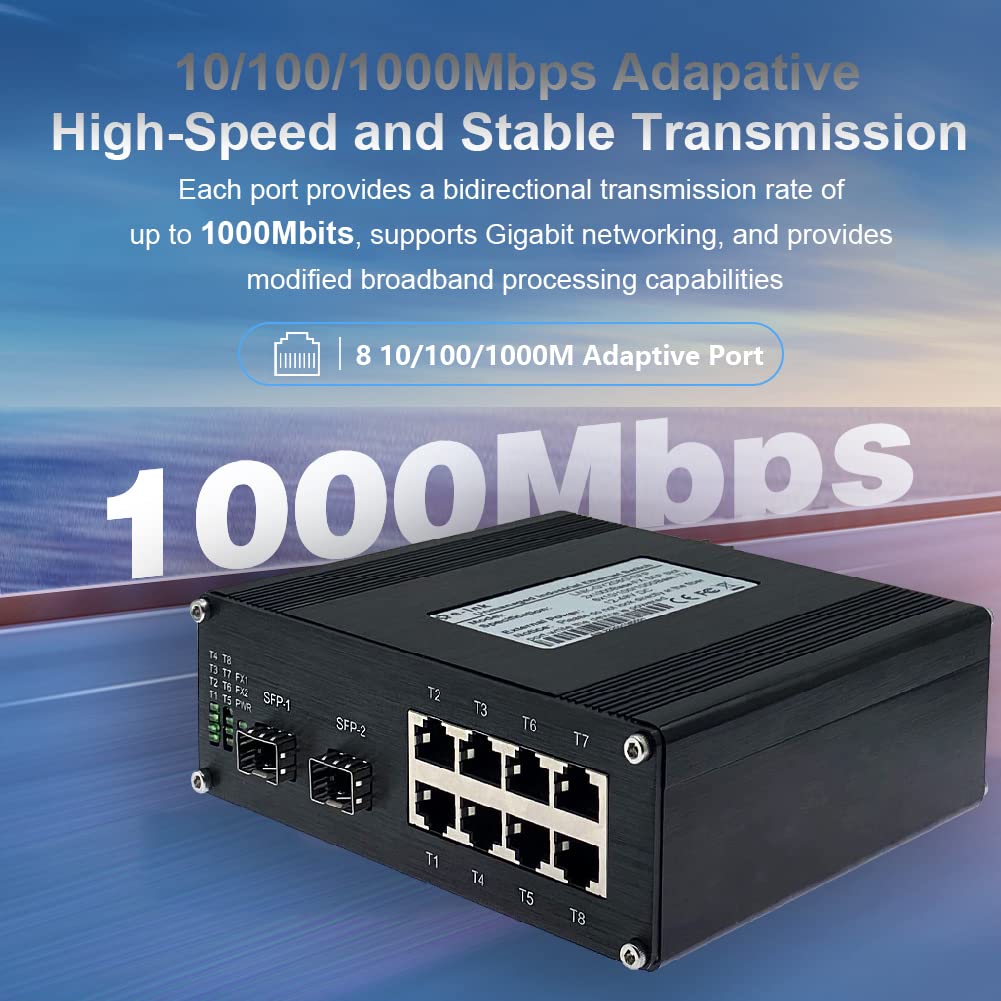

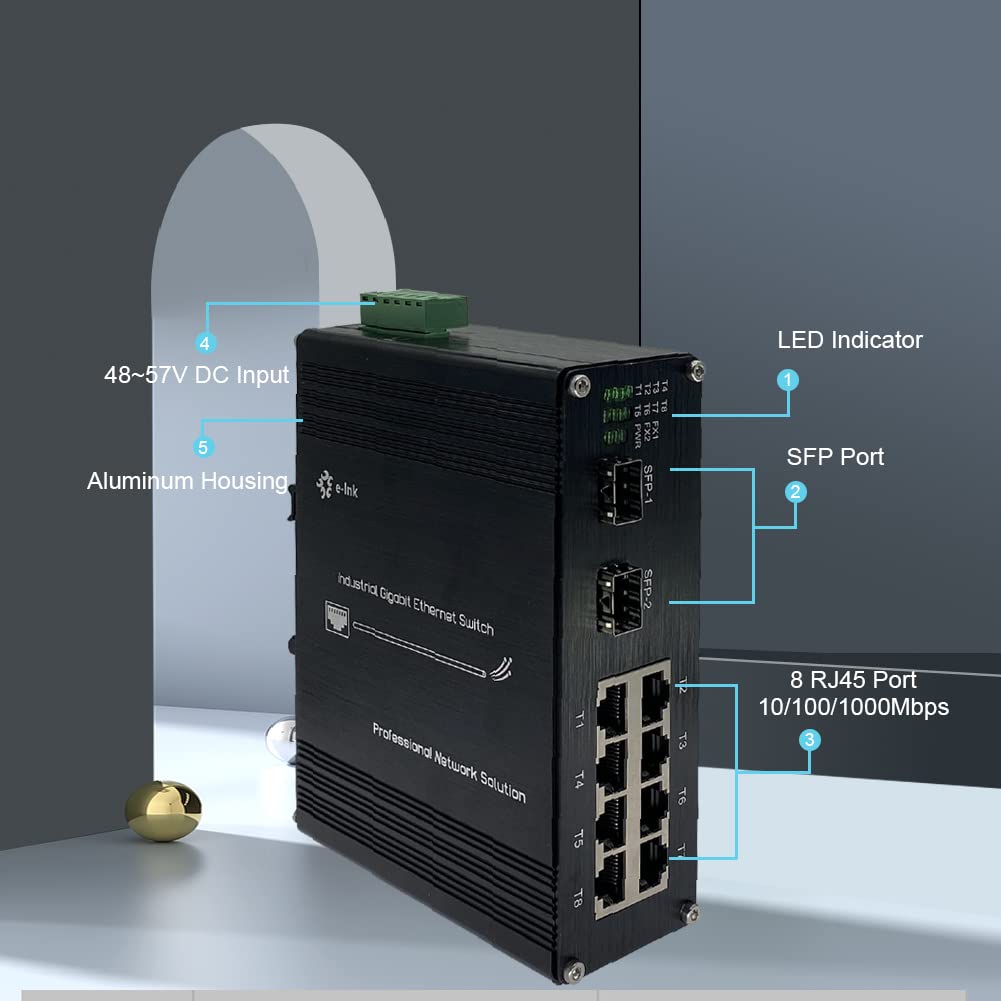

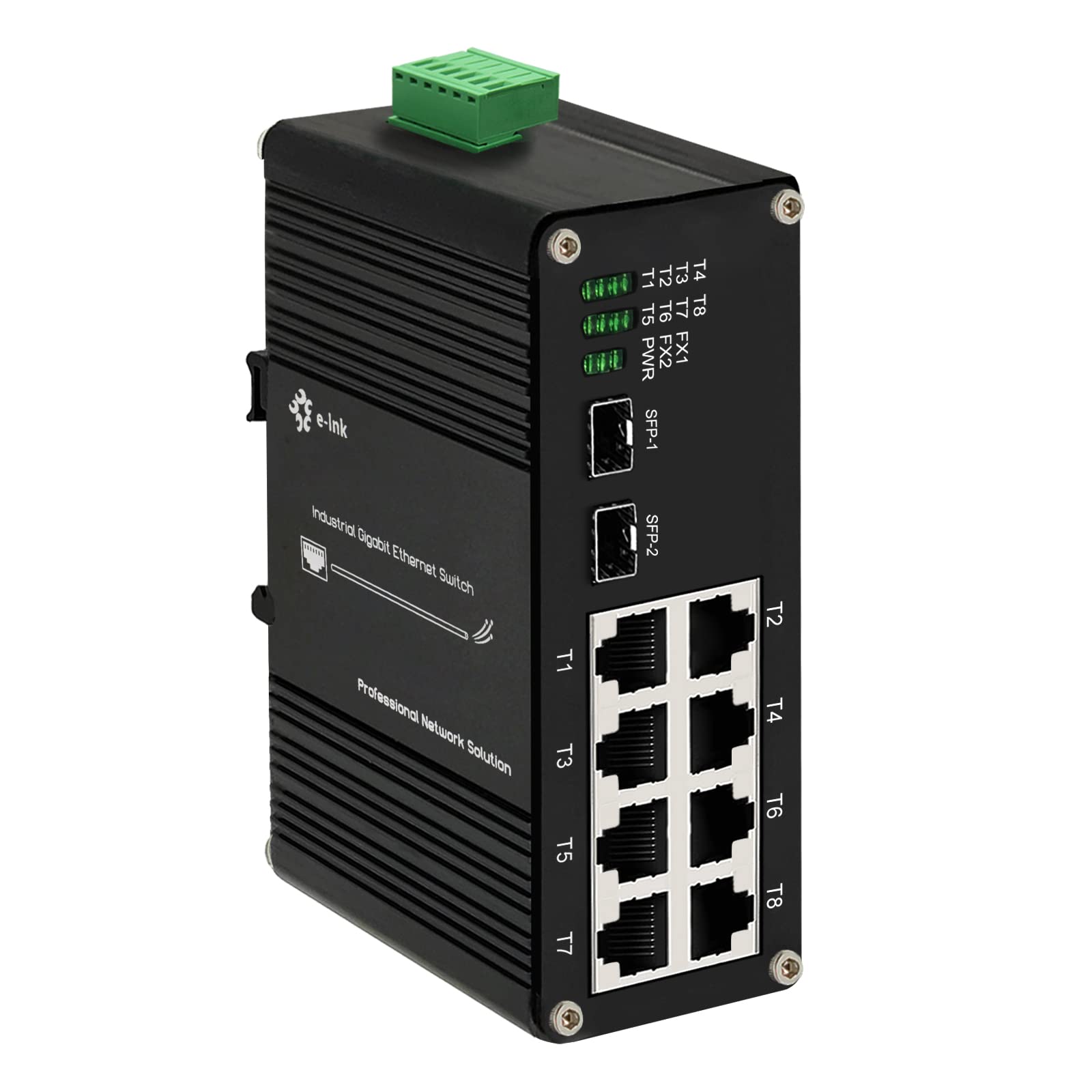

What's in the package: LNK-GY108G-SFP Industrial Ethernet POE+ Switch x1Gigabit Ethernet POE+ Switch User’s Manual 8 10/100/1000Base-TX + 2 1000Base-FX 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX Redundant Power Inputs About this item: Specification: Processing Type: Store-and-Forward Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet IEEE802. 3af (PoE), IEEE802. 3at (PoE+) Packet Buffer Memory: 2.75Mbit Max Packet Length: 9K Bytes. Address Table Size: 4K MAC Address Ethernet Port: RJ45 10/100/1000Mbps Gigabit Ethernet Optical Port: SFP - 1000Mbps Input Power: 48~57DC Casing Material: Aluminum Case Key Features: 8 10/100/1000Mbps PoE Ethernet 8 10/100/1000Base-TX + 2 1000Base-FX.10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX.Supports 802.3x Flow control.9K Bytes Jumbo Frame. Redundant Power Supply Adaptive Power Input: 48-57V DC.Support Redundant power input.Support hot plug and hot swap.The anti-reverse connection design provides dual power supply redundancy to ensure the uninterrupted running of the device. Flexible Installation Supports Wall-mount and DIN-Rail installation.Easy to install switch on the din-rail rack mount and wall.Flexible installation methods for easy selection. Fully Compatible, Widely Used Supported devices: Support active poe devices&non poe devices, It can supply power to the device, no need for a separate power supply, more convenient to use, Pay Attention to: The Steloproad POE switch is an active POE switch, it supports active PoE devices, and it can work when connected to your device. It also supports passive PoE devices and non-PoE devices, But please note: If your device is a passive PoE device or a non-PoE device, the switch can only transmit data and cannot power your device,so the connected device needs to be separately powered. Description: Up to 30W each poe port. Maximum 240W for the whole machine Turn on the expansion switch, the maximum transmission distance reaches 100 meters (328ft) Easily compatible with multiple network devices. Multi-scene and multi-purpose: Surveillance Work with IP Cameras, such as Data Center，Security Monitor, etc. Conference Call Works with PoE telephones, such as an office telephone network. Industrial Fields With the industrial grade quality, it can be widely used in the industrial fields. Features: Industrial Grade Quality – Use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.48~57V DC Input Redundant power– The 10 ports Ethernet PoE+ Switch support 48~57V DC Input, support Redundant power. Wide range voltage means you have more choice. And most probably don’t need extra power adapter when you have centralized DC power supply.Support Cascade Connection – The industrial PoE+ Switch with 2 SFP fiber ports, it support cascade connection, and it can save fiber cable resources. Mini Industrial 5 Ports Switch Mini Industrial 5 Port PoE Switch Mini Industrial 4 Gigabit Ethernet Switch with SFP Mini Industrial 4 Gigabit Ethernet PoE Switch with SFP Mini Industrial 10 Ports Switch Industrial 8 Gigabit Ethernet Switch with 2 SFP Buying Options Buying Options Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 55 4.2 out of 5 stars 55 4.2 out of 5 stars 55 4.2 out of 5 stars 55 4.2 out of 5 stars 50 4.2 out of 5 stars 50 Price $31.92$31.92 $74.40$74.40 $43.60$43.60 $89.00$89.00 $86.00$86.00 $177.00$177.00 Ethernet Port 5*10/100/1000Base-T RJ45 4*Port 10/100/1000Base-T 802.3af/at PoE + 1*Port 10/100/1000Base-T 4*10/100/1000Base-TX + 1*1000Base-FX 4*10/100/1000Base-TX 802.3af/at PoE + 1*1000Base-FX 10*10/100/1000Base-T RJ45 8*10/100/1000Base-TX + 2*1000Base-FX Uplink Port All 5 RJ45 Ports can be used as Uplink interfaces All 5 RJ45 Ports can be used as Uplink interfaces no data no data All 10 RJ45 Ports can be used as Uplink interfaces no data PoE Support no data ✓ no data ✓ no data no data PoE Standard no data IEEE802.3af(15.4W) IEEE802.3at(30W) no data IEEE802.3af(15.4W) IEEE802.3at(30W) no data no data PoE Power Output no data 120W(30W Per Port) no data 120W(30W Per Port) no data no data Power Input 12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12-48V DC,Redundant Power (4-pin Terminal Block) 12~57V DC, Redundant Power (6-pin Terminal Block) Switch Capacity 10Gbps 10Gbps 10Gbps 10Gbps 20Gbps 20Gbps Power Comsuption <6W <125W <5W <132W <10W <5W Processing Type Store-and-Forward Store-and-Forward Store-and-Forward Store-and-Forward Store-and-Forward Store-and-Forward Mount Method Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail&Wall Mount Din-Rail Din-Rail
