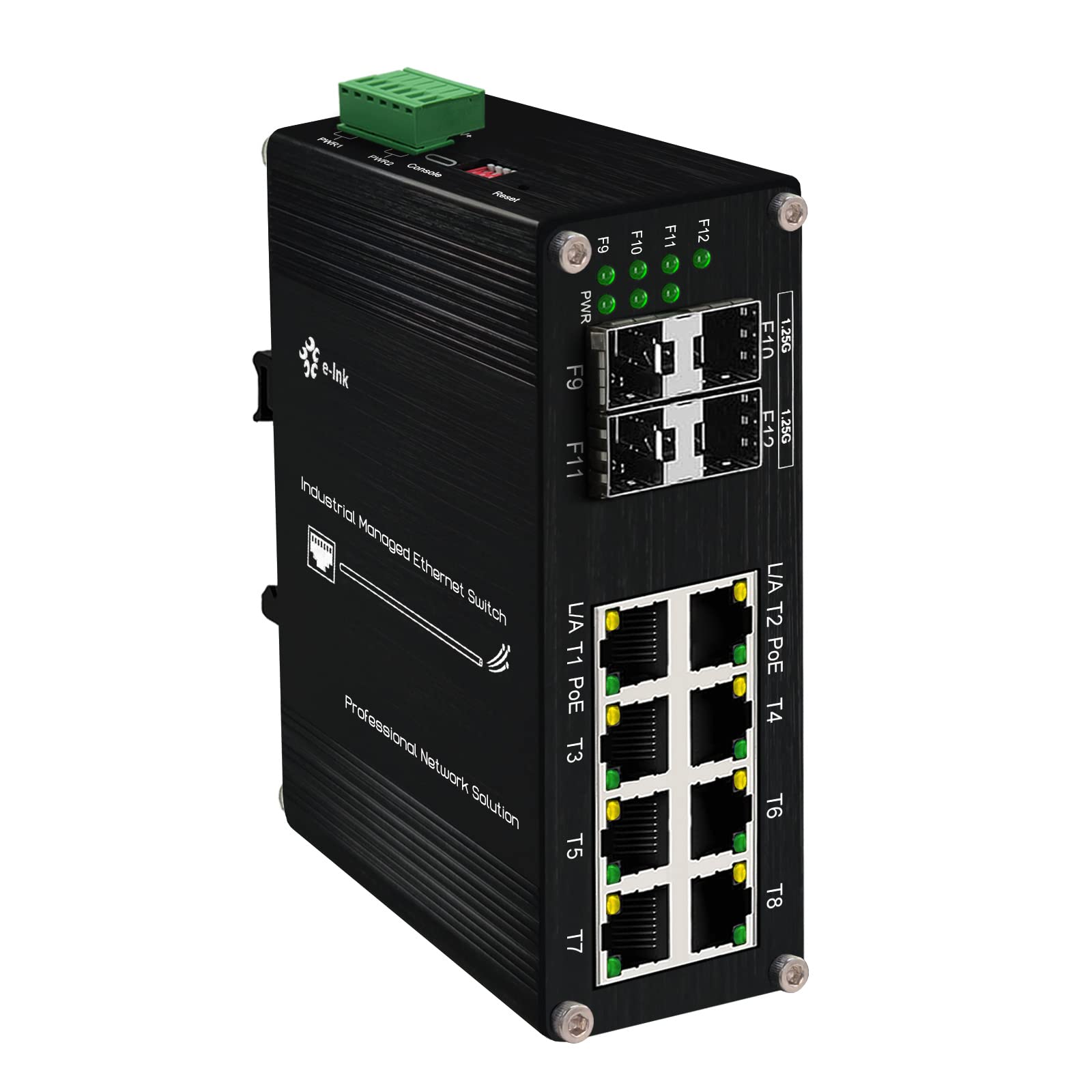

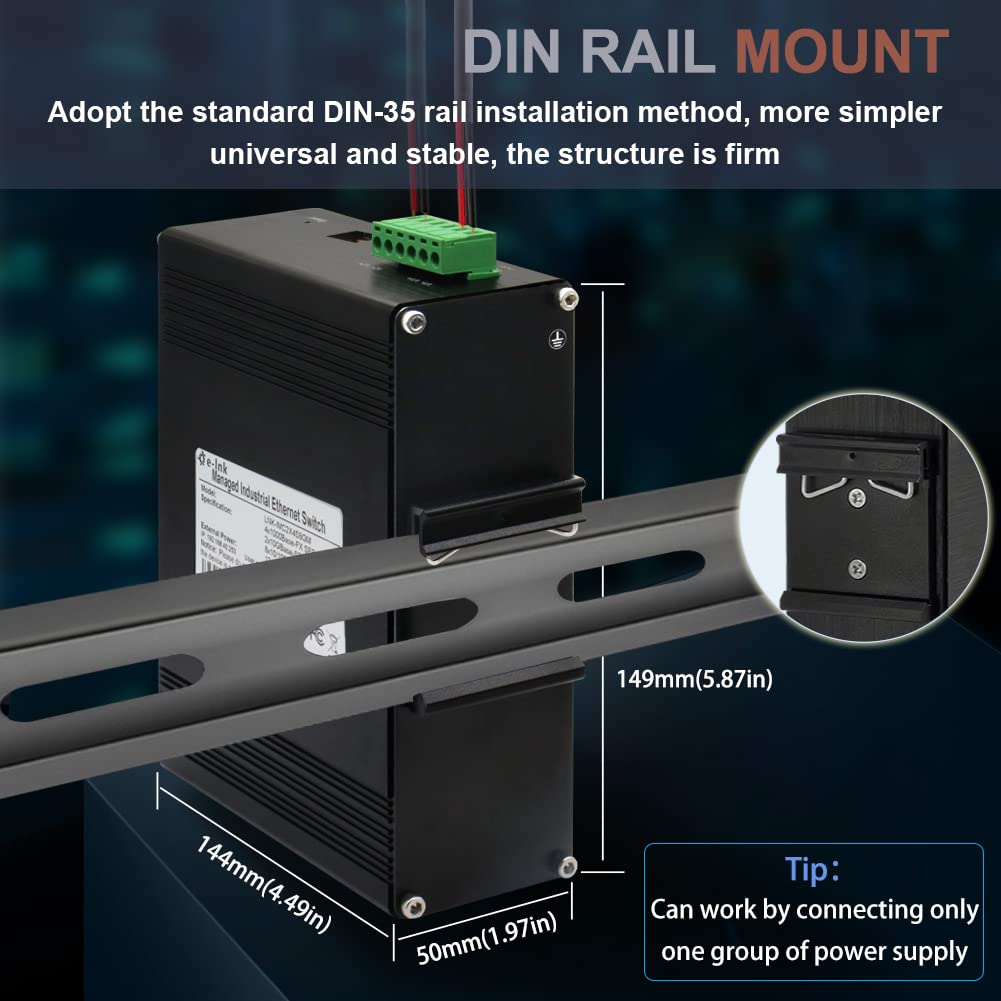

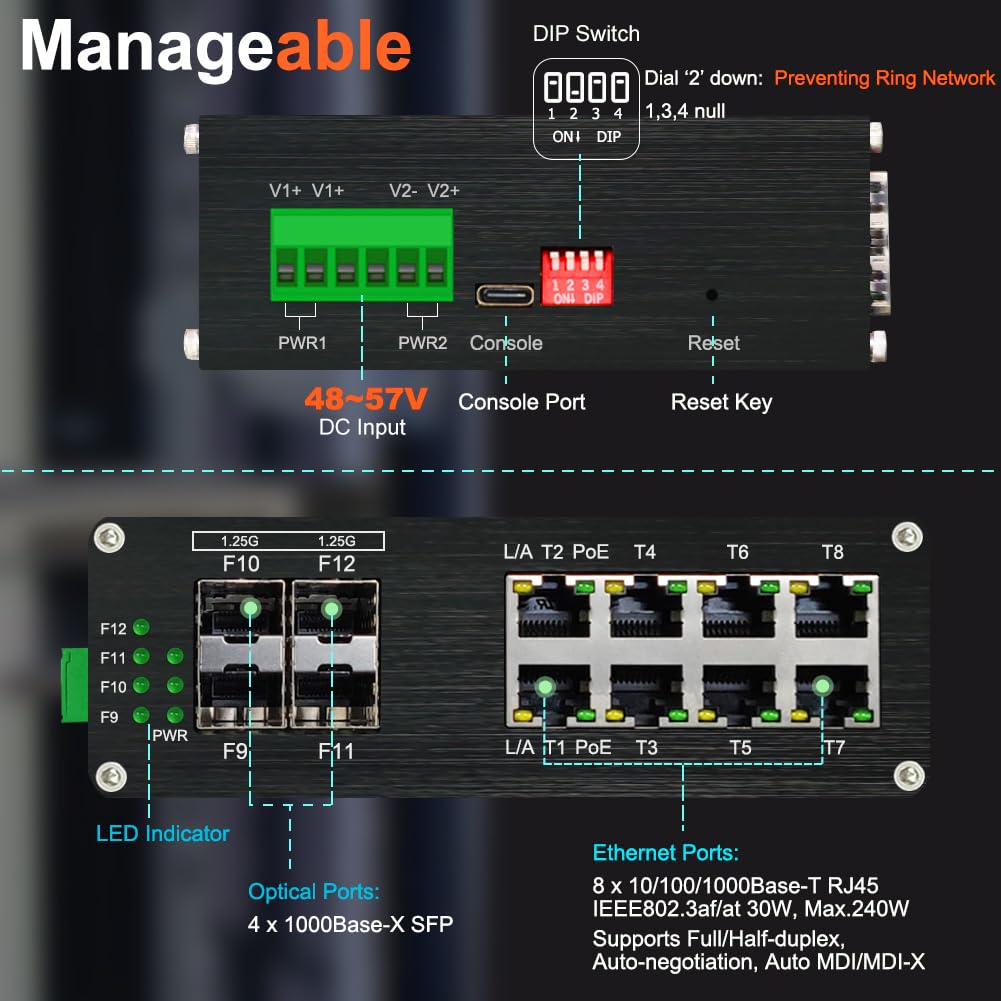

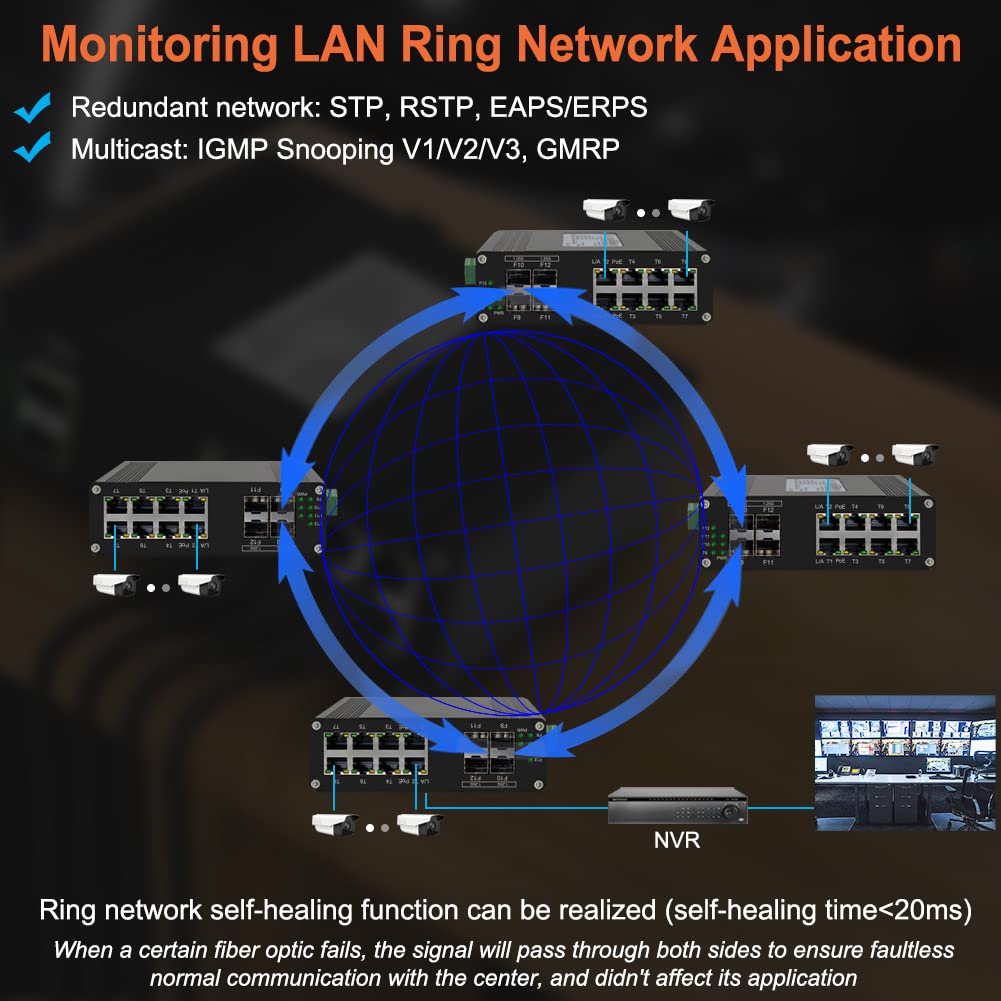

SFP module and power supply need to be purchased separately. Open Wire for Terminal Block. DIN-Rail Power Supply 240W (5A/48V DC) and above recommended Overview The L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations. L2+ 10/100/1000T 802.3at PoE + 1000X SFP Features: ►10/100/1000Mbps RJ45 Port (IEEE802.3af/at compliant) supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX ►DIP Switch supports Preventing Ring Network Management ►Support connecting USB-C port for easy console management, without the need to access the RS232 serial port at all ►9K Bytes Jumbo Frame; IEEE 802.3az Energy Efficient Ethernet (EEE) ►IP40 Aluminum Case and Supports DIN-Rail installation; -40°C to 80°C (-40°F to 176°F) operating temperature Ethernet Standards: IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX/FX; IEEE802.3ab 1000BASE-T; IEEE802.3z 1000BASE-X; IEEE802.3p QoS; IEEE802.1d Spanning Tree. PoE Standard: IEEE 802.3at Power over Ethernet Plus; IEEE 802.3af Power over Ethernet Optical Port 4 x 1000Base-X SFP Ethernet Port 8 x 10/100/1000BASE-T RJ45 PoE USB-C 1 x USB-C (for Console Management) Processing Type Store-and-Forward Packet Buffer Memory 12M bits Max Packet Length 9K Bytes Jumbo Frame Address Table Size 8K MAC Addresses Power Pin Assignment 4/5(+), 7/8(-) Power Consumption 8W Max (PoE in use＜240W) Backplane bandwidth 24Gbps Redundancy Protocols Support STP/RSTP/MSTP/ERPSv2, Link Aggregation Multicast Support Support IGMP Snooping V1/V2/V3，support GMRP, GVMP,802.1Q VLAN Support IEEE 802.1Q 4K VLAN，support QINQ, Double VLAN Diagnostic Maintenance Support port mirroring, Syslog, Ping Alarm Management Support 1 way relay alarm output, RMON, TRAP Advance Layer 2+ IPv4/IPv6 Management Software Features QOS: Flow-based redirection; Flow-based rate limiting; Flow-based packet filtering; 8*Output queues of each port; 802.1p/DSCP priority mapping; Diff-Serv QoS, Priority Mark/Remark; Queue Scheduling Algorithm (SP, WRR, SP+WRR) ACL: Port-based Issuing ACL; ACL based on port and VLAN; L2 to L4 packet filtering, matching first 80 bytes message; Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc Industrial Managed Ethernet Switch 8RJ45+4SFP PoE Switch Add to Cart 8RJ45+4SFP Switch Add to Cart 8RJ45+4SFP+2SFP+ Switch Add to Cart 8RJ45+4SFP+2SFP+ PoE Add to Cart 8RJ45+2SFP Switch Buying Options 8RJ45+2SFP PoE Switch Add to Cart Customer Reviews — — — — 4.4 out of 5 stars 28 3.5 out of 5 stars 11 Price $254.90$254.90 $223.90$223.90 $458.90$458.90 $428.90$428.90 $95.76$95.76 $121.90$121.90 PoE Total Power Output 240W(30W Per Port) / / 240W(30W Per Port) / 240W(30W Per Port) Active PoE Standard IEEE802.3af/at / / IEEE802.3af/at / IEEE802.3af/at Switch Capacity 24Gbps 24Gbps 64Gbps 64Gbps 20Gbps 20Gbps Power Input Redundant Power 48-57V DC Redundant Power 12-48V DC Redundant Power 12-48V DC Redundant Power 48-57V DC Redundant Power 12-48V DC Redundant Power 48-57V DC Power Comsuption <240W <8W <8W <240W <8W <240W Managed Type Layer 2+ Management Layer 2+ Management Layer 2+ Management Layer 2+ Management Simple Management Simple Management
