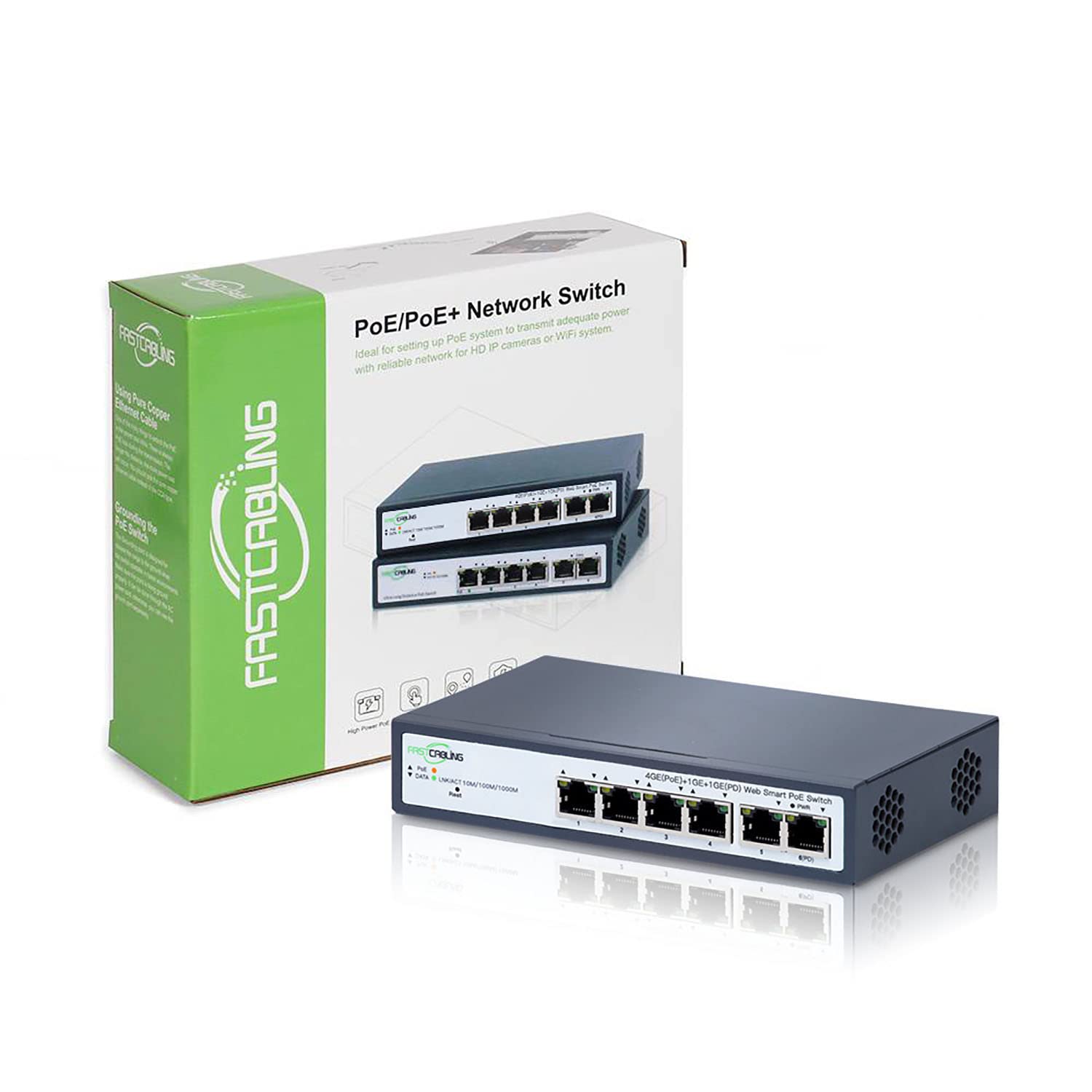

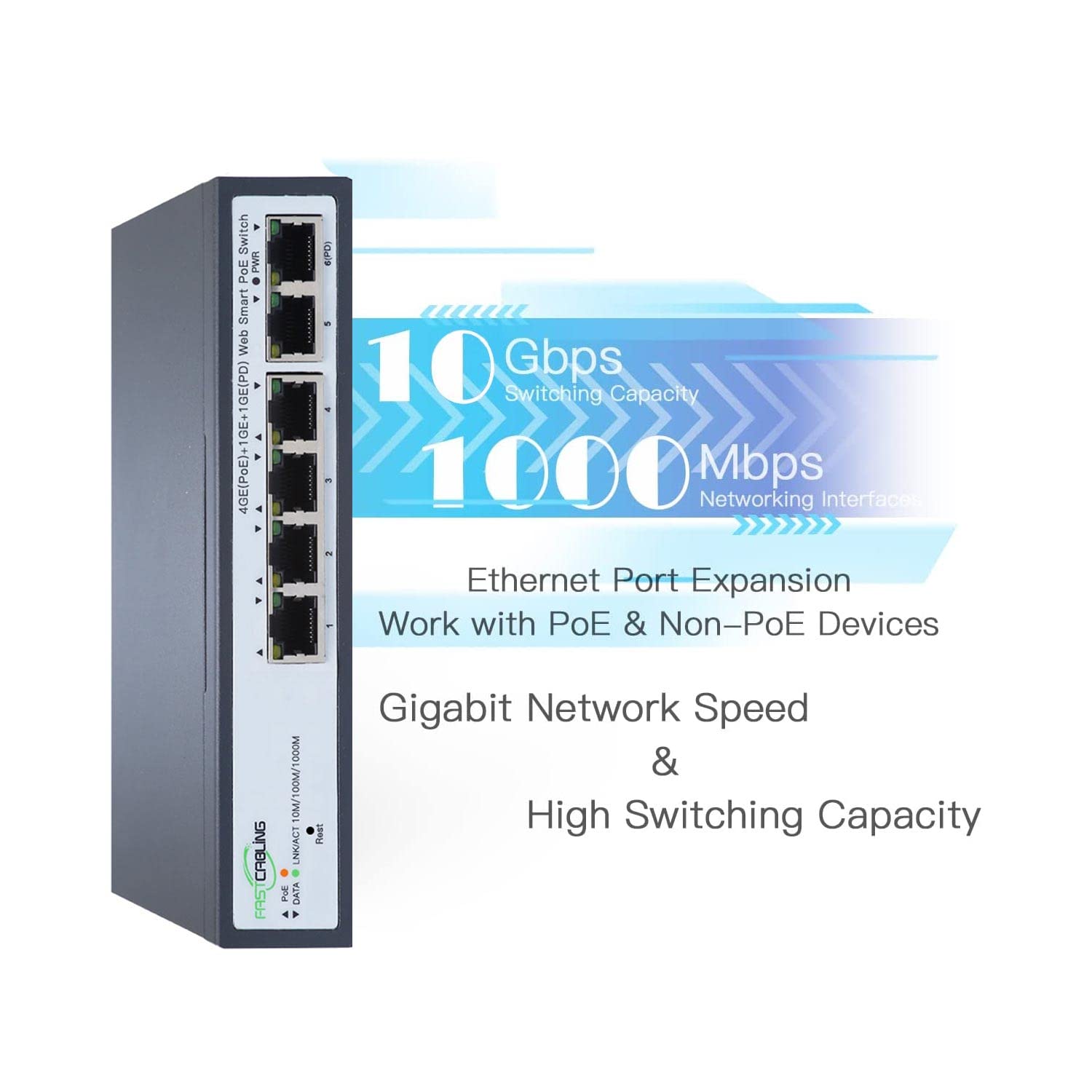

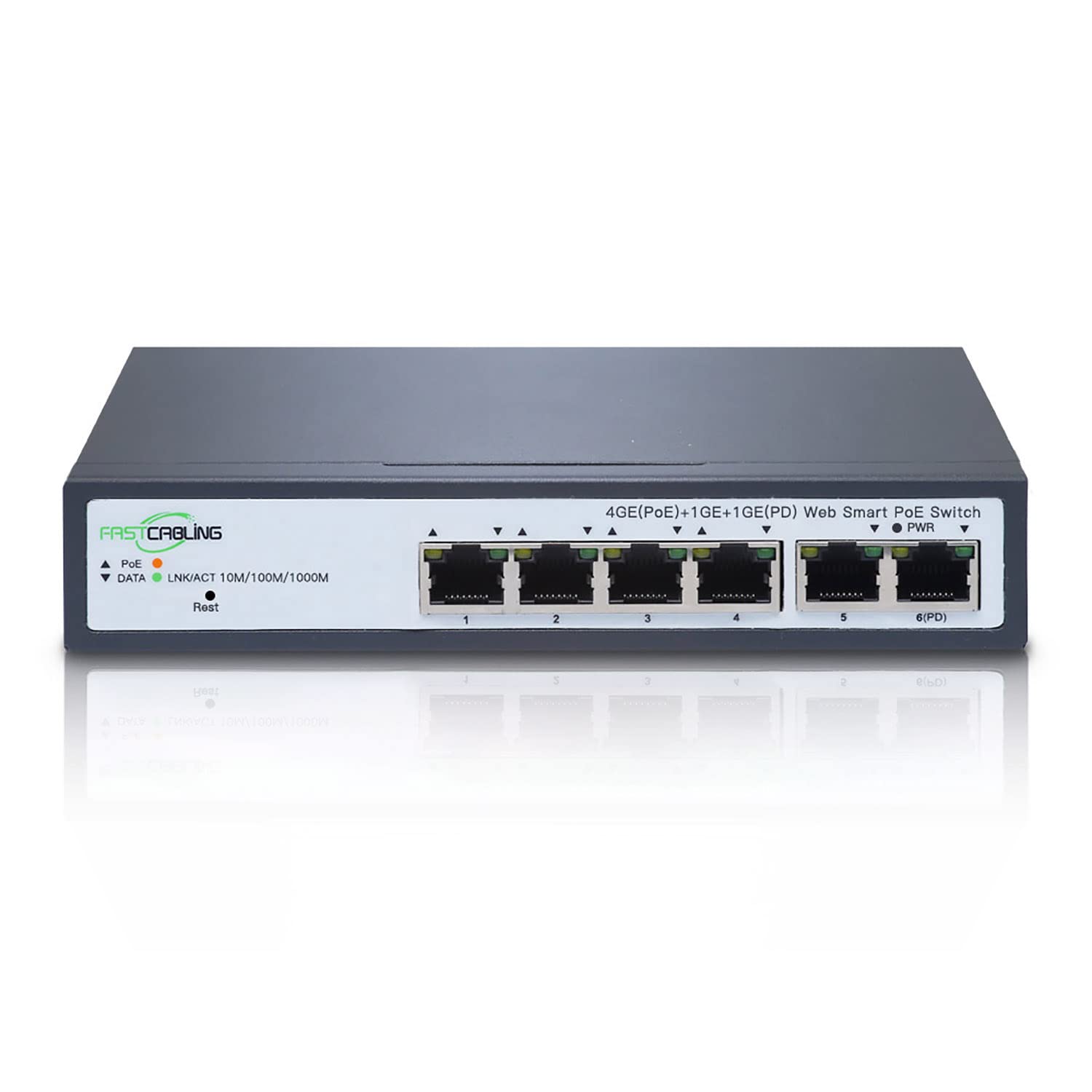

4 Port Managed PoE Passthrough Switch with VLAN & QoS - 60W IEEE 802.3at/bt Compatible - Expand Network Using Existing Cat5e/Cat6 Cables - Ideal for IP Cameras, VoIP Phones & Smart Office Setup
$49.3
$89.64
Safe 45%
4 Port Managed PoE Passthrough Switch with VLAN & QoS - 60W IEEE 802.3at/bt Compatible - Expand Network Using Existing Cat5e/Cat6 Cables - Ideal for IP Cameras, VoIP Phones & Smart Office Setup
$49.3
$89.64
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
16 people viewing this product right now!
SKU: 15519437
Guranteed safe checkout
Description

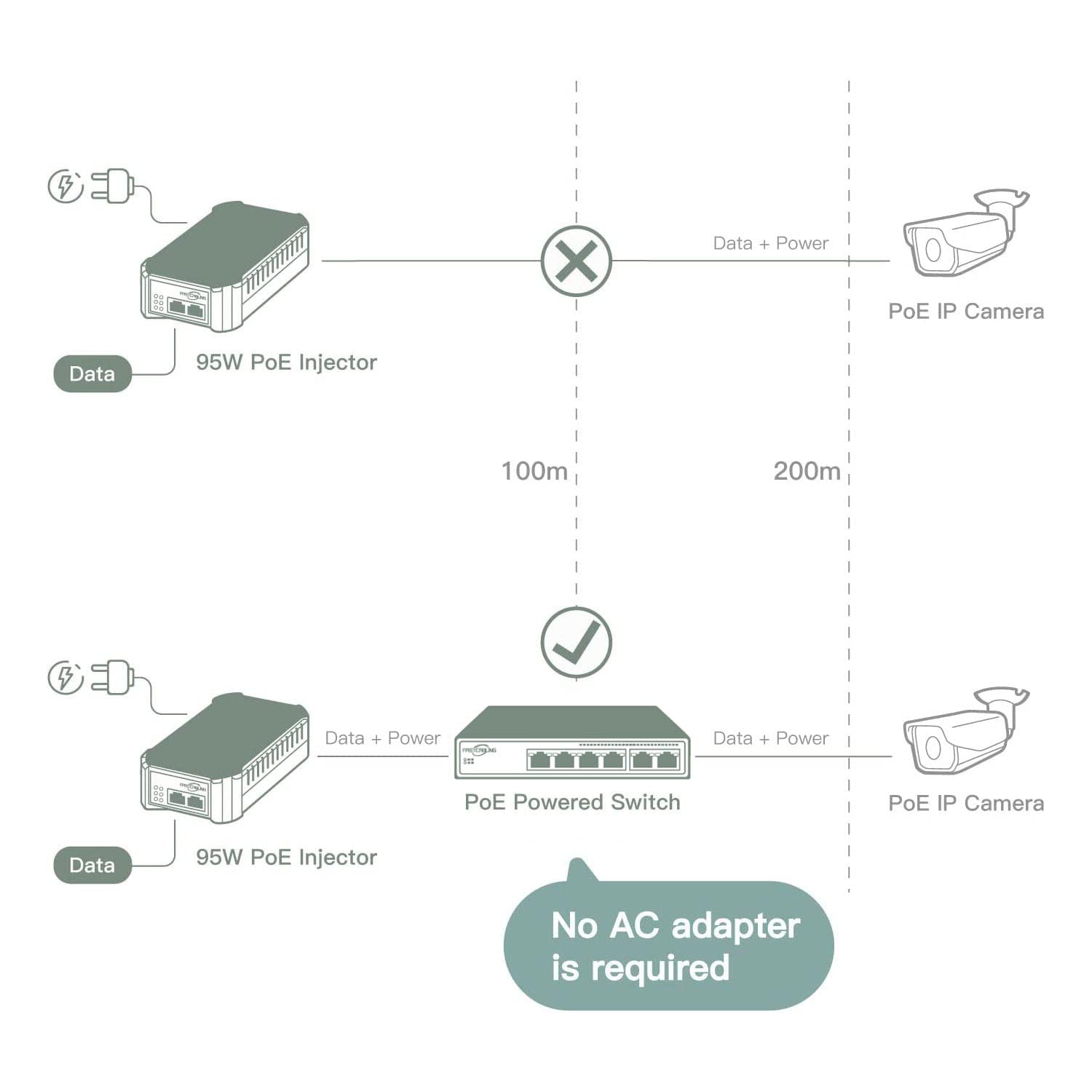

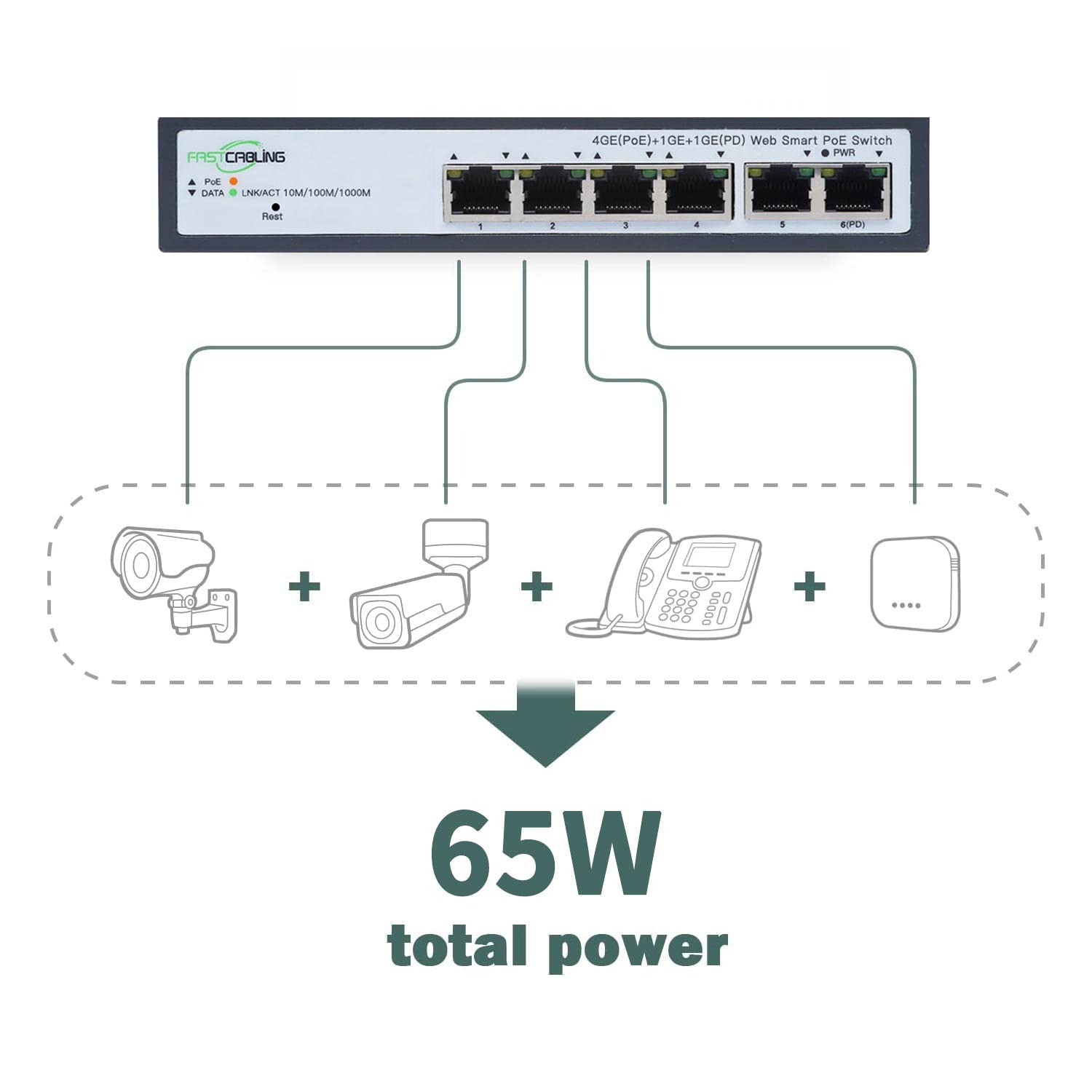

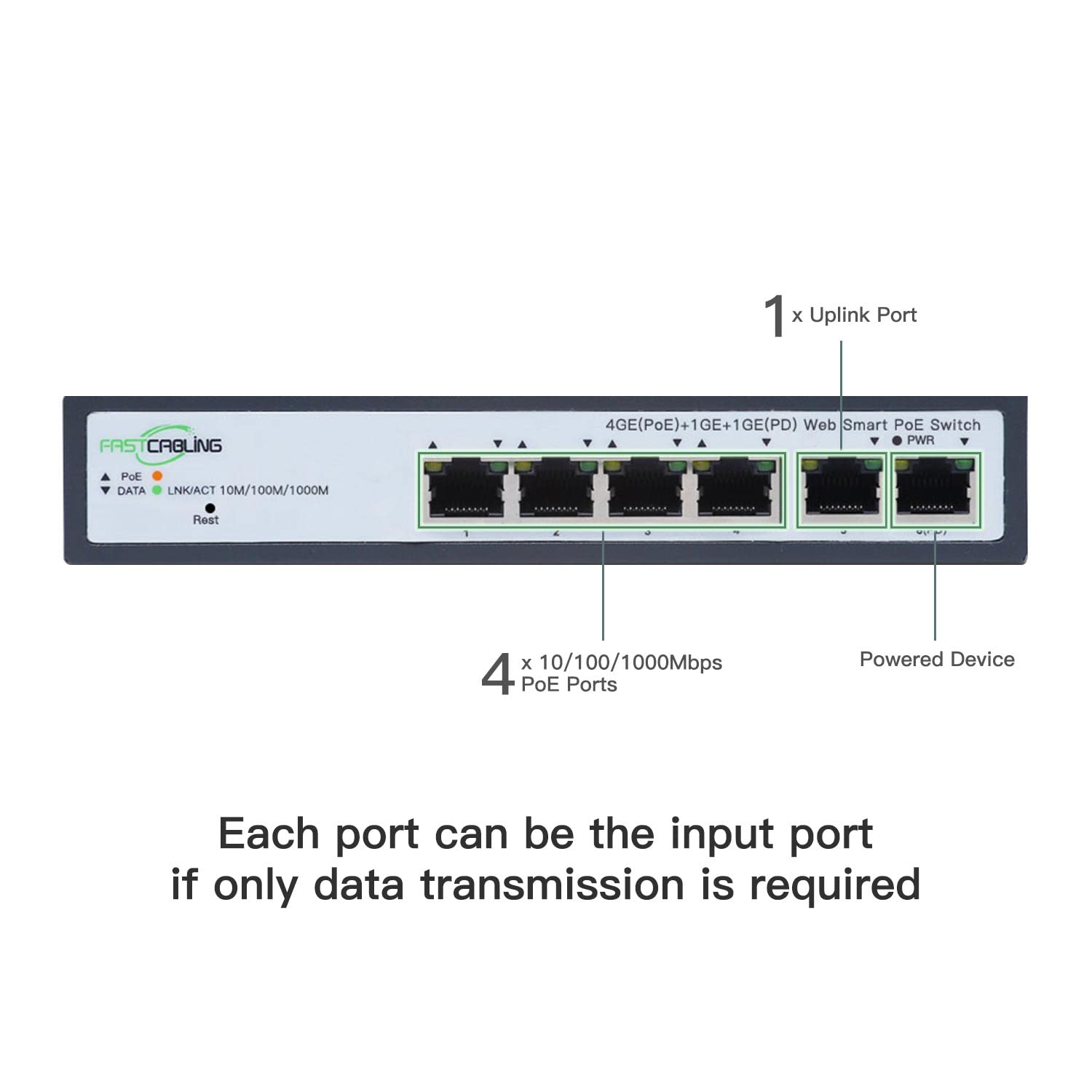

PoE Powered Switch is powerful device with high power budge to receive power and data from back-end PSU and pass through to front-end IP devices. Expanding network ports for multiple IP powered devices in an easy way. Working with Fastcabling 5720-74 PoE injector and 5543-45 PoE switch, the whole system will provide 65W remaining power. This switch is designed to supply PoE for IP devices deployed in the field where power source is difficult to acquire. Knowing the Power Budget There is always power loss inline. While you expand the PoE ports at the edge, you may consider the total power budgets. Working the 5720-74 90W PoE injector, the PoE powered switch can offer 65W total power for edge devices. Pick the pure copper cable instead of the CCA type will reduce the power loss. More than Expanding PoE Port The PoE powered switch not only can re-use the existed Ethernet cable to expand the POE ports at the edge, but also repeat the POE for another 328ft. The total POE distance is over 650ft far from the back-end PSU. Where the power goes, the PoE reach. It is simply plug and play, no additional power supply unit is required. Ground the Switch Technically, the PoE system doesn't require grounding as it is the DC48-DC55V lower voltage power system. However, grounding the switch still can help to introduce the surge to the ground. The copper cable may absorb the surge in the environment and send to both ends by damaging your devices accidentally. Technical Specifications Networking Interfaces (4) 10/100/1000 Mbps PoE Ports (1) 1 Gbps RJ45 PoE Pass through Ports Management Interface Plug & play Switching Capacity 10Gbps Power Method External or Pass through PoE Power Supply 48V-55VDC PoE Budget 65W LEDs Per Port PWR, LNK/ACT, PoE Surge Protection Different mode ±4 kv, Common mode ±6 kv PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) Operating Temperature 0°C ~ 40 °C 90W 802.3bt PoE Midspan Injector 30W Outdoor Industrial Waterproof PoE Injector Waterproof PoE Extender Outdoor Waterproof 802.3bt Gigabit PoE Extender 4 Port PoE Powered Switch Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 5.0 out of 5 stars 5 5.0 out of 5 stars 2 4.1 out of 5 stars 102 3.4 out of 5 stars 13 3.6 out of 5 stars 13 Price $128.85$128.85 $118.64$118.64 $69.99$69.99 $134.75$134.75 $89.64$89.64 PoE Standard 802.3af/at/bt 802.3af/at/bt 802.3af/at/bt 802.3af/at/bt 802.3af/at/bt PoE Budget 95W 30W 60W 60W 65W Network Speed 10/100/1000 Mbps 10/100/1000 Mbps 10/100/Mbps 10/100/1000 Mbps 10/100/1000 Mbps Surge Protection Differential mode ±4 kv, Common mode ±6 kv Differential mode ±4 kv, Common mode ±6 kv Differential mode±2KV, Common mode±4KV Differential mode±4KV, Common mode±6KV Differential mode ±4 kv, Common mode ±6 kv Wall Mount ✓ ✓ no data ✓ ✓ Waterproof Rating no data IP67 IP67 IP67 no data Operating Temperature -0°C ~ 40 °C -40°C ~ 75 °C -10°C ~ 55°C -40°C ~ 75 °C 0°C ~ 40 °C
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Reviews
*****
Verified Buyer
5
I had a fan-out problem where I only had a single POE+ ethernet cable going to a particular location and went from 4 devices to 5. There are very few POE+ pass-through switches with more than 4 ports (for good reason, described below), but the cameras only burn 5W each so I knew it would work if only I could find one. Got this little baby and it works great!Two side notes: First, DIN rail mounting, which is more industrial than consumer. Just get a cheap DIN rail to mount it to. Second, the ingress port was not clearly marked... which took all of ten seconds to figure out so no biggy there.These pass-through switches power their other ports from the POE+ on their ingress port. Usually you don't see more than a 1:4 fan-out, because the wattage constraints pile up very quickly when one tries to pass power through. Its great to be able to do though because satellite switches like this one don't need any additional power routed to them beyond that supplied by the ethernet cable from the primary POE+ switch... they just need the ethernet cabling.So I'll end with a word of warning and some data... this is an 803.bt switch, meaning that it supports the 100W spec instead of 803.at which is the 30W spec. Note that if your primary POE+ switch only does 803.at, it might not negotiate sufficient power for this 1:7 pass-through switch. There is a little handshake involved, so if the primary switch doesn't negotiate enough power, it won't work.My current primary switch is a NetGear GS308PP https://smile.amazon.com/dp/B082G2G2F8?ref=ppx_yo2_dt_b_product_details&th=1 . I had to flip its switch to the 130W setting to make it work with satellite pass-through switches (even lower powered ones). Though the power brick is only 90W, the switch setting worked. The whole system only pulls around 60W so all good. That's with 10 cameras, three 1:4 satellite pass-through switches, and this 1:7 satellite pass-through switch.Cameras typically burn 5 to 6W and WiFi base stations typically burn around 15W. Its good to have a Kill-a-watt meter on your primary switch so you can suss out the actual power consumption of your devices.Beyond that... plug'n play. It just works(!).-Matt
